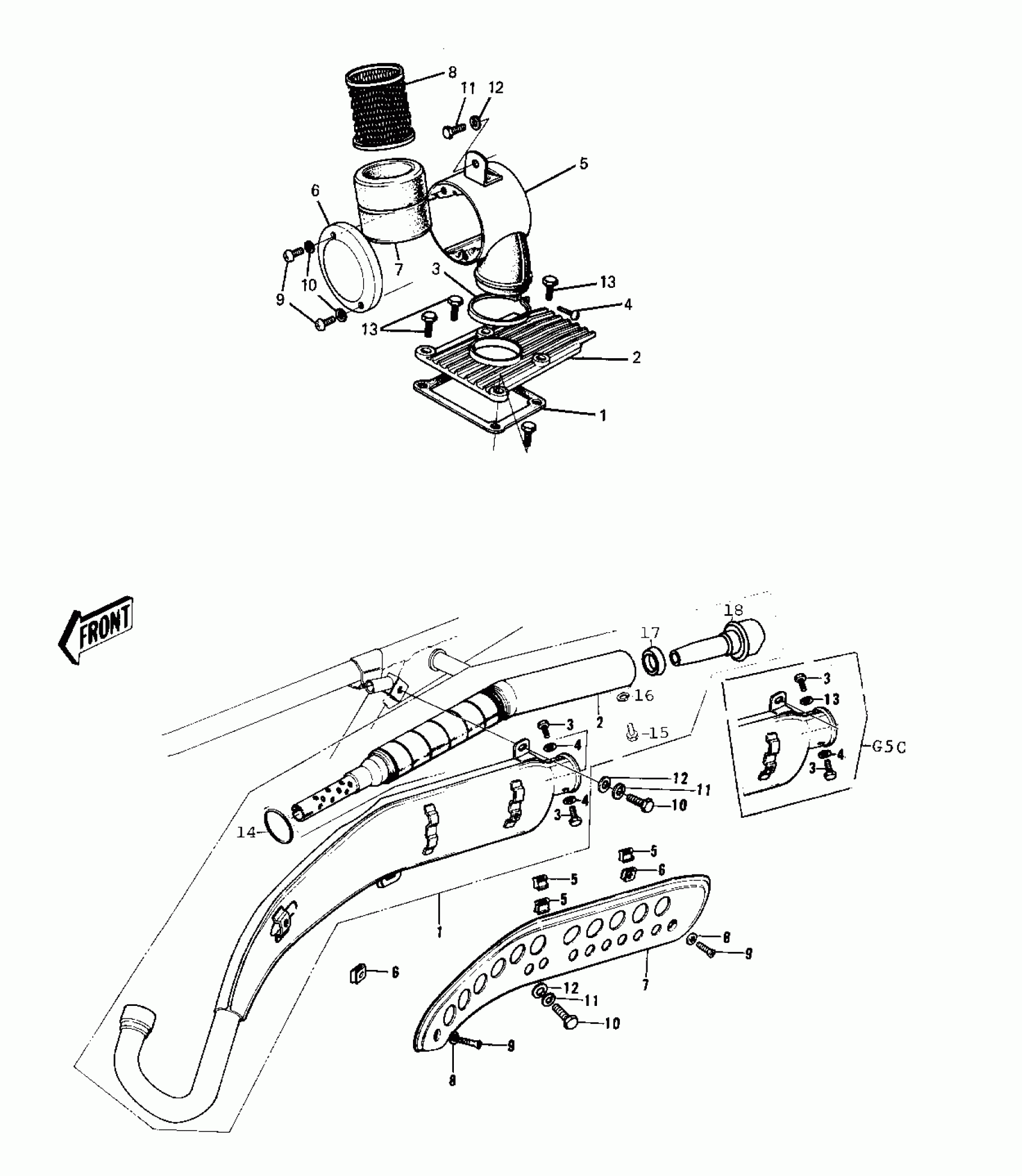

Kawasaki G5-C AIR CLEANER/MUFFLER ('74-'75 B/C) Diagram
#
Description
Price
1
GASKET INLET PIPE
11017-004
Unavailable
2
INLET PIPE,F.BLACK
11015-019-21
Unavailable
3
CLAMP
92037-068
Unavailable
4
SCREW PAN HEAD 6X35
220B0635
Unavailable
5~10
AIR CLEANER ASY,BLACK
11010-082-21
Unavailable
5
BODY-AIR CLEANER
11011-014
Unavailable
6
CAP,AIR CLEANER
11012-050
Unavailable
7
ELEMENT,AIR,CLNR
11013-029
Unavailable
8
HOLDER-CLNR. ELEMENT
11014-004
Unavailable
9
SCREW-PAN-CROS,6X8
220B0608
Unavailable
10
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
11
BOLT-UPSET,6X16
112G0616
Unavailable
12
WASHER SPRING 6MM
461F0600
Unavailable
13
BOLT-UPSET,6X20
112G0620
Unavailable
1
MUFFLER
18001-1603
Unavailable
2
BAFFLE-PIPE MUFFLER
18033-070
Unavailable
3
BOLT-UPSET,6X12
112G0612
Unavailable
4
WASHER-PLAIN
92022-183
Unavailable
5
INSULATOR
18065-007
Unavailable
6
INSULATOR-HEAT
18065-009
Unavailable
7
COVER,MUFFLER
18057-047
Unavailable
8
WASHER LOCK 6MM
463H0600
Unavailable
9
SCREW PAN HEAD 6X12
220E0612
Unavailable
10
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
11
WASHER SPRING 8MM
461F0800
Unavailable
12
WASHER PLAIN 8MM
410B0800
Unavailable
13
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
14
'0' RING
92093-1031
Unavailable
15
BOLT-UPSET,6X12
112G0612
Unavailable
16
WASHER LOCK 6MM
464H0600
Unavailable
17
BUSHING,RUBBER
92093-1009
Unavailable
18
ARRESTOR CAP
59156-1005
Unavailable
