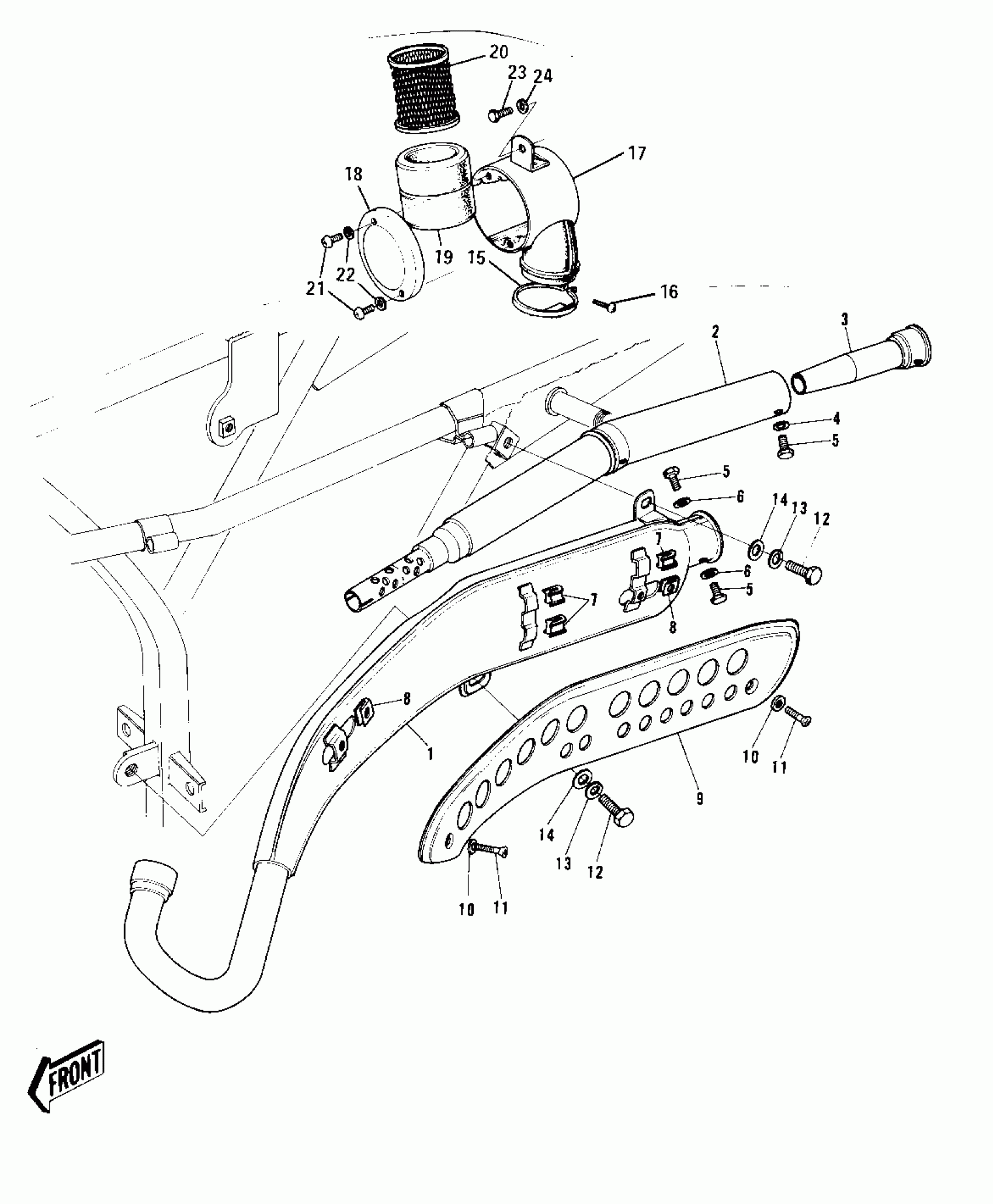

Kawasaki G5-C AIR CLEANER/MUFFLER ('72-'73 G5-A) Diagram
#
Description
Price
1~6
MUFFLER ASSY
18001-068
Unavailable
2~5
BAFFLE TUBE
18033-054
Unavailable
3
TAIL PIECE
18048-015
Unavailable
4
WASHER LOCK 6MM
463H0600
Unavailable
5
BOLT-UPSET,6X12
112G0612
Unavailable
5
BOLT-UPSET,6X12
112G0612
Unavailable
6
WASHER-PLAIN
92022-183
Unavailable
7
INSULATOR
18065-007
Unavailable
8
INSULATOR-HEAT
18065-009
Unavailable
9
COVER,MUFFLER
18057-047
Unavailable
10
WASHER LOCK 6MM
463H0600
Unavailable
11
SCREW PAN HEAD 6X12
220E0612
Unavailable
12
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
13
WASHER SPRING 8MM
461F0800
Unavailable
14
WASHER PLAIN 8MM
410B0800
Unavailable
15
CLAMP
92037-068
Unavailable
16
SCREW PAN HEAD 6X35
220B0635
Unavailable
17~24
AIR CLEANER ASY,BLACK
11010-082-21
Unavailable
17~24
AIR CLEANER ASY,BLACK
11010-082-21
Unavailable
17
BODY-AIR CLEANER
11011-014
Unavailable
18
CAP,AIR CLEANER
11012-050
Unavailable
18
CAP,AIR CLEANER
11012-050
Unavailable
19
ELEMENT,AIR,CLNR
11013-029
Unavailable
20
HOLDER-CLNR. ELEMENT
11014-004
Unavailable
21
SCREW-PAN-CROS,6X8
220B0608
Unavailable
22
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
23
BOLT-UPSET,6X16
112G0616
Unavailable
23
BOLT-UPSET,6X16
112G0616
Unavailable
24
WASHER SPRING 6MM
461F0600
Unavailable
