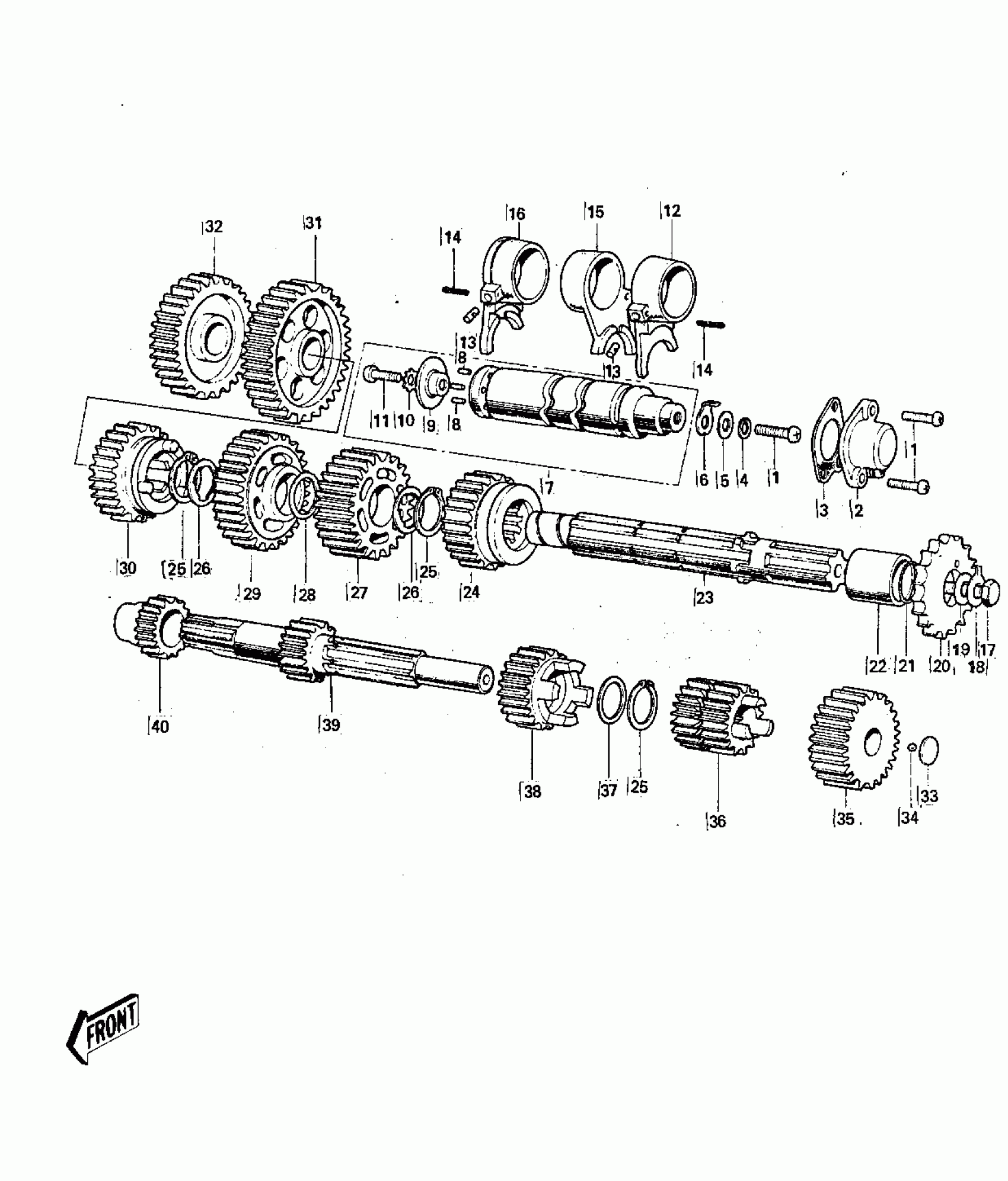

Kawasaki G3SS-D TRANSMISSION/CHANGE DRUM ('74-'75) Diagram
#
1
SCREW-PAN-CROS,6X16
220B0616
$2.84
2
SWITCH,NEUTRAL
13151-1001
$14.51
3
GASKET,NEUTRAL SWITCH
13146-002
$4.35
4
WASHER SPRING 6MM
461F0600
$0.69
5
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
6
ROTOR,TOP & NEUTRAL
21007-1003
$7.62
7
DRUM ASSY-GEAR CHANGE
13239-005
Unavailable
8
PIN,DOWEL,4X15.8
92042-014
$0.43
9
PLATE CHANGE DRUM PIN
13142-008
Unavailable
10
WASHER LOCK 6MM
464H0600
Unavailable
11
SCREW PAN HEAD 6X12
220B0612
Unavailable
12
FORK SELECTOR 3RD
13140-009
Unavailable
13
PIN SELECT FORK GUIDE
92043-005
Unavailable
14
PIN-COTTER,3.0X20
550D3020
$1.78
15
FORK SELECTOR 4TH-TOP
13140-017
Unavailable
16
FORK SELECTOR LOW-2ND
13140-010
Unavailable
17
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
18
WASHER,CLAW,8X22X1.2
92030-012
$5.23
19
WASHER,T=2.3
92022-266
$5.23
20
SPROCKET-OUTPUT,14T
13144-1058
Unavailable
20
ENGINE SPROCKET,13T
13144-053
Unavailable
20
SPROCKET-OUTPUT,15T
13144-054
Unavailable
21
RING-O,17.5X1.5
92055-022
$6.22
22
COLLAR,ENG NPROCKET
92027-179
$5.87
23
SHAFT-TRANSMISSION OUTPUT
13128-021
Unavailable
24
TOP GEAR OUTPUT SHAFT
13137-012
Unavailable
25
RING-SNAP,16MM
92033-014
$5.17
26
WASHER,TOOTHED,18.5X23X1.2
92024-030
$6.15
27
3RD GEAR OUTPUT SHAFT
13133-005
Unavailable
28
WASHER,THRUST,18.5X23X1.6
92022-146
$8.21
29
2ND GEAR OUTPUT SHAFT
13131-008
Unavailable
30
GEAR,OUTPUT 4TH,24T
13129-1708
$92.35
31
GEAR,OUTPUT LOW,35T
13129-010
$87.77
32
GEAR-SPUR,KICKSTARTER.IDLE,30T
13073-004
$74.27
33
WASHER,THRUST
92022-115
$4.39
34
BALL-STEEL,7/32"
600A0700
$1.64
35
GEAR,INPUT TOP,24T
13129-1927
Unavailable
36
2ND&3RD GEAR,DRIVE
13129-1052
Unavailable
37
WASHER,18.5X23X1.2
92022-118
$4.69
38
4TH GEAR,DRIVE
13129-1053
Unavailable
39
SHAFT,DRIVE
13127-032
Unavailable
40
GEAR-SPUR,KICKSTARTER PINION
13075-004
$52.38
