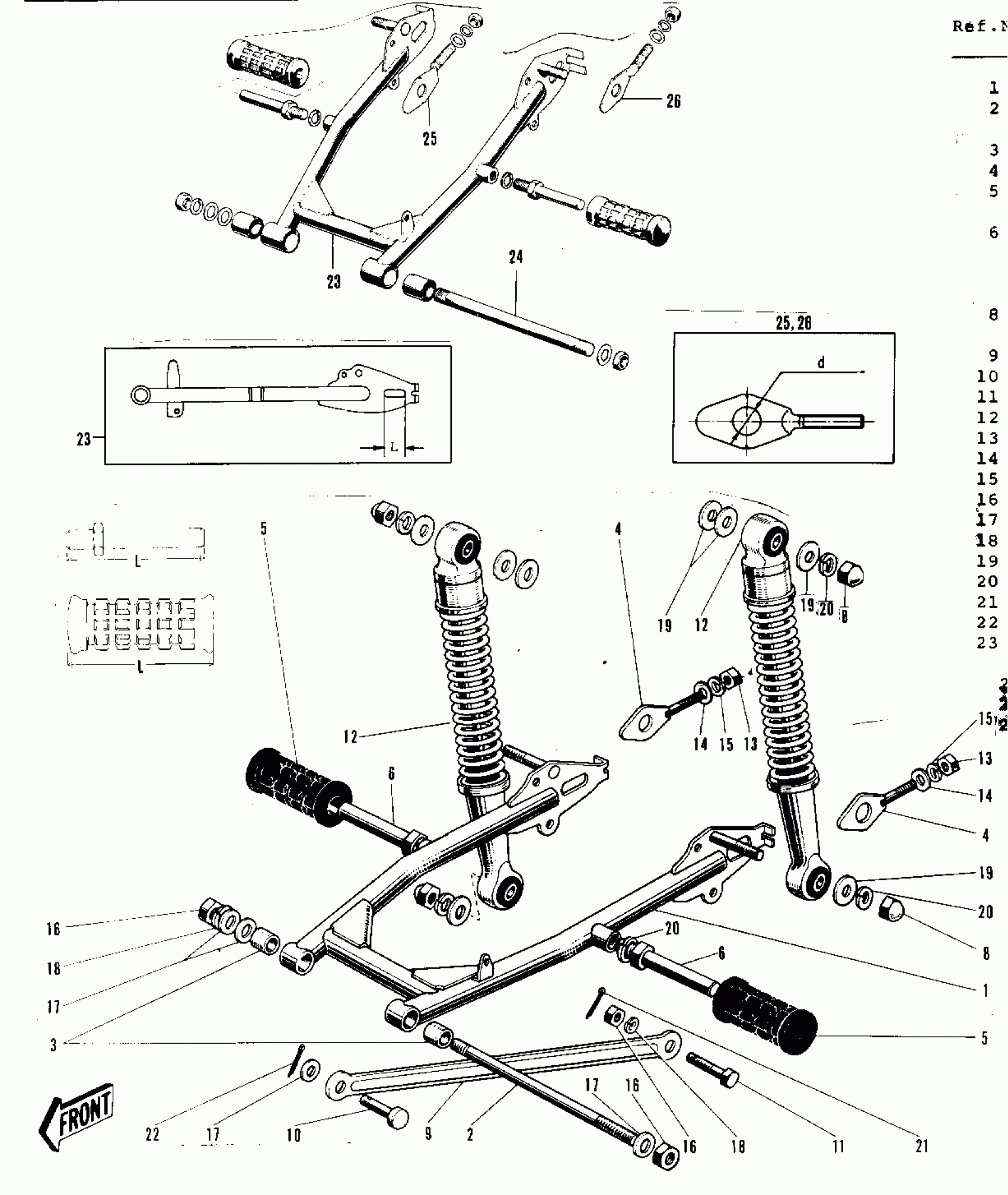

Kawasaki G3SS-D SWING ARM/SHOCK ABSORBERS ('69-'73) Diagram
#
Description
Price
1
ARM,SWING
33001-023
Unavailable
2
SHAFT SWING ARM PIVOT
33032-008
Unavailable
3
BUSH SWING ARM SHAFT
92092-006
$17.75
4
ADJUSTER CHAIN
33040-008
$10.48
5
RUBBER REAR FOOTREST
92076-016
Unavailable
6
FOOTREST REAR
34029-004
$8.15
6
BAR REAR FOOREST
34029-003
Unavailable
8
NUT SHOCK ABSBR FIT
92020-005
Unavailable
8
NUT,CAP,12MM
92020-014
$9.45
9
TORQUE LINK REAR BRK
43007-007
Unavailable
10
PIN,SPRING,10X12
43009-001
$7.40
11
BOLT,10X32
92003-003
$6.22
12
SHOCK ABSBR RR
45014-038
Unavailable
13
NUT 6MM
311B0600
$0.93
14
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
15
WASHER SPRING 6MM
461F0600
$0.69
16
NUT-HEX-FINE,10MM
314B1000
$0.67
17
WASHER PLAIN 10MM
410B1000
$0.58
18
WASHER SPRING 10MM
461F1000
$0.67
19
WASHER PLAIN 12MM
411B1200
$0.93
20
WASHER-SPRING,12MM
461F1200
$0.96
21
PIN COTTER 2.0X15
550D2015
$1.04
22
PIN-COTTER,2.5X20
550D2520
$1.36
23
SWING ARM
33001-022
$128.37
24
SHAFT-SWING ARM PIVOT
33032-030
Unavailable
25
ADJUSTER CHAIN
33040-008
$10.48
26
ADJUSTER-CHAIN,L.H
33040-010
$9.91
