Description

Price

1

COVER,L.H SIDE,C.LIME

36001-045-1Y

$48.69

1

COVER,L.H. SIDE,H.RED

36001-045-2K

$58.73

2

GROMMET-R.H SIDE COV

92071-065

$7.73

3

EMBLEM,SIDE COVER

56018-162

Unavailable

3-1

EMBLEM,SIDE COVER

56018-178

$19.51

4

NUT,PUSH,3MM

92018-005

$2.76

5

TANK,OIL

52001-042

$47.29

6

GAUGE,OIL LEVEL

52015-002

Unavailable

7

RING-O,20MM

92055-051

$5.59

8

CAP-OIL TANK

52003-019

$9.73

9

GASKET-OIL TANK CAP

92065-085

$4.81

10

SCREW PAN HEAD 6X18

220B0618

$2.74

11

WASHER SPRING 6MM

461F0600

Unavailable

12

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

13

PIPE-OIL

92059-072

$38.33

14

CLAMP,TUBE

92037-010

$3.92

15

TUBE-PVC,5X1000

700Q051000

Unavailable

16

COVER,R.H SIDE,LIME

36007-038-1Q

$15.83

16

COVER,RH SIDE,H.RED

36007-038-2K

$42.27

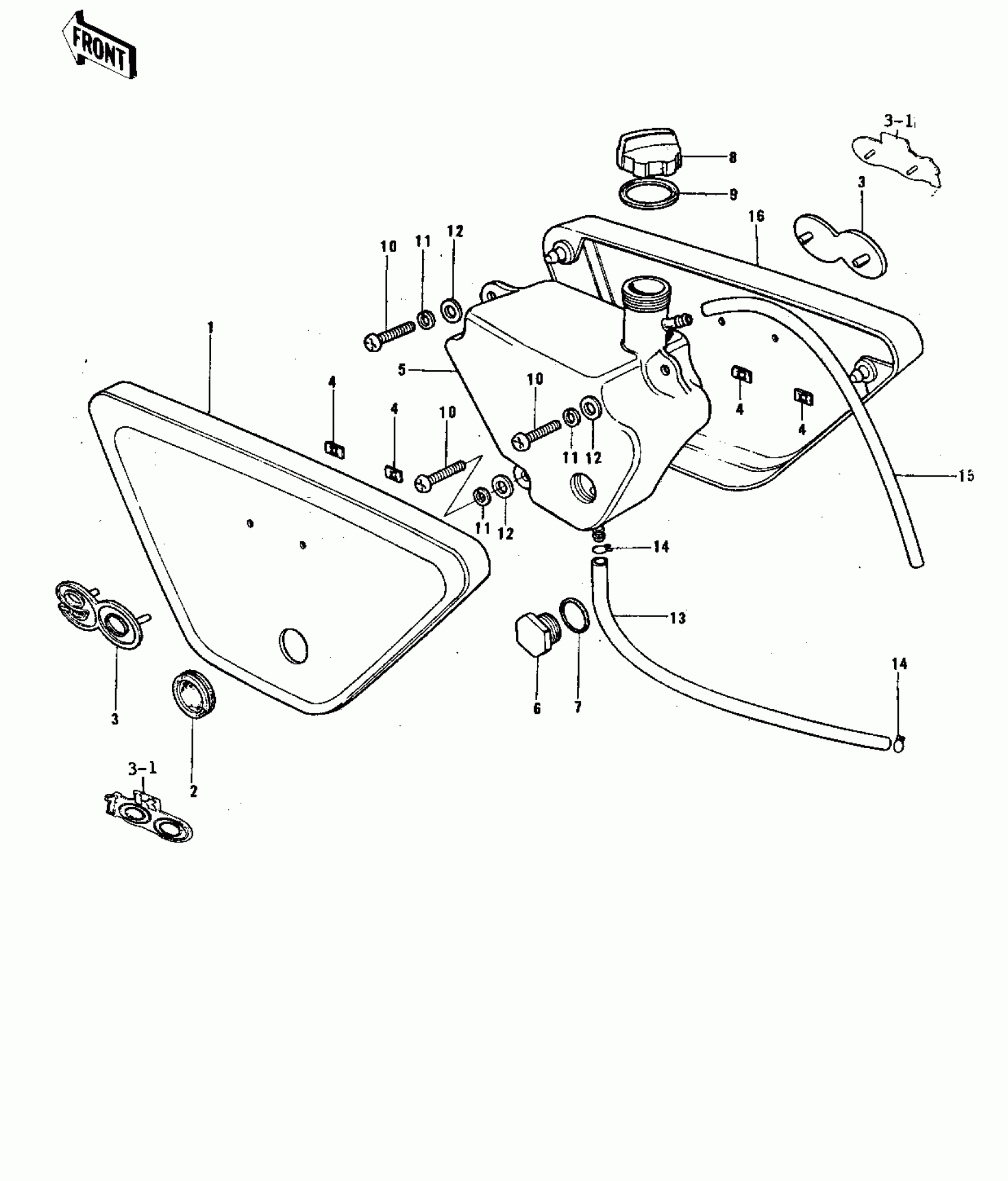

Kawasaki G3SS-D SIDE COVERS/OIL TANK ('74-'75) Diagram

COVER,L.H SIDE,C.LIME

COVER,L.H. SIDE,H.RED

GROMMET-R.H SIDE COV

EMBLEM,SIDE COVER

EMBLEM,SIDE COVER

NUT,PUSH,3MM

TANK,OIL

GAUGE,OIL LEVEL

RING-O,20MM

CAP-OIL TANK

GASKET-OIL TANK CAP

SCREW PAN HEAD 6X18

WASHER SPRING 6MM

WASHER-PLAIN-SMALL,6MM

PIPE-OIL

CLAMP,TUBE

TUBE-PVC,5X1000

COVER,R.H SIDE,LIME

COVER,RH SIDE,H.RED
