Description

Price

1

SEAT-ASSY,DUAL

53001-099

Unavailable

2

HINGE,FRONT

53009-024

$6.05

3

HINGE,REAR

53009-023

$4.63

4

BOLT-UPSET 6X14

112B0614

Unavailable

4

BOLT-UPSET 6X14

112B0614

Unavailable

5

WASHER SPRING 6MM

461F0600

$0.69

6

GROMMET

92071-056

$4.26

7

DAMPER,DUAL SEAT

92075-023

$4.92

8

CASE,MANUAL

32099-011

$16.66

9

SCREW PAN HEAD 4X8

220B0408

$0.67

10

PIN,6X11

92043-092

$4.69

11

COTTER PIN

92041-003

$5.72

12

HOOK-SEAT

53008-017

$3.28

13

SPRING,HOOK

53012-011

$3.46

14

PIN,DUAL SEAT PIVOT

92043-106

$3.05

15

BAND-CHAIN OILER TANK

92072-039

$18.15

16

CASE-CHAIN

36014-052

Unavailable

17

SCREW PAN HEAD 5X8

220B0508

$0.46

18

WASHER SPRING 5MM

461F0500

$0.69

19

WASHER PLAIN 5MM

410B0500

$0.46

20

SCREW-PAN-CROS

220B0512

$0.47

21

* N.L.A.* (Canada)

695W43104

$9.50

22

JOINT-CHAIN,EK428-G

92058-1014

$6.60

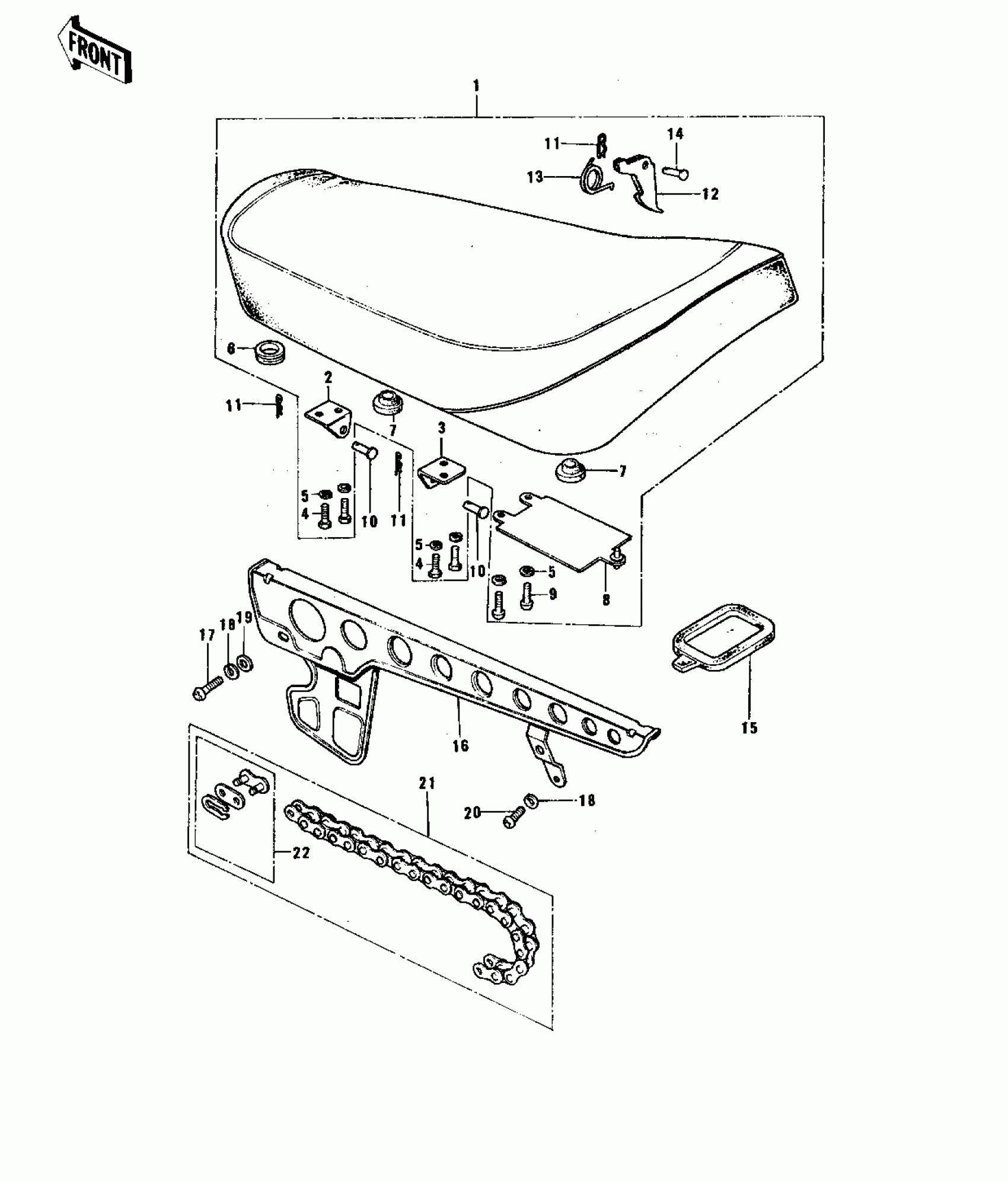

Kawasaki G3SS-D SEAT/CHAIN COVER/CHAIN ('74-'75) Diagram

SEAT-ASSY,DUAL

HINGE,FRONT

HINGE,REAR

BOLT-UPSET 6X14

BOLT-UPSET 6X14

WASHER SPRING 6MM

GROMMET

DAMPER,DUAL SEAT

CASE,MANUAL

SCREW PAN HEAD 4X8

PIN,6X11

COTTER PIN

HOOK-SEAT

SPRING,HOOK

PIN,DUAL SEAT PIVOT

BAND-CHAIN OILER TANK

CASE-CHAIN

SCREW PAN HEAD 5X8

WASHER SPRING 5MM

WASHER PLAIN 5MM

SCREW-PAN-CROS

*** N.L.A.*** (Canada)

JOINT-CHAIN,EK428-G

* N.L.A.* (Canada)
