Partiron

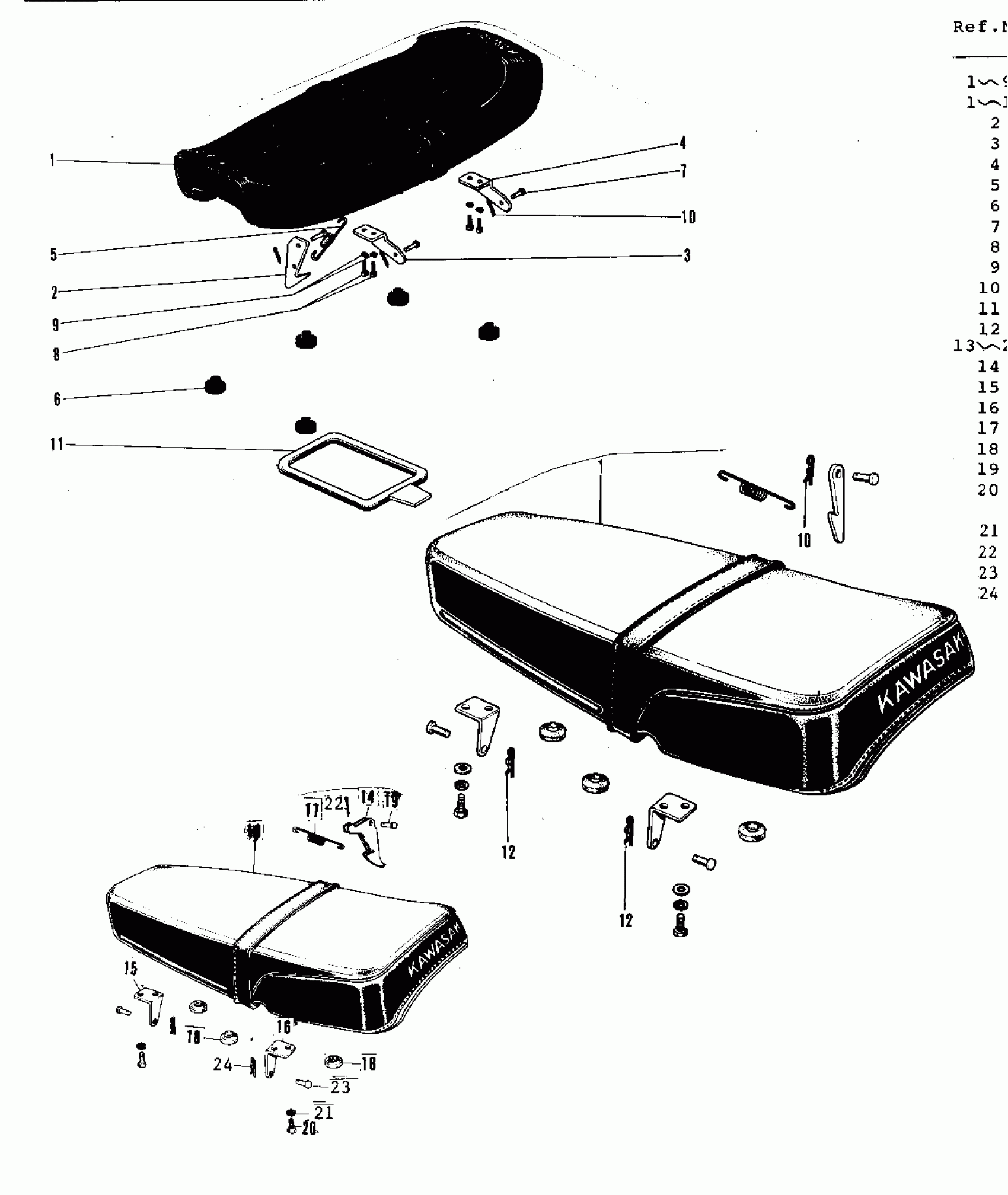

Kawasaki G3SS-D SEAT ('69-'73) Diagram

#

Description
Price

1~9

SEAT,DUAL

53001-045

$109.68

1~10

SEAT-ASSY,DUAL

53001-067

Unavailable

2

HOOK

53008-004

$4.56

3

HINGE A

53009-006

$6.54

4

HINGE B

53009-008

$6.54

5

SPRING,HOOK

53012-013

Unavailable

6

DAMPER,DUAL SEAT

92075-023

$3.74

7

PIN DUAL SEAT PIVOT

53011-001

$4.92

8

BOLT-UPSET 6X14

112B0614

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

PIN COTTER 2.0X15

550D2015

Unavailable

11

BAND TOOL

92072-010

Unavailable

12

PIN-SNAP,8MM

554A0800

Unavailable

21

WASHER SPRING 6MM

461F0600

Unavailable

22

PIN COTTER 2.0X15

550D2015

Unavailable

23

PIN DUAL SEAT PIVOT

53011-001

$4.92
