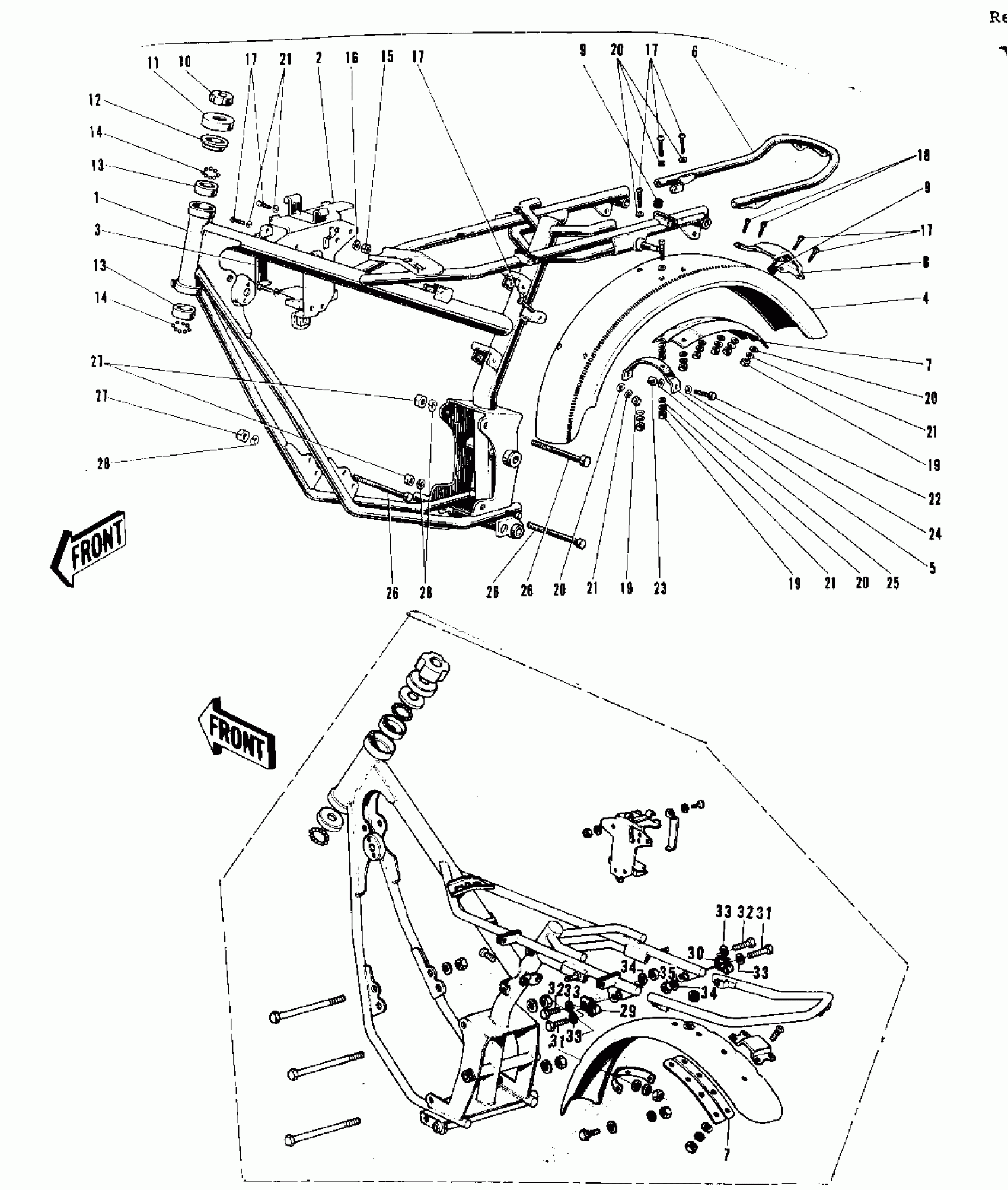

Kawasaki G3SS-D FRAME/FRAME FITTINGS ('69-'73) Diagram

#

Description
Price

1

FRAME

32002-017

$269.10

2

BRACKET BATTERY

32093-004

Unavailable

3

BAND BATTERY

32100-002

Unavailable

4

FENDER-RR

35022-037

$69.36

5

BRACKET REAR FENDER

35025-002

$7.81

6

STAY REAR FENDER

35032-015

$25.15

7

GUSSET-REAR FENDER

35034-016

$10.93

8

BRACKET TAIL LAMP

35031-001

Unavailable

9

GROMMET,10MM

92071-019

$2.97

10

NUT STEERING STEM LCK

92090-006

$14.24

11

CAP,STEERING STEM

46098-004

$5.37

12

RACE,UPPER BEARING

92047-005

$11.59

13

RACE,BEARING

92048-004

$11.03

14

BALL-STEEL,3/16

600A0600

$1.02

15

NUT-HEX

311B0500

$0.47

15

NUT-HEX

311B0500

$0.47

16

WASHER SPRING 5MM

461F0500

Unavailable

17

SCREW PAN HEAD 6X12

220B0612

Unavailable

18

SCREW-PAN-CROS,6X14

220B0614

$1.14

19

NUT 6MM

311B0600

Unavailable

20

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

21

WASHER SPRING 6MM

461F0600

Unavailable

22

BOLT HEX HEAD 8X40

116B0840

Unavailable

23

NUT,8MM

311B0800

Unavailable

24

WASHER PLAIN 8MM

410B0800

Unavailable

25

WASHER SPRING 8MM

461F0800

Unavailable

26

BOLT,FLANGED,10X115

92001-1603

$10.25

27

NUT-HEX-FINE,10MM

314B1000

Unavailable

28

WASHER SPRING 10MM

461F1000

Unavailable
