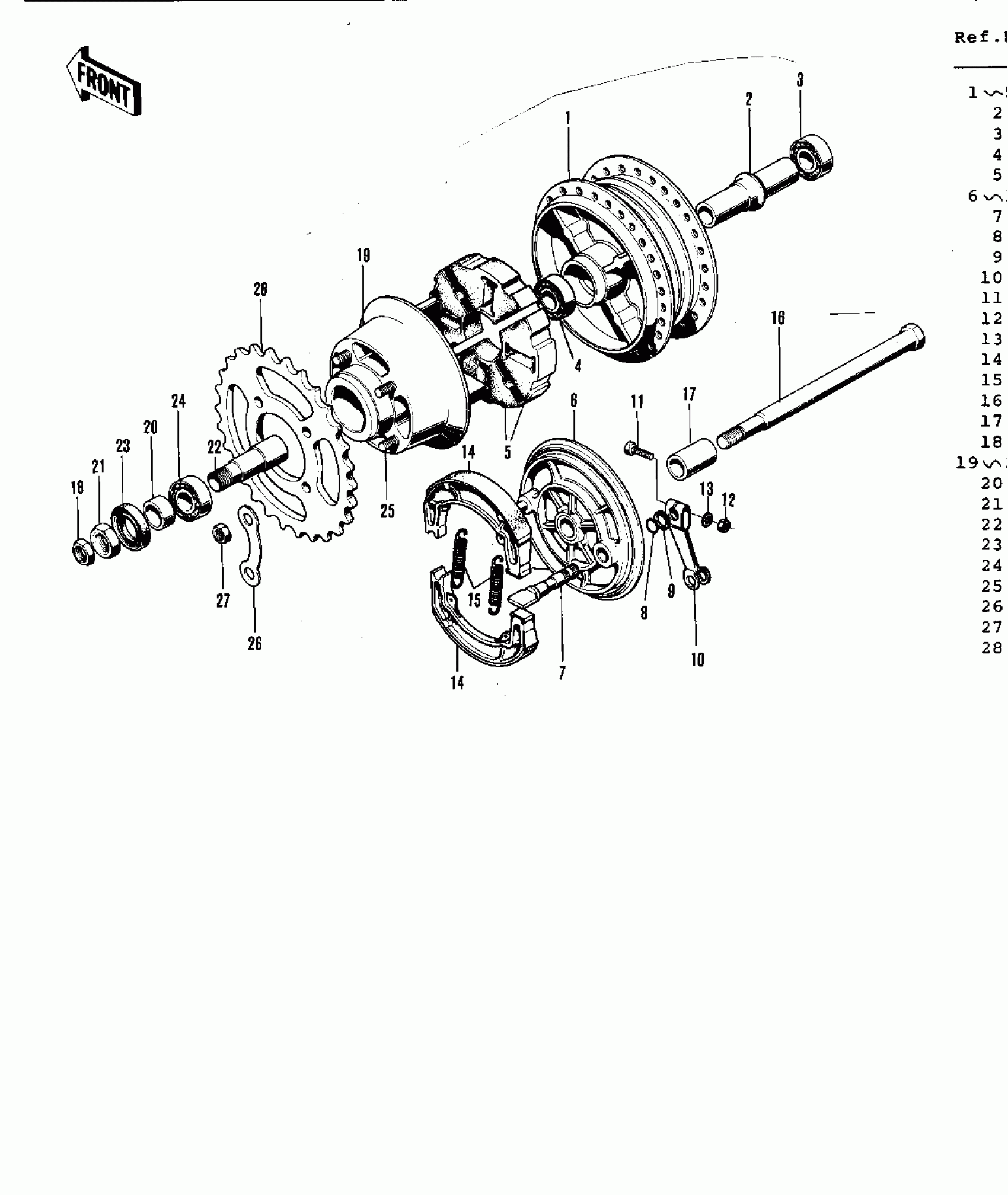

Kawasaki G3SS-D REAR HUB/BRAKE (G3TR/A) ('69-'73) Diagram

#

Description
Price

1~5

DRUM ASSY,RR BRK,BUFF

42005-031-80

$211.80

2

COLLAR,L=58

42010-005

$12.76

3

BEARING BALL #6301Z

601B6301Z

Unavailable

4

BEARING-BALL,#6201C3

601B6201

$10.98

5

DAMPER,RR HUB SHOCK

42014-016

$18.41

6~15

PANEL ASSY-REAR BRAKE

42006-014

$70.19

7

CAM-BRAKE

41050-018

$21.27

8

RING-O,BRAKE CAM

92055-004

$4.80

9

WASHER BRAKE CAM SHT

41052-001

Unavailable

10

LEVER,FRONT BRAKE CAM

41053-002

Unavailable

11

BOLT-UPSET

112G0630

Unavailable

12

NUT 6MM

311B0600

Unavailable

13

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

14

SHOE-BRAKE

41048-1085

$22.53

15

SPRING,BRAKE SHOE

92081-1766

$8.03

16

AXLE,12X215

41068-1109

Unavailable

17

COLLAR-REAR HUB R.H

42032-002

Unavailable

18

NUT,10MM

42045-005

$7.98

19~24

COUPLING ASSY RR HUB

42033-011

$130.86

20

COLLAR,17X25X12.5

42037-003

$13.71

21

NUT,16MM

42045-004

$8.60

22

SLEEVE-RR HUB COUPLNG

42036-002

$31.74

23

SEAL-OIL,COUPLING

92052-003

$13.38

24

BEARING-BALL,#6203C3

601B6203

$14.12

25

BOLT,HUB SPROCKET,10X36

92001-082

Unavailable

26

WASHER,LOCK

92088-011

$5.11

27

NUT-HEX-FINE,10MM

315B1000

Unavailable

28

REAR SPROCKET 42T

42041-076

Unavailable
