Description

Price

1

PANEL ASSY,REAR BRAK

42006-043

$104.18

2

BOLT-UPSET

112G0630

$1.36

2

BOLT-UPSET

112G0630

Unavailable

3

LEVER,FRONT BRAKE CAM

41053-002

Unavailable

4

NUT,6MM

41072-007

$3.92

5

LABEL,FR BRK SHOE

41084-002

$2.29

6

INDICATOR,BRAKE SHOE

41085-003

$14.51

7

RING-O,BRAKE CAM

92055-004

$4.80

8

CAM SHAFT,FRONT BRAKE

41050-012

$19.60

9

SHOE-BRAKE

41048-1085

$22.53

10

SPRING,BRAKE SHOE

92081-1766

$8.03

11

DRUM ASSY REAR BRAKE

42005-006

$144.38

12

BEARING BALL #6301Z

601B6301Z

$14.46

13

SPACER RR HUB BEARING

42010-003

Unavailable

14

BEARING BALL #6301

601B6301

$12.36

15

OIL SEAL RR BRK DRUM

92052-001

Unavailable

16

BOLT REAR SPROCKET

92001-021

$5.59

17

REAR SPROCKET 37T

42041-020

Unavailable

17

REAR SPROCKET 42T

42041-051

Unavailable

18

WASHER RR SPRCKT LOCK

92088-003

Unavailable

19

NUT,8MM

311B0800

$0.67

20

AXLE,12X206

41068-1091

Unavailable

21

WASHER-PLAIN-SMALL,12MM

410B1200

$0.70

22

COLLAR,12.2X22X28.5

42032-006

Unavailable

23

COLLAR REAR HUB L.H

42032-005

Unavailable

24

NUT-HEX-FINE

314B1200

$2.87

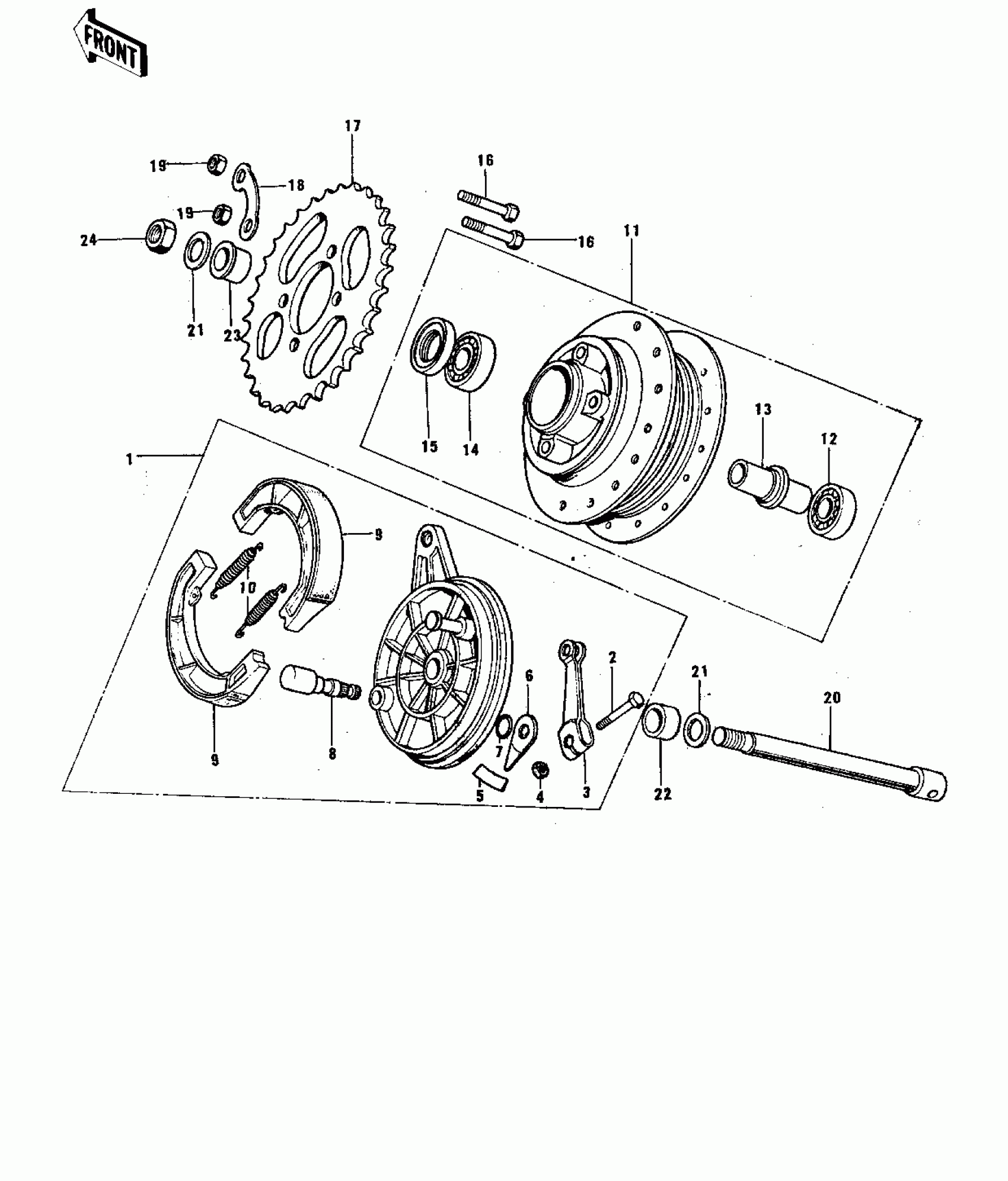

Kawasaki G3SS-D REAR HUB/BRAKE ('74-'75) Diagram

PANEL ASSY,REAR BRAK

BOLT-UPSET

BOLT-UPSET

LEVER,FRONT BRAKE CAM

NUT,6MM

LABEL,FR BRK SHOE

INDICATOR,BRAKE SHOE

RING-O,BRAKE CAM

CAM SHAFT,FRONT BRAKE

SHOE-BRAKE

SPRING,BRAKE SHOE

DRUM ASSY REAR BRAKE

BEARING BALL #6301Z

SPACER RR HUB BEARING

BEARING BALL #6301

OIL SEAL RR BRK DRUM

BOLT REAR SPROCKET

REAR SPROCKET 37T

REAR SPROCKET 42T

WASHER RR SPRCKT LOCK

NUT,8MM

AXLE,12X206

WASHER-PLAIN-SMALL,12MM

COLLAR,12.2X22X28.5

COLLAR REAR HUB L.H

NUT-HEX-FINE
