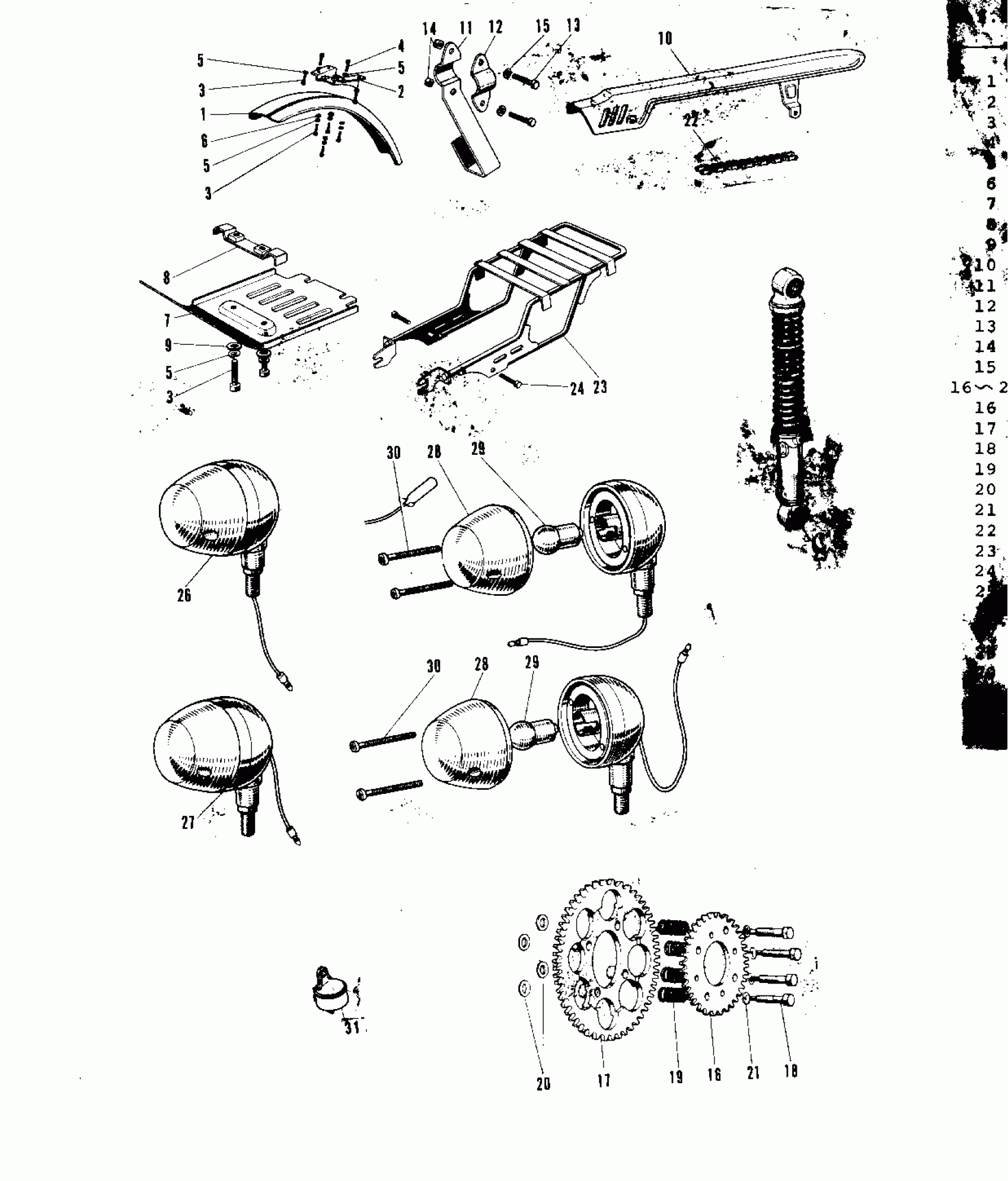

Kawasaki G3SS-D OPTIONAL PARTS ('69-'73) Diagram
#
Description
Price
1
FENDER-FR
35004-017
Unavailable
2
BRACKET FRONT FENDER
35012-004
Unavailable
3
BOLT-UPSET,6X12
112G0612
$1.45
4
BOLT 6X22
112B0622
$3.48
5
WASHER SPRING 6MM
461F0600
$0.69
6
WASHER PLAIN 6MM
411B0600
$2.84
7
GUARD ENGINE
55011-009
Unavailable
8
BRACKET ENGINE GUARD
55016-005
Unavailable
9
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
10
CASE-CHAIN
36014-025
Unavailable
11
GUARD CHAIN
55020-001
Unavailable
12
STAY CHAIN GUARD
55021-001
Unavailable
13
BOLT,8X20
115G0820
$5.14
14
NUT,8MM
311B0800
$0.67
15
WASHER SPRING 8MM
461F0800
$0.40
16~21
DUAL SPROCKET ASSY
42040-004
$68.35
16
REAR SPROCKET 37T
42041-020
Unavailable
17
REAR SPROCKET 59T
42041-021
$75.68
18
BOLT REAR SPROCKET
92003-004
$6.24
19
SPRING REAR SPROCKET
42042-002
Unavailable
20
WASHER REAR SPROCKET
92022-040
$0.36
21
WASHER SPRING 10MM
461F1000
$0.67
22
DR CHAIN 428X12
695Y43012
$9.00
23
CARRIER LUGGAGE
53029-028
$52.58
24
BOLT HEX HEAD 8X63
114B0863
$3.81
25
SHOCK ABSBR RR
45014-036
Unavailable
26
LAMP FRNT TURN SIGNAL
23040-021
$28.31
27
LAMP REAR TURN SIGNAL
23043-018
$48.17
28
LENS TURN SIGNAL LAMP
23048-011
$16.56
29
BULB,6V 8W
92069-042
$7.65
30
SCREW OVL CNTSNK 3X15
222B0315A
$2.93
31
RELAY TURN SIGNAL
27002-005
$8.57
