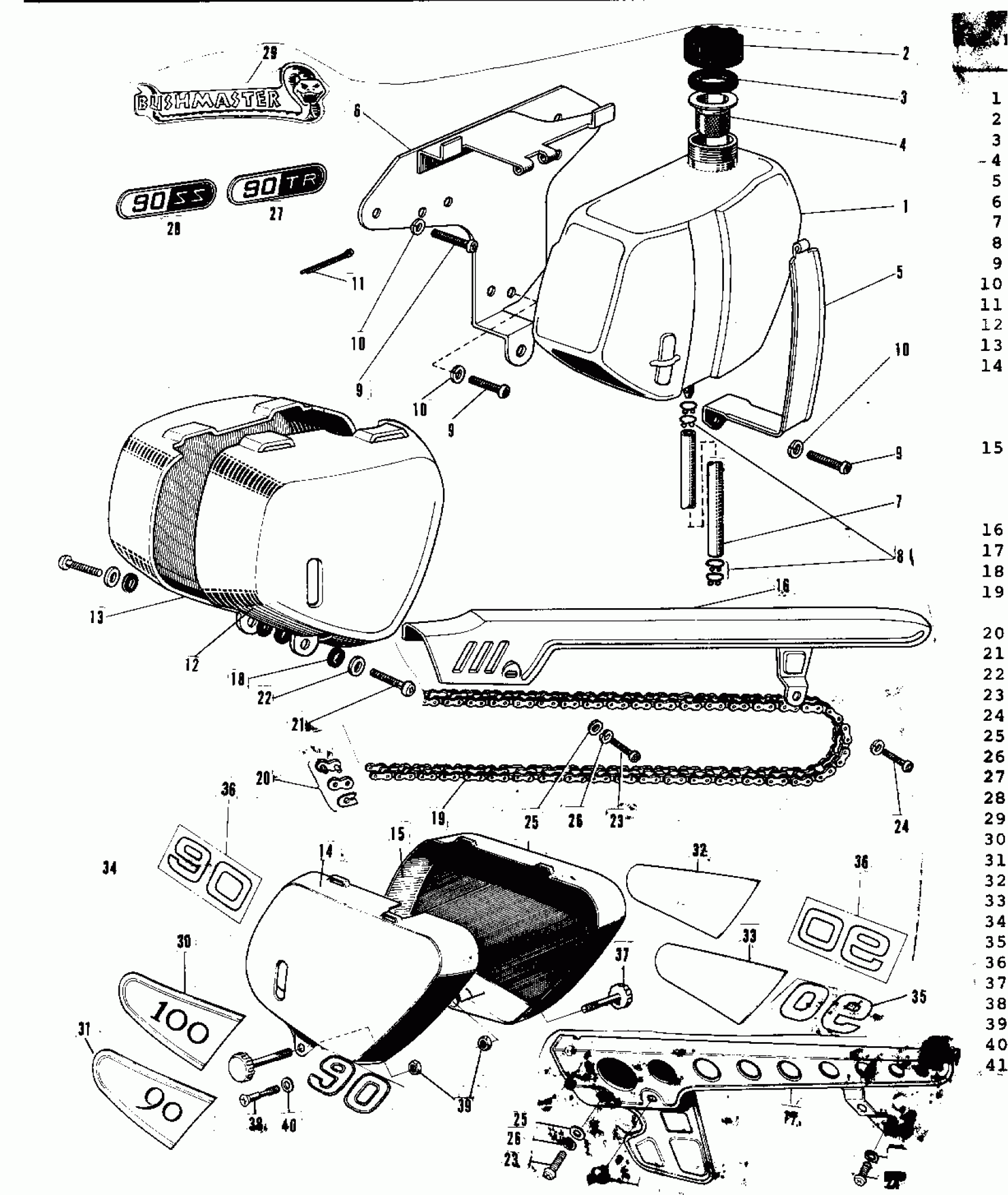

Kawasaki G3SS-D OIL TANK/CHAIN COVER/CHAIN/SIDE COVER (' Diagram

#

Description
Price

1

TANK OIL

52001-004

Unavailable

2

CAP OIL TANK

52003-002

Unavailable

3

GASKET OIL TANK CAP

92065-020

Unavailable

4

STRAINER OIL TANK CAP

52004-002

$14.78

5

BAND OIL TANK

32100-007

Unavailable

6

BRACKET OIL TANK

32094-001

Unavailable

7

PIPE OIL TANK

92059-008

$32.64

8

CLAMP,TUBE

92037-010

$3.92

9

SCREW PAN HEAD 6X12

220B0612

Unavailable

10

WASHER SPRING 6MM

461F0600

Unavailable

11

PIN-COTTER,3.0X30

550D3030

$1.73

12

COVER L.H SIDE WHITE

36001-013-17

Unavailable

13

COVER,RH SIDE,WHITE

36007-014-17

Unavailable

14

COVER-L.H SIDE,ORANGE

36001-026-55

$30.73

15

COVER,RH SIDE,ORANGE

36007-023-55

$31.97

16

COVER CHAIN

36014-024

Unavailable

17

CASE-CHAIN,BLACK

36014-037-21

Unavailable

18

DAMPER RUBB SIDE COV

92075-041

Unavailable

19

DR CHAIN 428X106

92057-036

Unavailable

20

JOINT-CHAIN,EK428-G

92058-1014

$6.60

21

SCREW PAN HEAD

92011-020

Unavailable

22

WASHER PLAIN 6MM

411B0600

Unavailable

23

SCREW PAN HEAD 5X8

220B0508

Unavailable

24

SCREW-PAN-CROS

220B0512

$0.42

25

WASHER PLAIN 5MM

410B0500

Unavailable

26

WASHER SPRING 5MM

461F0500

Unavailable

27

EMBLEM SIDE COVER

56018-015

Unavailable

29

EMBLEM-SIDE COVER

56018-026

Unavailable

30

EMBLEM-L.H,ORANGE

56018-066-61

$9.63

32

EMBLEM-R.H,PURPLE

56018-067-61

Unavailable

37

KNOB

92077-019

Unavailable

38

SCREW-PAN HEAD

92011-021

Unavailable

39

NUT 6MM

312B0600

Unavailable

40

WASHER PLAIN

92022-024

$3.65

41

PLUG-RUBBER

92074-018

$1.76
