Description

Price

10-12

MUFFLER ASSY

18001-025

$161.31

11

SPARK ARRESTER COMP

18033-029

$30.37

12

UNAVAILABLE IN PRICE BOOK

18033-028

Unavailable

13

TAIL PIECE

18048-012

$21.33

14

ELEMENT TAIL PIECE

18050-003

$8.53

15

GASKET TAIL PIECE

18068-006

$1.91

16

UNAVAILABLE IN PRICE BOOK

110B0606

Unavailable

17

BOLT,6X10

112G0610

$0.58

18

WASHER LOCK 6MM

464H0600

Unavailable

19

COVER-MUFFLER,BLACK

18057-035-21

$28.99

20

INSULATOR

18065-007

$5.59

21

INSULATOR

18065-001

Unavailable

22

SCREW PAN HEAD 6X10

221E0610

$3.13

23

BRACKET FRONT MUFFLER

18061-019

$5.70

24

BRACKET REAR MUFFLER

18061-024

Unavailable

25

BOLT HEX HEAD 8X16

116B0816

Unavailable

26

NUT,8MM

311B0800

$0.67

27

WASHER PLAIN 8MM

410B0800

$0.93

28

WASHER SPRING 8MM

461F0800

$0.40

29

BOLT HEX HEAD 8X16

110N0816

$0.68

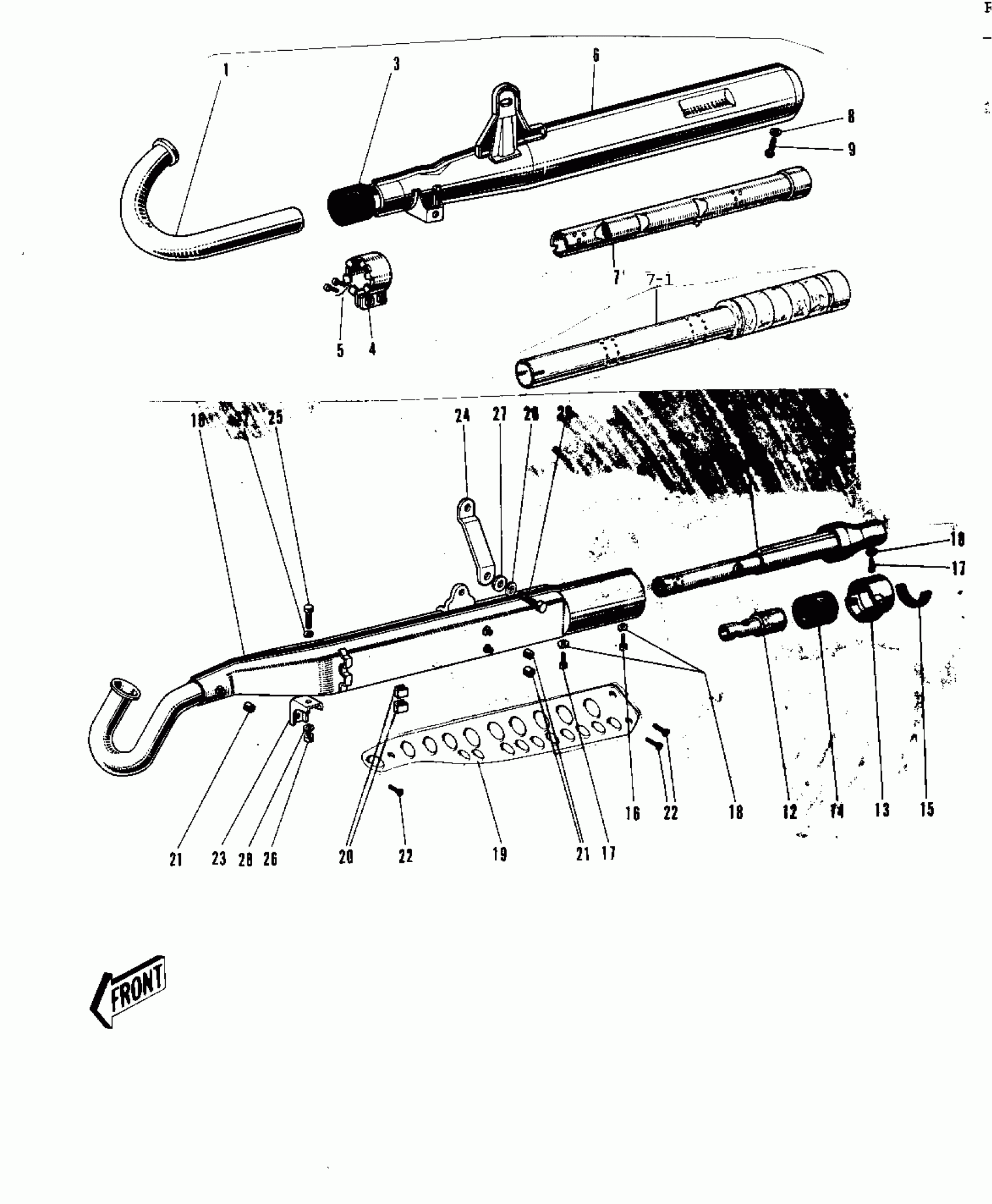

Kawasaki G3SS-D MUFFLER ('69-'73) Diagram

MUFFLER ASSY

SPARK ARRESTER COMP

UNAVAILABLE IN PRICE BOOK

TAIL PIECE

ELEMENT TAIL PIECE

GASKET TAIL PIECE

UNAVAILABLE IN PRICE BOOK

BOLT,6X10

WASHER LOCK 6MM

COVER-MUFFLER,BLACK

INSULATOR

INSULATOR

SCREW PAN HEAD 6X10

BRACKET FRONT MUFFLER

BRACKET REAR MUFFLER

BOLT HEX HEAD 8X16

NUT,8MM

WASHER PLAIN 8MM

WASHER SPRING 8MM

BOLT HEX HEAD 8X16
