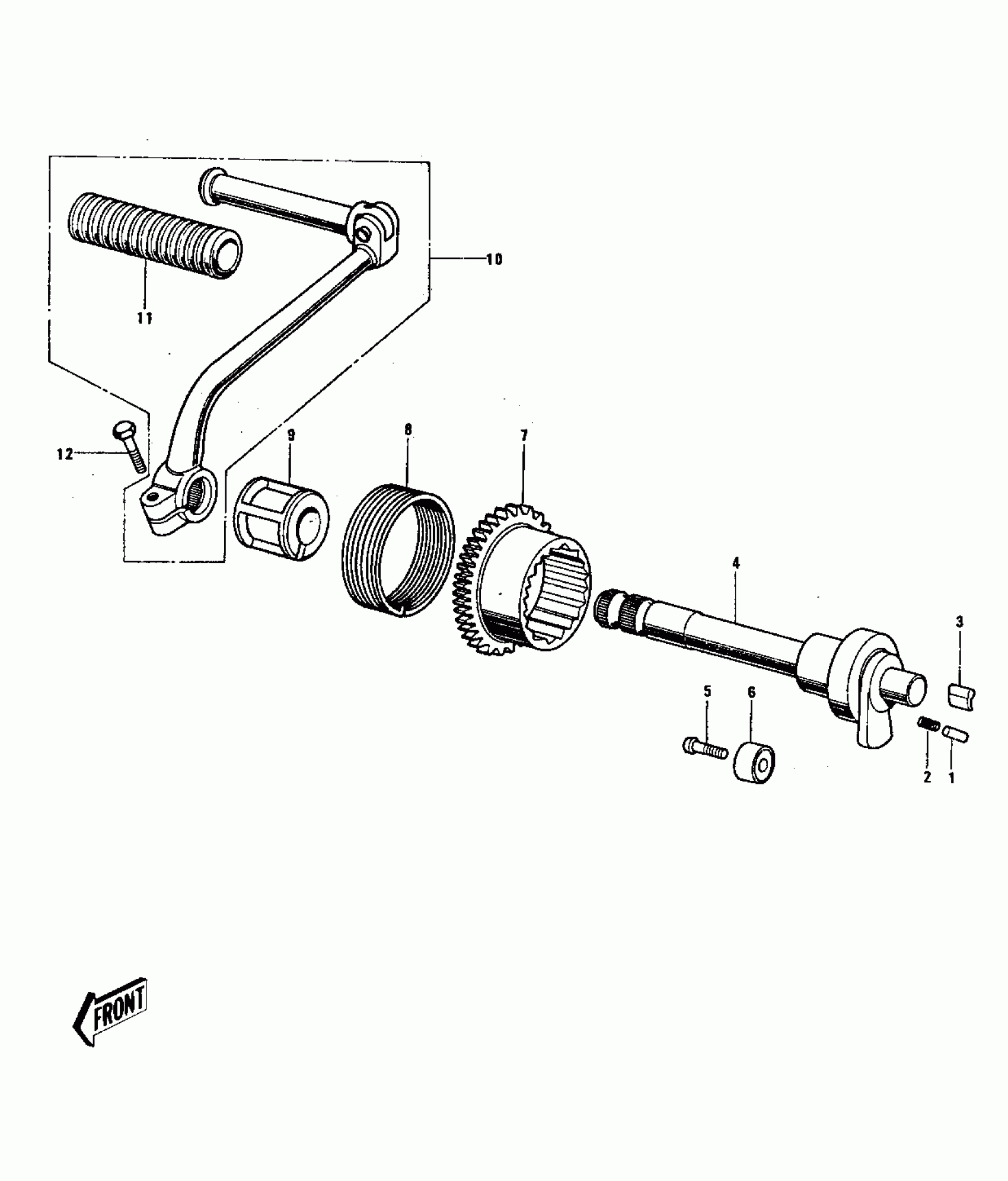

Kawasaki G3SS-D KICKSTARTER MECHANISM ('74-'75) Diagram

#

Description
Price

1

PIN,DOWEL,3.9X10.8

92043-013

$4.39

2

SPRING,KICK PAWL

92081-014

$4.74

3

PAWL,KICKSTARTER

13069-005

$14.51

4

SHAFT-KICK

13066-1022

Unavailable

5

SCREW-CSK-CROS,6X20

221B0620

$1.66

6

STOPPER,KICKSTARTER

13072-003

$9.58

7

GEAR-SPUR,KICKSTARTER,35T

13068-007

$74.27

8

SPRING,KICKSTARTER RETURN

92083-004

$11.80

9

GUIDE KICK SPRING

13070-003

Unavailable

10

LEVER-ASSY-KICK PEDAL

13064-1044

Unavailable

11

DAMPER,PEDAL

13063-002

$5.00

12

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable
