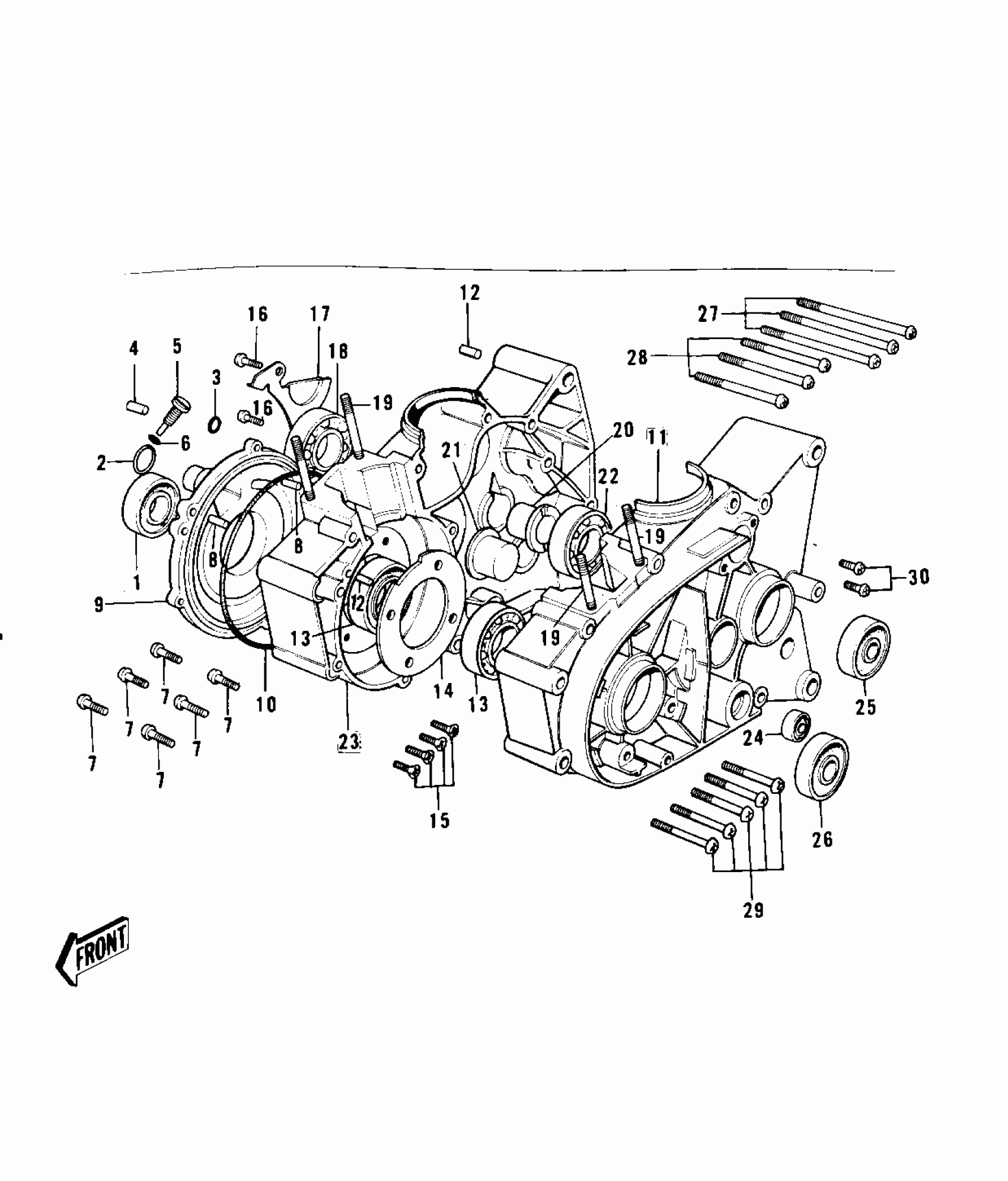

Kawasaki G3SS-D CRANKCASE ('74-'75) Diagram

#

Description
Price

1

SEAL-OIL

92049-1250

$14.47

2

O RING,26MM

670B3026

$5.11

3

RING-O,7.8X3.5

92055-029

$4.39

4

PIN,DOWEL,8X16

92042-017

$6.15

5

NOZZLE OIL INJECTION

92062-004

Unavailable

6

"0" RING,5MM

92055-011

Unavailable

7

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.36

8

ROLLER,5X12

610A0512

$4.78

9

COVER ROTARY DISC VLV

14019-032

Unavailable

10

RING-O,100MM

92055-010

$9.58

11

CRANKCASE,L.H.

14002-1072

Unavailable

12

PIN DOWEL 8X16

551A0816

$1.03

13

BEARING-BALL,#6204C3

601B6204

$13.65

14

PLATE-POSITION

14014-017

$8.21

15

SCREW-CSK-CROS,6X16

221B0616

$0.48

16

SCREW PAN HEAD 6X12

220B0612

Unavailable

17

PLATE-POSITION

14014-008

$7.24

18

BEARING-BALL,#6005C3

601B6005

$16.92

19

BOLT-STUD,8X115

172G08115

Unavailable

20

BUSHING,L=14

92028-069

$36.06

21

BUSHING,L=23.5

92028-025

$40.00

22

BEARING-BALL,#6004C3

601B6004

$12.47

23

CRANKCASE,R.H

14003-063

Unavailable

24

SEAL-OIL,SB12205

92049-004

$9.58

25

SEAL-OIL,SC25376

92050-013

$14.23

26

SEAL-OIL

92049-1240

$12.45

27

UNAVAILABLE IN PRICE BOOK

220B0663

Unavailable

28

SCREW-PAN-CROS,6X60

220B0660

Unavailable

29

SCREW PAN HEAD 6X40

220B0640

Unavailable

30

SCREW PAN HEAD 6X25

220B0625

Unavailable
