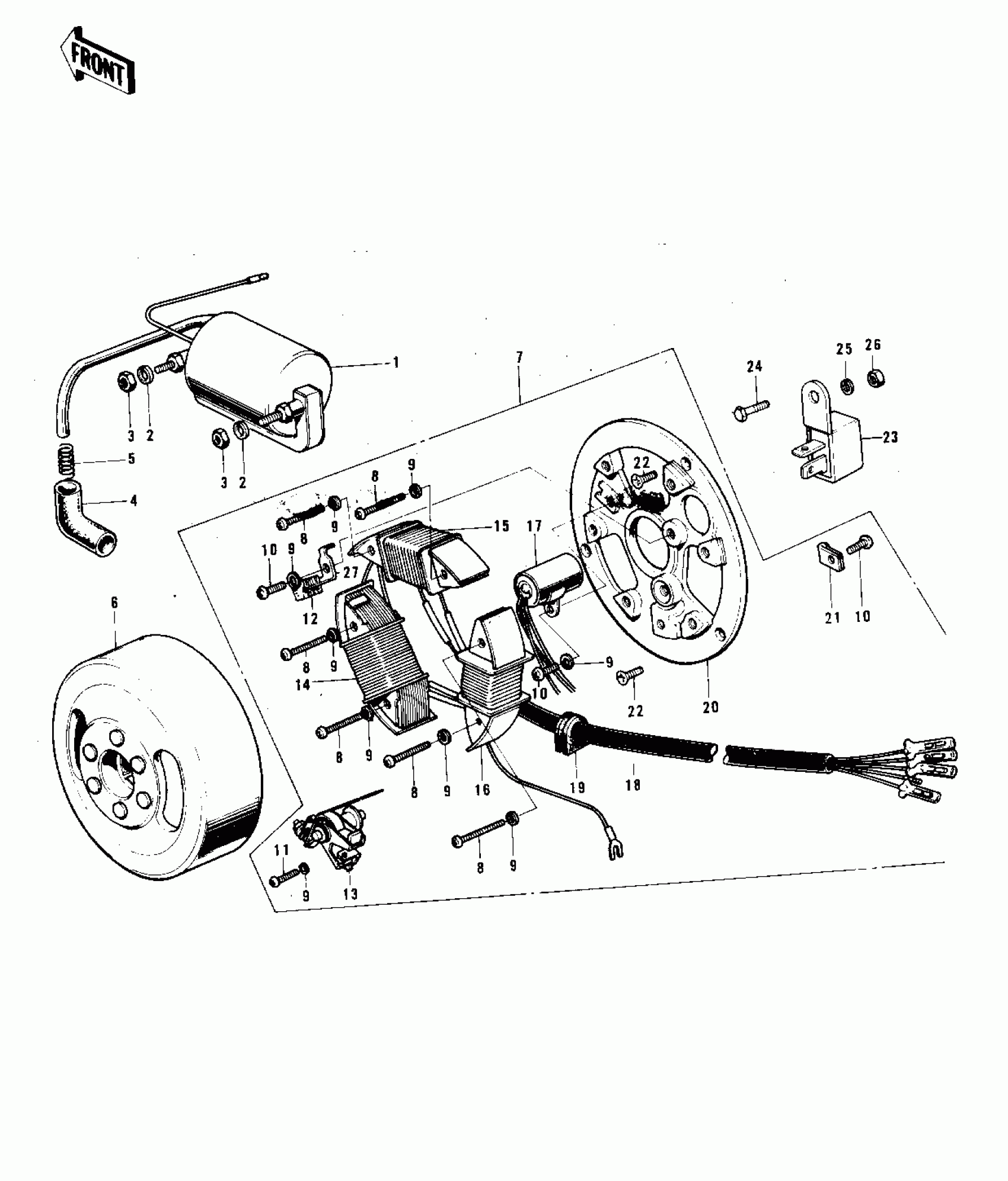

Kawasaki G3SS-D IGNITION/GENERATOR ('74-'75) Diagram
#
Description
Price
1
COIL IGNITION
21121-1048
Unavailable
2
WASHER SPRING 6MM
461F0600
$0.69
3
NUT 6MM
311B0600
$0.93
4
CAP-SPARK PLUG
21130-009
$22.10
5
TERMINAL,SPARK PLUG CAP
92101-001
$1.69
6
MAGNETO ASSY
21002-1055
Unavailable
6
FLYWHEEL
21050-017
$625.88
7
MAGNETO ASSY
21002-1055
Unavailable
7
STATOR ASSY
21003-027
$338.74
8
SCREW-PAN-CROS
220E0430
$2.95
9
WASHER SPRING 4MM
461F0400
Unavailable
10
SCREW PAN HEAD 4X6
220B0406
$1.67
11
SCREW-PAN-CRSOSS,4X1
220B0412
$0.21
12
BRUSH,OIL
21019-005
$5.39
13
BREAKER,CONTACT
21008-006
$49.36
14
COIL PRIMARY
21049-006
$195.66
14
COIL A,LIGHTING
21047-022
$81.96
15
COIL LIGHTING A
21047-010
$160.89
15
COIL A LIGHTING
21047-019
$175.51
16
COIL LIGHTING B
21047-011
$109.25
16
COIL-EXCITING
21049-1004
Unavailable
17
CONDENSER
21013-006
$29.01
18
WIRING HARNESS,MAGNTO
21029-025
$30.84
18
WIRING HARNESS,MAGNT
21029-031
$59.17
19
GROMMET
21017-002
$5.17
20
PLATE-COIL,MAGNETO
21048-1002
$69.95
21
CLAMP,WIRING HARNESS
21037-002
Unavailable
22
SCREW-CSK-CROS,6X14
221B0614
$3.46
23
RECTIFIER
21061-015
Unavailable
24
BOLT HEX HEAD 5X10
110B0510
Unavailable
25
WASHER SPRING 5MM
461F0500
$0.69
26
NUT-HEX
311B0500
$0.47
27
HOLDER,OIL FELT
21038-002
Unavailable
