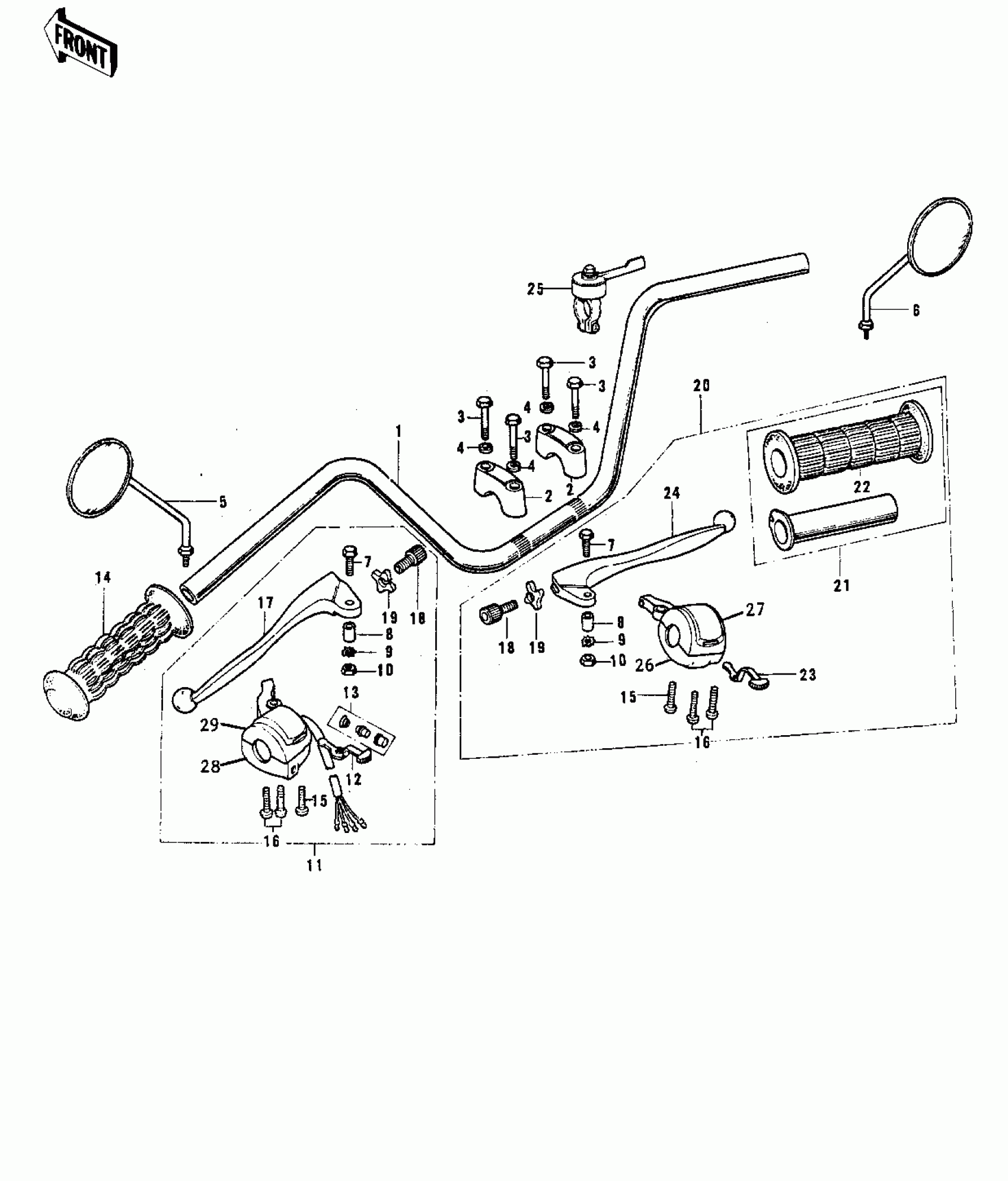

Kawasaki G3SS-D HANDLEBAR (G3SS-D) ('74-'75) Diagram
#
Description
Price
1
HANDLEBAR
46003-033
$54.86
2
HOLDER-HANDLE,UPP
46012-004
Unavailable
3
BOLT 8X38
92001-1405
$16.50
4
WASHER SPRING 8MM
461F0800
$0.40
5
REAR VIEW MIRROR LH
56003-016
Unavailable
6
REAR VIEW MIRROR R.H.
56002-024
Unavailable
7
BOLT HEX HEAD 5X20
92007-020
Unavailable
8
COLLAR LEVER
46059-011
Unavailable
9
WASHER LOCK 5MM
464H0500
$1.86
10
NUT-HEX,5MM
312B0500
$0.46
11
GRIP ASSY,L.H
46074-093
$59.58
12
KNOB ASSY L.H SWITCH
46088-001
Unavailable
13
SWITCH ASSY LH BUTTON
46078-003
$9.20
14
RUBBER,L.H GRIP
46075-020
Unavailable
15
SCREW-PAN-CROS
220B0518
$4.62
16
SCREW-PAN-CROS
220B0520
$0.68
17
LEVER-GRIP,CLUTCH
46092-015
Unavailable
18
SCREW,CABLE ADJUST
46055-010
$28.86
19
NUT LOCK ADJUST SCREW
46056-001
Unavailable
20
GRIP ASSY,R.H
46017-078
$57.77
21
GRIP ASSY,THROTTLE
46019-024
Unavailable
22
RUBBER,R.H.GRIP
46061-015
$23.82
23
KNOB ASSY R.H SWITCH
46043-002
Unavailable
24
LEVER-GRIP,FRONT BRAKE
46058-004
$24.84
25
LEVER-ASSY-GRIP,STARTER
46109-013
Unavailable
26
CASE,R.H LOWER
46022-017
$32.31
27
CASE,R.H. UPPER
46040-015
$12.48
28
CASE, L.H. LOWER
46077-026
Unavailable
29
CASE,L.H UPPER
46086-025
$19.84
