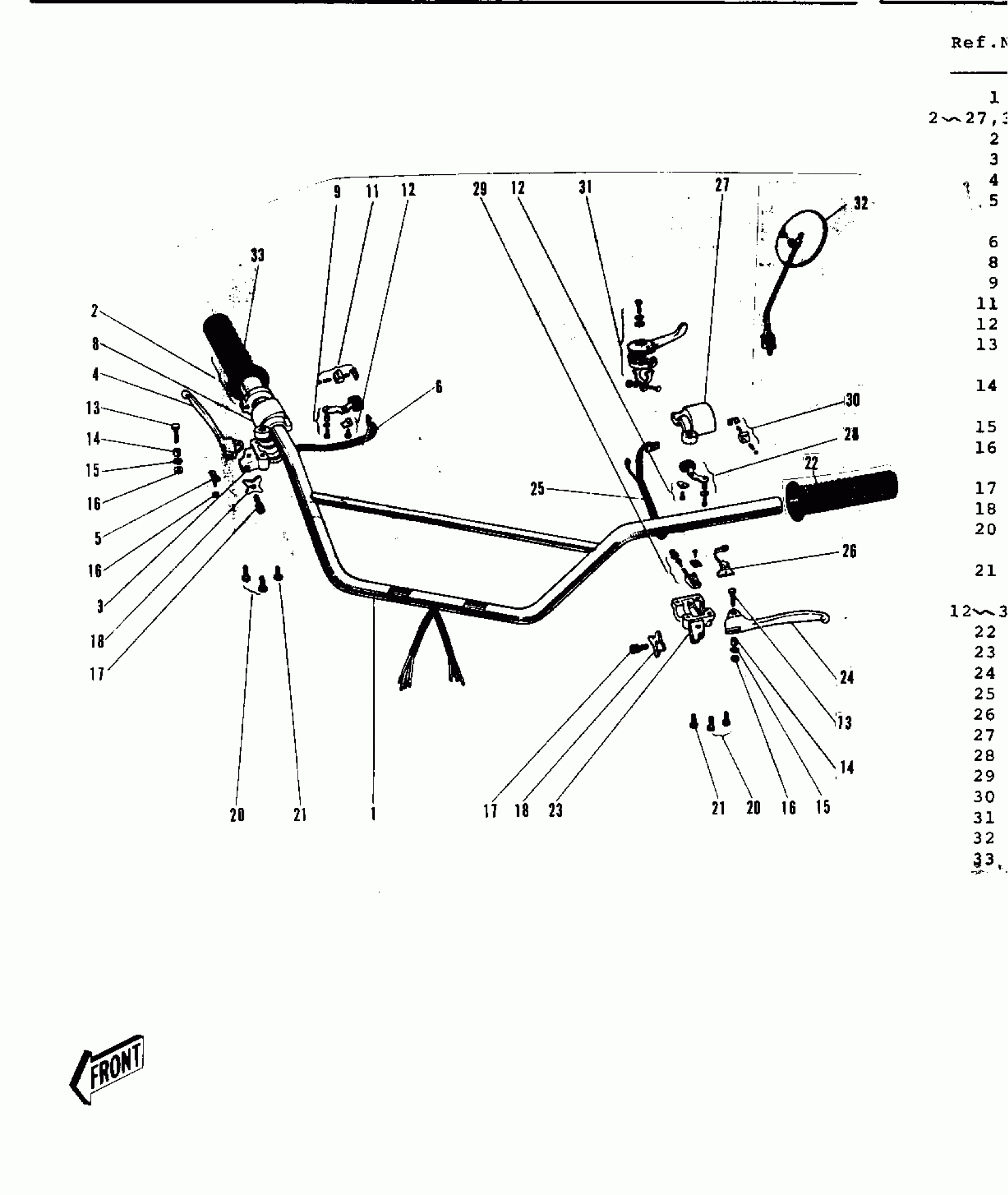

Kawasaki G3SS-D HANDLEBAR ('69-'73) Diagram
#
1
HANDLEBAR
46004-022
Unavailable
2-27,3
GRIP-ASSY,RH
46017-1071
Unavailable
2
GRIP ASSY THROTTLE
46019-005
Unavailable
3
CASE R.H SWITCH LOWER
46022-012
Unavailable
4
LEVER-GRIP,FRONT BRAKE
46058-004
$24.84
5
SPRING THROTTLE GRIP
46024-001
Unavailable
5
SPRING THROTTLE GRIP
46024-002
Unavailable
6
WIRING HARNESS R.H SW
46032-010
Unavailable
8
GRIP-ASSY,RH
46017-1071
Unavailable
9
KNOB ASSY R.H SWITCH
46043-002
Unavailable
11
SLIDE BLOCK AY R.H SW
46045-004
Unavailable
12
HOLDER WIRING HARNESS
46085-012
Unavailable
13
BOLT HEX HEAD 5X20
92007-018
Unavailable
13
BOLT HEX HEAD 5X20
92007-020
Unavailable
14
COLLAR LEVER
46059-005
Unavailable
14
COLLAR LEVER
46059-011
Unavailable
15
WASHER LOCK 5MM
464H0500
$1.86
16
NUT-HEX,5MM
312B0500
$0.46
16
NUT-HEX,5MM
312B0500
$0.46
17
SCREW,CABLE ADJUST
46055-010
$28.86
18
NUT LOCK ADJUST SCREW
46056-001
Unavailable
20
SCREW-PAN-CROS
220B0520
$0.68
20
SCREW-PAN-CROS
220B0520
$0.68
21
SCREW-PAN-CROS
220B0518
$4.62
21
SCREW-PAN-CROS
220B0518
$4.62
12-30
GRIP ASSY L.H
46074-017
Unavailable
22
RUBBER L.H GRIP
46075-007
Unavailable
23
CASE L.H SWITCH LOWER
46077-008
Unavailable
24
LEVER-GRIP,CLUTCH
46092-015
Unavailable
25
WIRING HARNESS L.H SW
46082-015
Unavailable
26
HOLDER L.H SWITCH
46085-008
Unavailable
27
CASE L.H SWITCH UPPER
46086-007
Unavailable
28
KNOB ASSY L.H SWITCH
46088-001
Unavailable
29
SWITCH ASSY LH BUTTON
46078-003
$9.20
30
SLIDE BLOCK AY L.H SW
46089-002
Unavailable
31
LEVER ASSY,STARTER
46109-012
Unavailable
32
REAR VIEW MIRROR R.H.
56002-024
Unavailable
33
RUBBER R.H GRIP
46061-009
Unavailable
