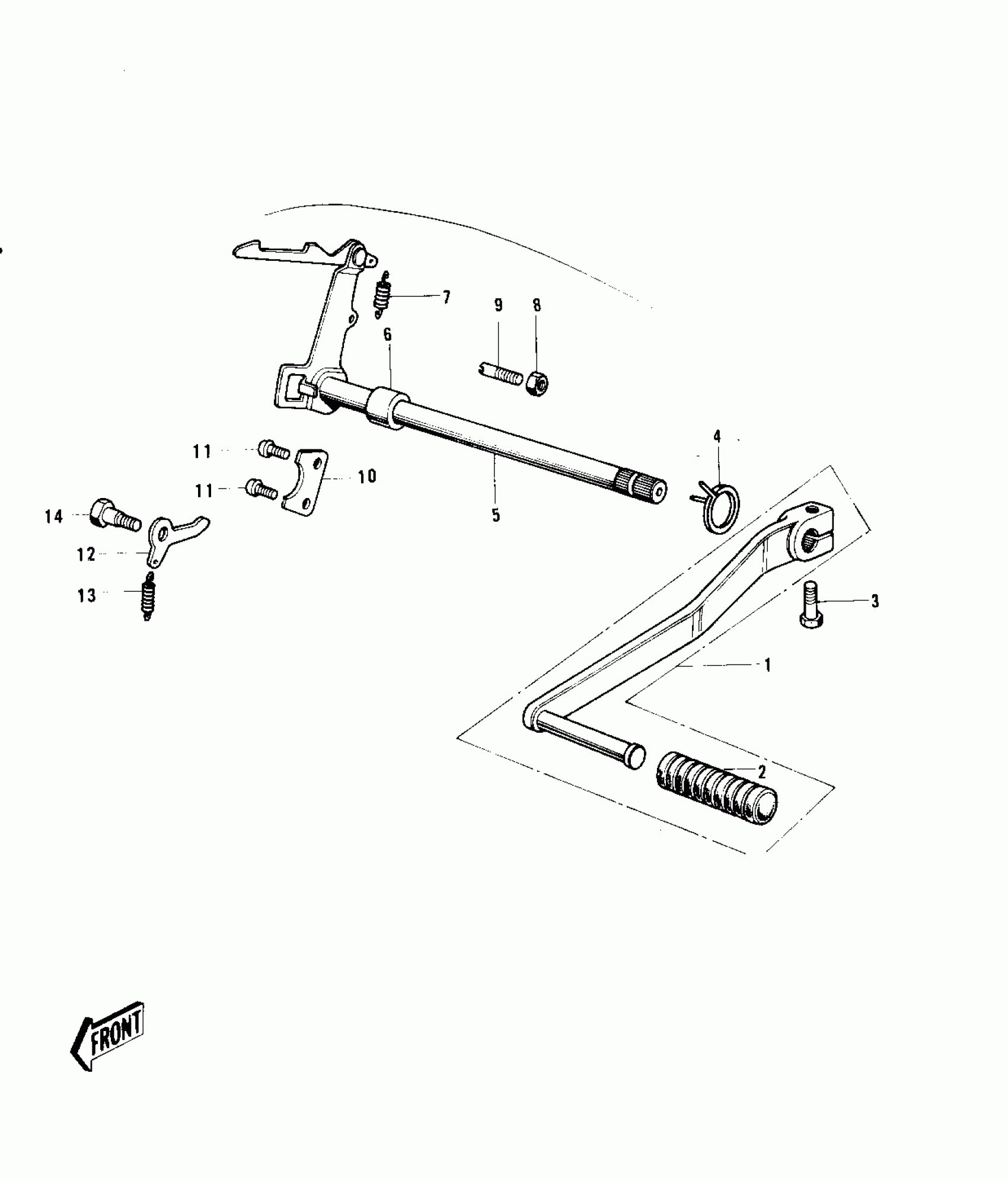

Kawasaki G3SS-D GEAR CHANGE MECHANISM ('74-'75) Diagram

#

Description

Price

1

LEVER-ASSY-CHANGE

13242-004

$40.04

2

DAMPER,CHANGE PEDAL

13157-004

Unavailable

3

BOLT-UPSET,6X20

112G0620

$2.12

3

BOLT-UPSET,6X20

112G0620

Unavailable

4

SPRING,TENSION

92081-1129

$9.43

5

LEVER ASSY,GEAR CHNG

13161-1014

Unavailable

6

COLLAR,12X18X11.5

92027-121

$9.23

7

SPRING,CHANGE LEVER

92144-1720

$4.74

8

NUT 8MM

312B0800

$0.58

9

BOLT,RETURN SPRING

92001-1401

$4.69

10

PLATE CHNG DRUM PSTN

13169-002

Unavailable

11

SCREW-PAN-CROS,6X14

220B0614

$1.48

12

LEVER GEAR CHNG DRUM

13168-005

Unavailable

13

SPRING,CHANGE DRUM LEVER

92083-012

$4.65

14

BOLT,CHANGE DRUM LEVER

92150-1450

$5.35
