Description

Price

1

LEVER-ASSY-CHANGE

13242-004

$40.04

2

DAMPER,CHANGE PEDAL

13157-004

Unavailable

3

BOLT-UPSET,6X20

112G0620

$2.12

4

LEVER SET-GEAR CHANGE

13162-007

Unavailable

5

CIRCLIP 10MM

92033-002

$4.42

6

LEVER SET-GEAR CHANGE

13162-007

Unavailable

7

SPRING,CHANGE LEVER

92144-1720

$4.74

8

SPRING,TENSION

92081-1129

$9.43

9

PIN CHANGE PEDAL SPRG

92043-057

Unavailable

10

NUT 8MM

312B0800

$0.58

11

BOLT,CHANGE DRUM LEVER

92150-1450

$5.35

12

SPRING,CHANGE DRUM LEVER

92083-012

$4.65

13

LEVER GEAR CHNG DRUM

13168-005

Unavailable

14

PLATE CHNG DRUM PSTN

13169-002

Unavailable

15

SCREW-PAN-CROS,6X14

220B0614

$1.48

16,17

LEVER SET-GEAR CHANGE

13162-007

Unavailable

16

LEVER ASSY,GEAR CHNG

13161-1014

Unavailable

17

COLLAR,12X18X11.5

92027-121

$9.23

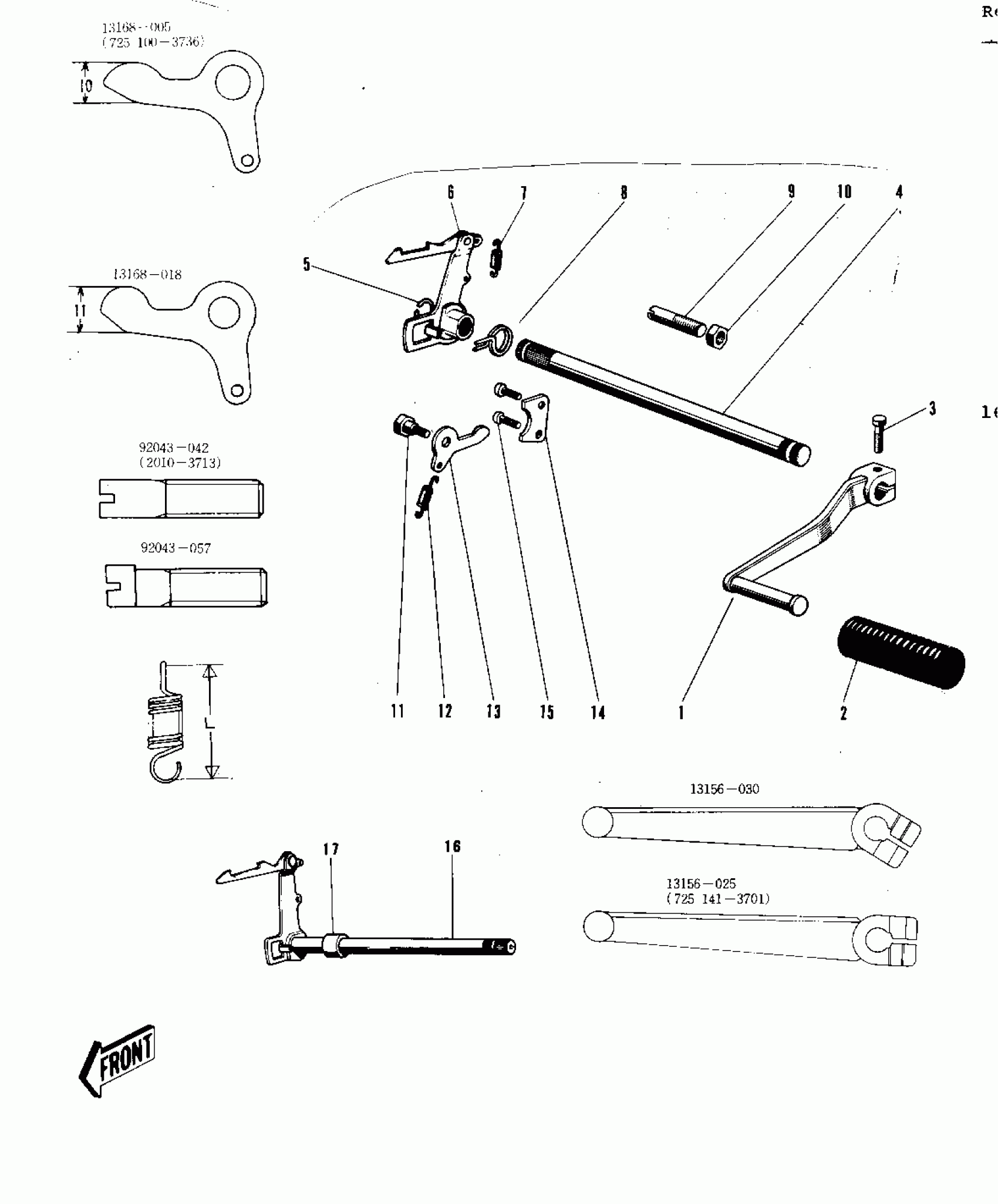

Kawasaki G3SS-D GEAR CHANGE MECHANISM ('69-'73) Diagram

LEVER-ASSY-CHANGE

DAMPER,CHANGE PEDAL

BOLT-UPSET,6X20

LEVER SET-GEAR CHANGE

CIRCLIP 10MM

LEVER SET-GEAR CHANGE

SPRING,CHANGE LEVER

SPRING,TENSION

PIN CHANGE PEDAL SPRG

NUT 8MM

BOLT,CHANGE DRUM LEVER

SPRING,CHANGE DRUM LEVER

LEVER GEAR CHNG DRUM

PLATE CHNG DRUM PSTN

SCREW-PAN-CROS,6X14

LEVER SET-GEAR CHANGE

LEVER ASSY,GEAR CHNG

COLLAR,12X18X11.5
