Description

Price

1

PANEL-ASY,FR BRK

41035-083-80

$212.38

2

BOLT-UPSET

112G0630

$1.36

2

BOLT-UPSET

112G0630

Unavailable

3

LEVER-BRAKE CAM

41053-005

$15.47

4

NUT,6MM

41072-007

$3.92

5

INDICATOR,BRAKE SHOE

41085-008

$13.88

6

LABEL,FR BRK SHOE

41084-002

$2.29

7

RING-O,BRAKE CAM

92055-004

$4.80

8

PIN,SPRING

41082-001

$3.92

9

BUSHING,SPEEDOMETER CABLE

41062-005

$19.48

10

WASHER,5.1X9X0.4

41063-001

$4.69

11

GEAR-METER SCREW,8T

41060-004

$21.74

12

CAM-BRAKE

41050-018

$23.50

13

GEAR SPEEDOMETER

41059-005

$23.34

14

RECIEVER SPEED GEAR

41064-002

$2.27

15

WASHER SPEED GR THRST

41065-002

$3.55

16

CIRCLIP-TYPE-C,15MM

480J1500

$2.31

17

SEAL-OIL,BRAKE PANEL

92050-002

$14.64

18

SHOE-BRAKE

41048-1085

$22.53

19

SPRING,BRAKE SHOE

92081-1766

$8.03

20

DRUM-ASSY,FR BRK

41034-1040

Unavailable

21

BEARING BALL #6300Z

601B6300Z

$13.02

22

COLLAR,L=51

41039-002

$10.96

23

BEARING BALL #6200

601B6200

$14.85

24

OIL SEAL FRONT DRUM

92050-003

Unavailable

25

AXLE,FR

41068-039

Unavailable

26

DUST SHIELD FRNT DRUM

41042-002

Unavailable

27

COLLAR FRONT HUB R.H

41069-002

Unavailable

28

WASHER SPRING 10MM

461F1000

$0.67

29

NUT,10MM

42045-005

$7.98

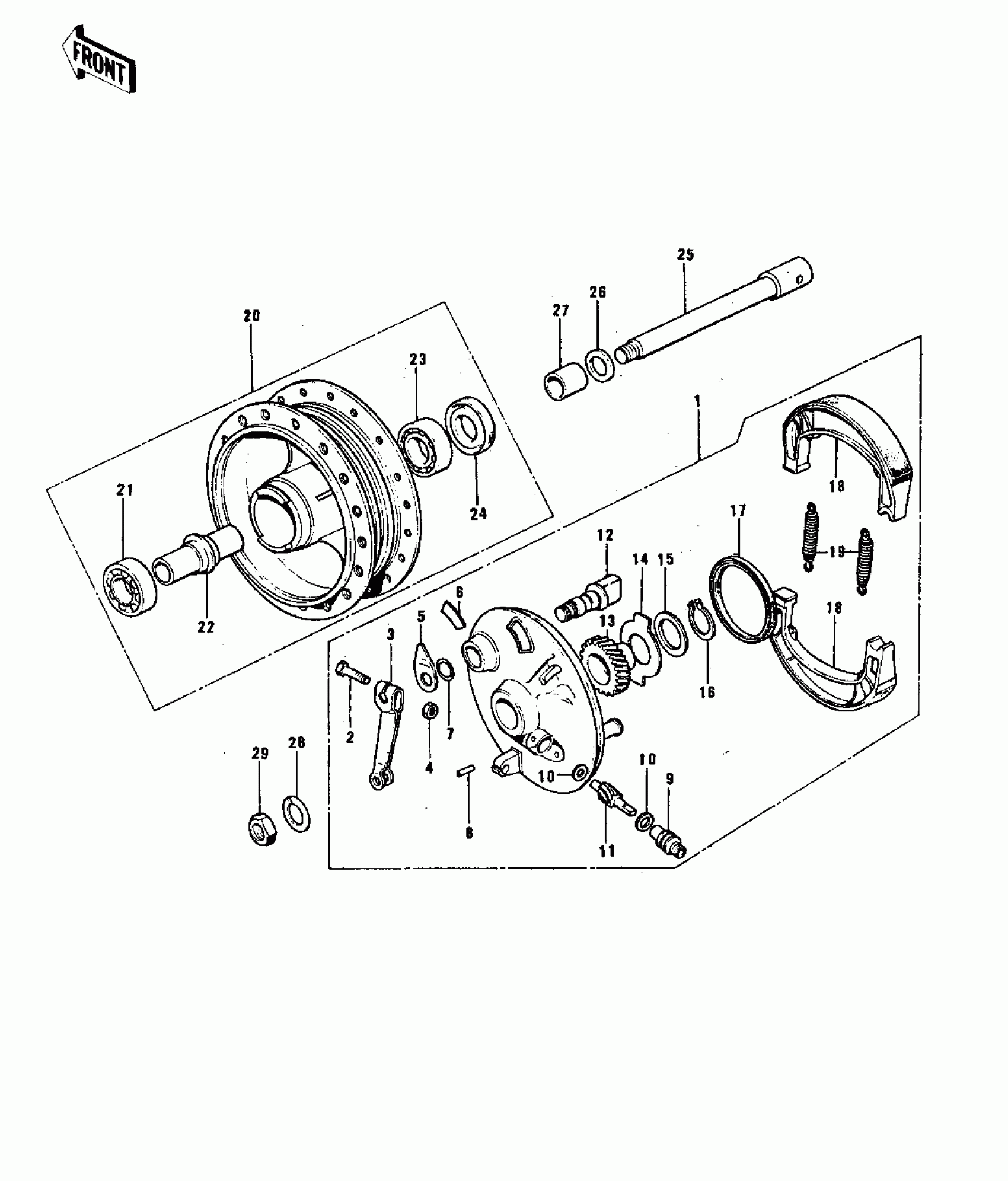

Kawasaki G3SS-D FRONT HUB/BRAKE ('74-'75) Diagram

PANEL-ASY,FR BRK

BOLT-UPSET

BOLT-UPSET

LEVER-BRAKE CAM

NUT,6MM

INDICATOR,BRAKE SHOE

LABEL,FR BRK SHOE

RING-O,BRAKE CAM

PIN,SPRING

BUSHING,SPEEDOMETER CABLE

WASHER,5.1X9X0.4

GEAR-METER SCREW,8T

CAM-BRAKE

GEAR SPEEDOMETER

RECIEVER SPEED GEAR

WASHER SPEED GR THRST

CIRCLIP-TYPE-C,15MM

SEAL-OIL,BRAKE PANEL

SHOE-BRAKE

SPRING,BRAKE SHOE

DRUM-ASSY,FR BRK

BEARING BALL #6300Z

COLLAR,L=51

BEARING BALL #6200

OIL SEAL FRONT DRUM

AXLE,FR

DUST SHIELD FRNT DRUM

COLLAR FRONT HUB R.H

WASHER SPRING 10MM

NUT,10MM
