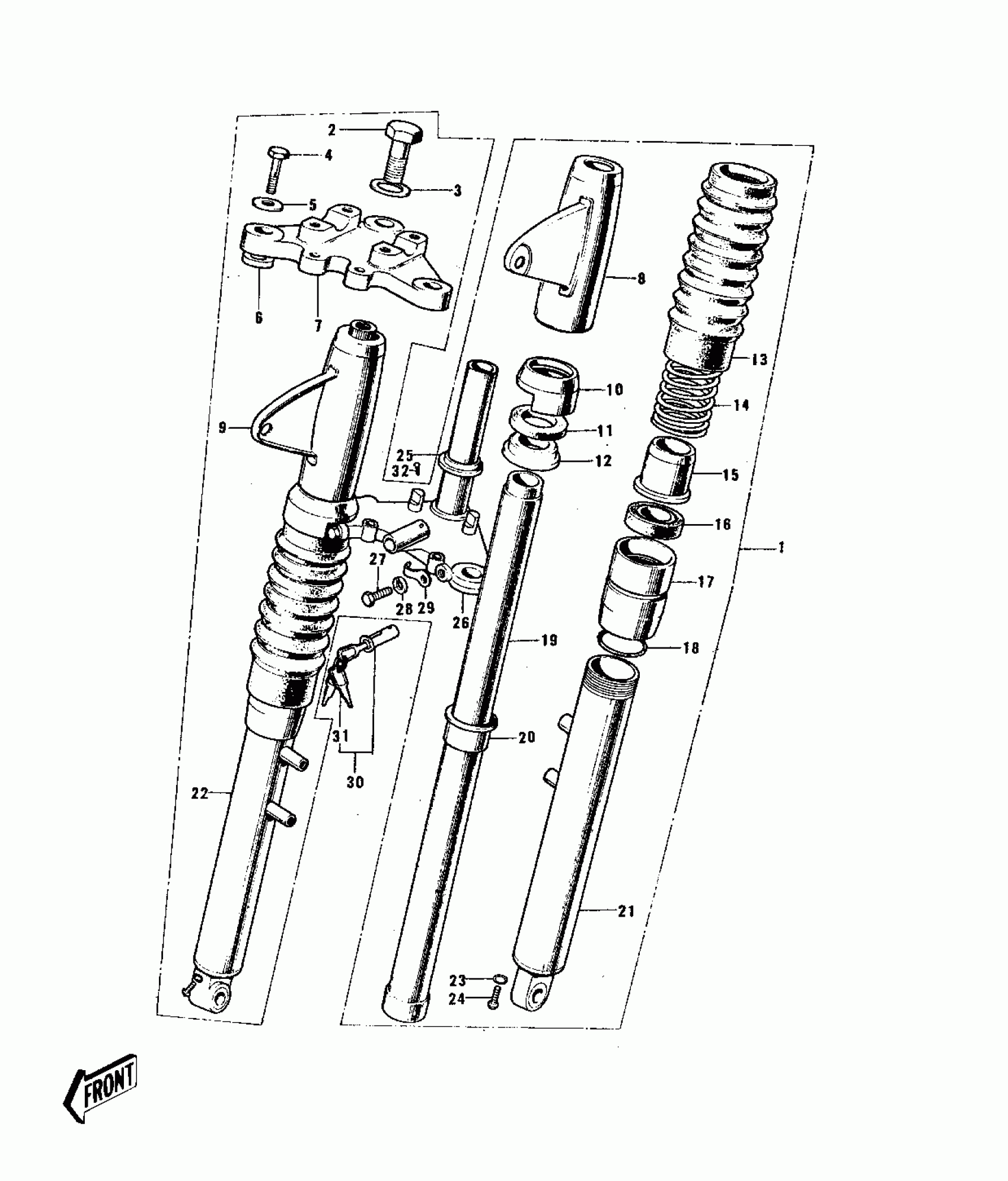

Kawasaki G3SS-D FRONT FORK ('74-'75) Diagram
#
1
FORK-FRONT,BLACK
44001-099-21
$453.61
2
BOLT STRNG STEM HEAD
44041-007
$16.04
3
WASHER FORK COVER
44043-032
Unavailable
4
BOLT FORK TOP
44041-020
$10.86
5
WASHER FORK TOP
44043-017
$3.60
6
GASKET INNER TUBE UPP
44046-002
Unavailable
7
HEAD STEERING STEM
44039-013
$145.59
8
COVER-L.H FORK,BLACK
44033-050-21
Unavailable
9
COVER-R.H FORK,BLACK
44034-050-21
Unavailable
10
RING FORK COVER
44030-004
$10.57
11
GASKET FORK COVER
44045-014
$4.71
12
GUIDE FORK SPRING
44029-011
$3.08
13
COVER FORK DUST
44027-004
Unavailable
14
SPRING FORK
44026-020
$21.00
15
DUST SHIELD FORK
44010-015
Unavailable
16
OIL SEAL,FORK
44009-021
Unavailable
17
NUT FORK OUTER TUBE
44007-008
$34.67
18
'O' RING OUTER TUBE
44046-005
Unavailable
19
TUBE FORK INNER
44013-010
$111.74
20
GUIDE FORK INNER TUBE
44015-003
$11.64
21
TUBE,LH,FORK OUTER
44005-029-15
$108.19
22
TUBE,RH,FORK OUTER
44006-028-15
$83.85
23
GASKET,FORK DRAIN PLUG
44045-002
$5.18
24
SCREW PAN HEAD 4X8
220B0408
$0.67
25
RACE,LOWER BEARING
92047-004
$16.97
26
STEM STEERING
44037-020
$113.50
27
BOLT, PINCH, 10MM
44041-010
Unavailable
28
WASHER SPRING 10MM
461F1000
$0.67
29
CLAMP CABLE
92037-022
$3.94
30
LOCK ASSY,STEERING
27016-5025
Unavailable
31
KEY SET NO.321
27008-034-21
Unavailable
31
KEY SET NO.322
27008-034-22
$17.01
31
KEY SET NO.323
27008-034-23
$7.04
31
KEY SET NO.324
27008-034-24
$16.85
31
KEY SET NO.235
27008-034-35
Unavailable
31
KEY SET NO.236
27008-034-36
$7.21
31
KEY SET NO.237
27008-034-37
$7.22
31
KEY SET NO.238
27008-034-38
Unavailable
31
KEY SET NO.239
27008-034-39
Unavailable
31
KEY SET NO.140
27008-034-40
Unavailable
31
KEY SET NO.141
27008-034-41
$9.17
31
KEY SET NO.142
27008-034-42
$16.85
31
KEY SET NO.143
27008-034-43
$7.58
31
RIVET
92099-001
$3.89
