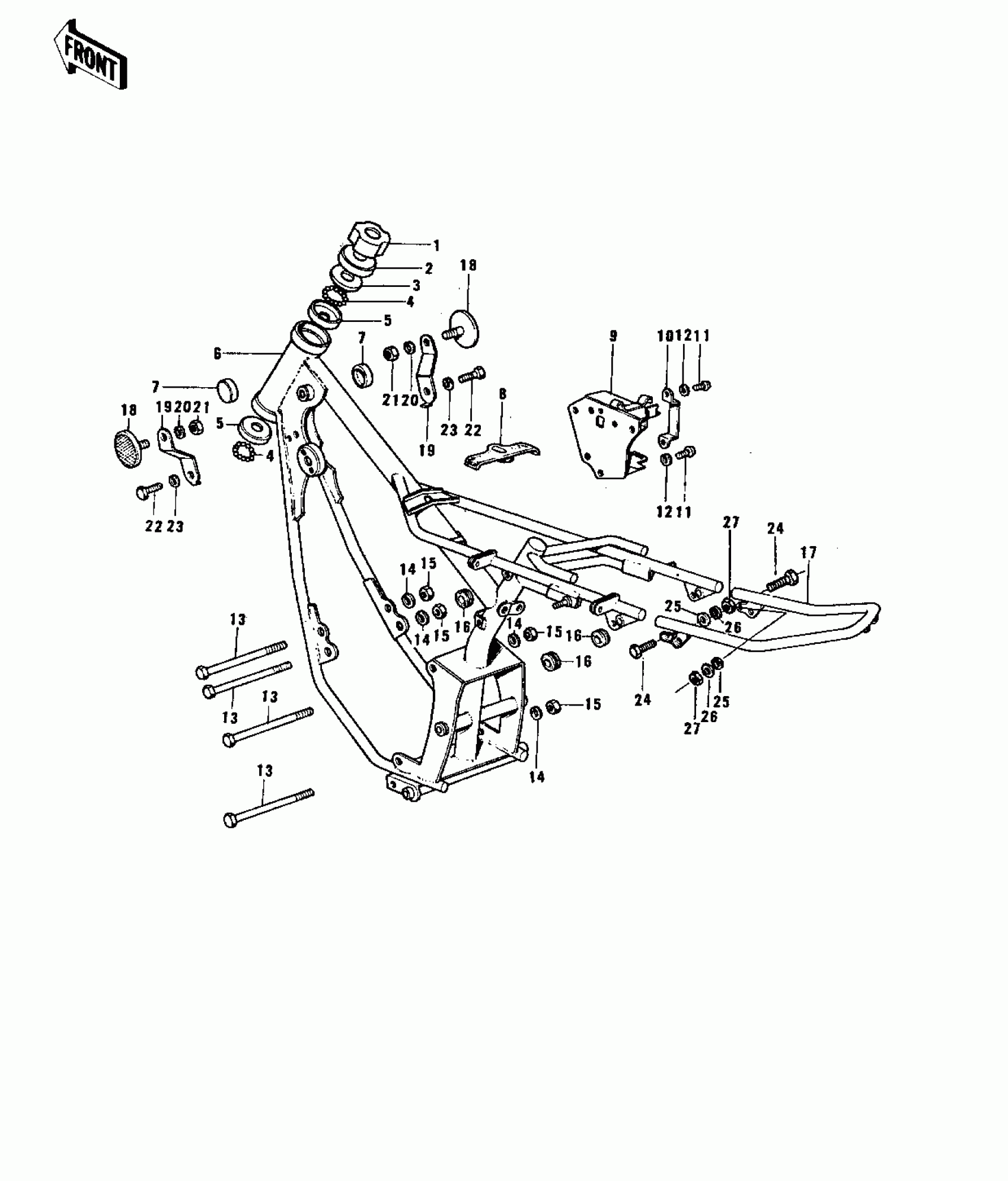

Kawasaki G3SS-D FRAME/FRAME FITTINGS ('74-'75) Diagram
#
Description
Price
1
NUT STEERING STEM LCK
92090-006
$15.04
2
CAP,STEERING STEM
46098-004
$6.16
3
RACE,STEERING STEM BEARING
92047-014
$12.72
4
BALL-STEEL,3/16
600A0600
$1.07
5
RACE,STEERING STEM BEARING
92048-009
$14.10
6
FRAME
32002-064
Unavailable
6
FRAME
32002-106
Unavailable
7
DAMPER,FUEL TANK
92075-101
$6.22
8
DAMPER RUBBER,FL TNK
92075-226
$8.14
9
CASE,BATTERY
32097-032
Unavailable
10
BAND BATTERY
32100-002
Unavailable
11
SCREW PAN HEAD 6X12
220B0612
Unavailable
12
WASHER SPRING 6MM
461F0600
$0.69
13
BOLT,FLANGED,10X115
92001-1603
$10.65
14
WASHER SPRING 10MM
461F1000
$0.67
15
NUT-HEX-FINE,10MM
314B1000
$0.67
16
GROMMET
92071-056
$4.26
17
STAY,REAR FENDER
35032-027
$51.60
18
REFLECTOR-REFLEX
28012-011
$12.82
19
BRACKET,REFLEX REFLCT
28013-007
$10.44
20
WASHER SPRING 5MM
461F0500
$0.69
21
NUT-HEX
311B0500
$0.47
22
BOLT-UPSET,6X12
112G0612
$1.45
22
BOLT-UPSET,6X12
112G0612
Unavailable
23
WASHER SPRING 6MM
461F0600
$0.69
24
BOLT,8X20
92150-1488
$8.66
25
WASHER PLAIN 8MM
411B0800
$0.93
26
WASHER SPRING 8MM
461F0800
$0.40
27
NUT,8MM
311B0800
$0.67
