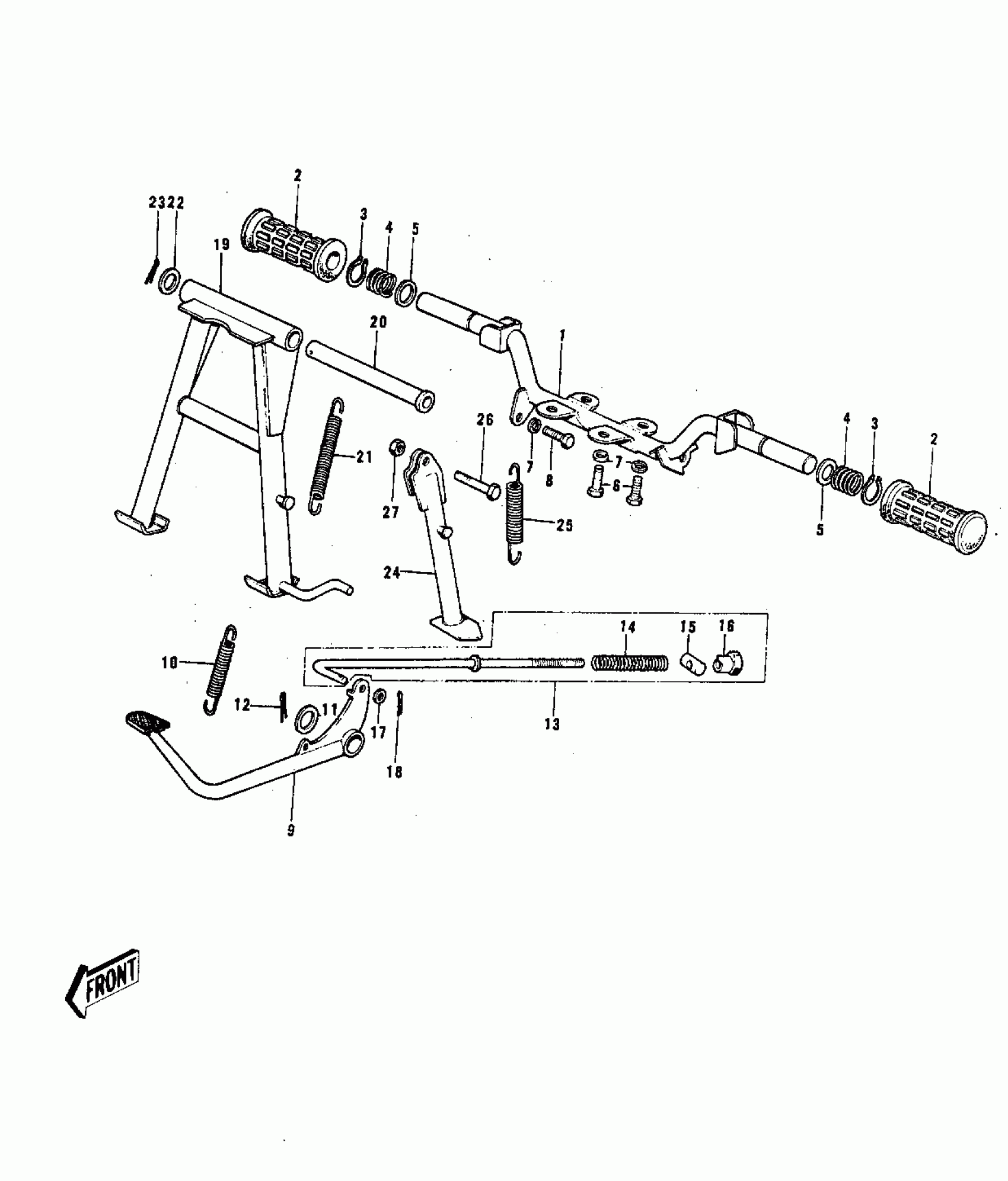

Kawasaki G3SS-D FOOTRESTS/STANDS/BRAKE PEDAL ('74-'75) Diagram

#

Description
Price

1

BAR,FOOTREST

34002-048

$53.82

2

RUBBER FOOTREST

92076-006

$18.94

3

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

4

SPRING FOOTREST PEG

34006-002

Unavailable

5

WASHER FOLDING PEG

92022-049

Unavailable

6

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

6

BOLT HEX HEAD 8X16

116B0816

Unavailable

7

WASHER SPRING 8MM

461F0800

$0.40

8

BOLT,8X20

115G0820

$5.14

8

BOLT,8X20

115G0820

Unavailable

9

PEDAL BRAKE

43001-014

$39.42

10

SPRING BRAKE PEDAL

43005-005

Unavailable

11

WASHER BRAKE PEDAL

92022-085

$3.92

12

PIN-COTTER,3.0X30

550D3030

$2.51

13

BRAKE ROD ASSY

43010-5003

Unavailable

14

SPRING,BRAKE ROD

43012-001

$4.65

15

PIN,BRAKE ROD

92043-039

$6.38

16

NUT,BRAKE ROD

92015-042

$6.22

17

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

18

PIN COTTER 2.0X15

550D2015

$1.04

19

STAND-MAIN

34011-1045

$59.79

20

SHAFT MAIN STAND

34019-006

$13.27

21

SPRING MAIN STAND

34023-005

$10.92

22

WASHER BRAKE PEDAL

92022-085

$3.92

23

PIN-COTTER,3.0X30

550D3030

$2.51

24

STAND-SIDE

34024-053

Unavailable

25

SPRING,SIDE STAND

34025-001

Unavailable

26

BOLT,HEX HEAD,10X25

113G1025

Unavailable

27

NUT-HEX-FINE,10MM

315B1000

$0.58
