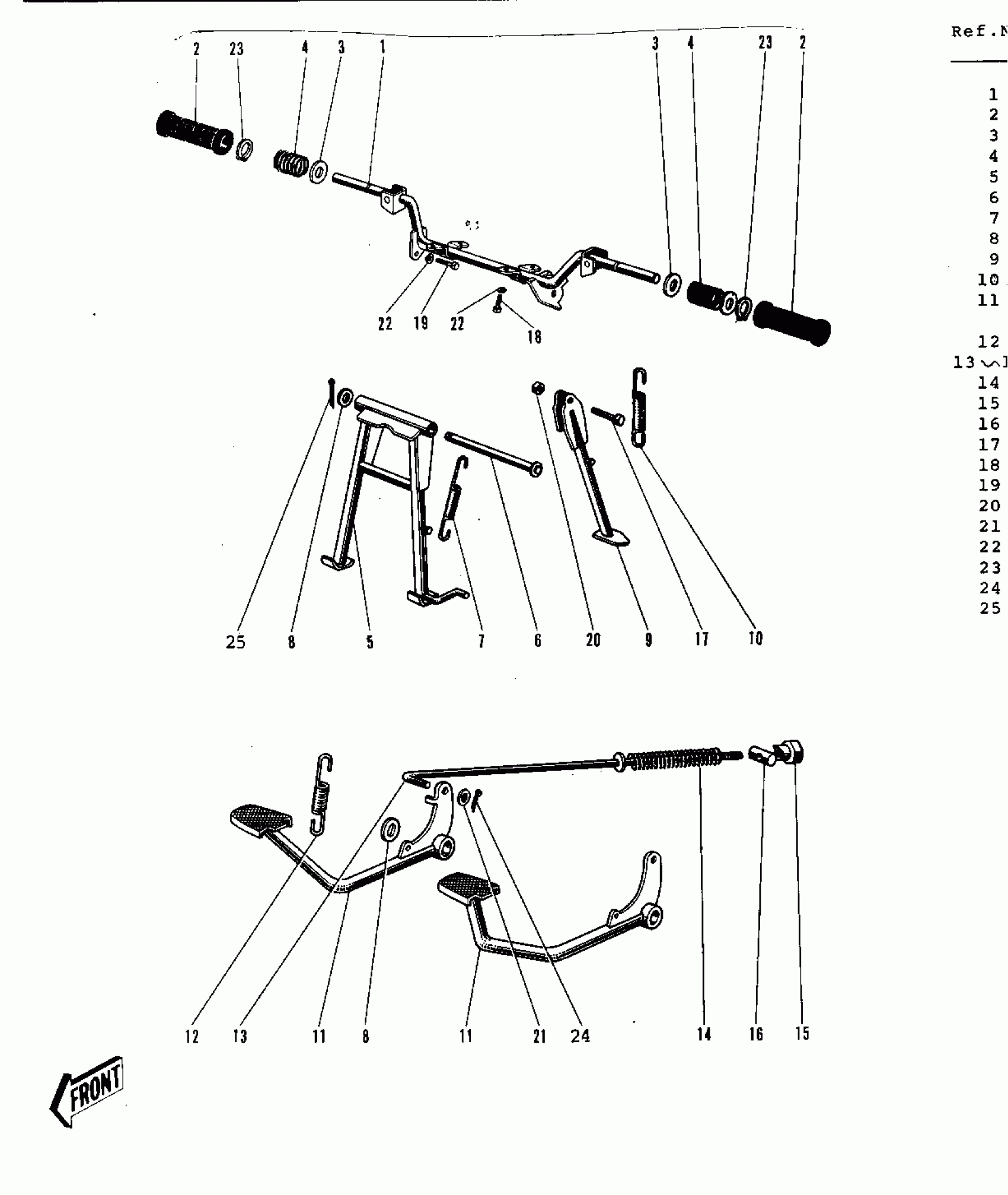

Kawasaki G3SS-D FOOTRESTS/STANDS/BRAKE PEDAL ('69-'73) Diagram

#

Description
Price

1

BAR,FOOTREST

34002-048

$52.71

2

RUBBER FOOTREST

92076-006

Unavailable

3

WASHER FOLDING PEG

92022-049

Unavailable

4

SPRING FOOTREST PEG

34006-002

Unavailable

5

STAND-MAIN

34011-1045

$58.69

6

SHAFT MAIN STAND

34019-006

$12.00

7

SPRING MAIN STAND

34023-005

$10.92

8

WASHER BRAKE PEDAL

92022-085

$3.92

9

STAND-SIDE

34024-053

Unavailable

10

SPRING,SIDE STAND

34025-001

Unavailable

11

PEDAL BRAKE

43001-024

Unavailable

12

SPRING BRAKE PEDAL

43005-005

Unavailable

13~16

BRAKE ROD ASSY

43010-5003

Unavailable

14

SPRING,BRAKE ROD

43012-001

$4.65

15

NUT,BRAKE ROD

92015-042

$6.22

16

PIN,BRAKE ROD

92043-039

$4.74

17

BOLT,HEX HEAD,10X25

113G1025

Unavailable

18

BOLT HEX HEAD 8X16

116B0816

Unavailable

19

BOLT,8X20

115G0820

Unavailable

20

NUT-HEX-FINE,10MM

315B1000

Unavailable

21

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

22

WASHER SPRING 8MM

461F0800

Unavailable

23

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

24

PIN COTTER 2.0X15

550D2015

Unavailable

25

PIN-COTTER,3.0X30

550D3030

$1.73
