Description

Price

1

FENDER-FR

35004-1010

Unavailable

2

STAY FRONT FENDER

35011-005

Unavailable

3

SCREW PAN HEAD 6X10

220E0610

$3.89

4

WASHER PLAIN 6MM

411B0600

$2.84

5

WASHER SPRING 6MM

461F0600

$0.69

6

NUT 6MM

312B0600

$0.72

7

BOLT SMALL

114G0812

Unavailable

8

WASHER SPRING 8MM

461F0800

$0.40

9

WASHER PLAIN 8MM

410B0800

$0.93

10

FENDER-RR

35023-1004

$108.24

11

BRACKET REAR FENDER

35025-002

$8.42

12

PLATE,REAR FENDER

35013-012

$6.00

13

BOLT,HEX HEAD,8X42

110N0842

$2.30

14

WASHER PLAIN 8MM

411B0800

$0.93

15

WASHER SPRING 8MM

461F0800

$0.40

16

NUT,8MM

311B0800

$0.67

17

SCREW PAN HEAD 6X12

220B0612

Unavailable

18

WASHER PLAIN 6MM

411B0600

$2.84

19

WASHER SPRING 6MM

461F0600

$0.69

20

NUT 6MM

311B0600

$0.93

21

SCREW-PAN-CROS,6X14

220B0614

$1.48

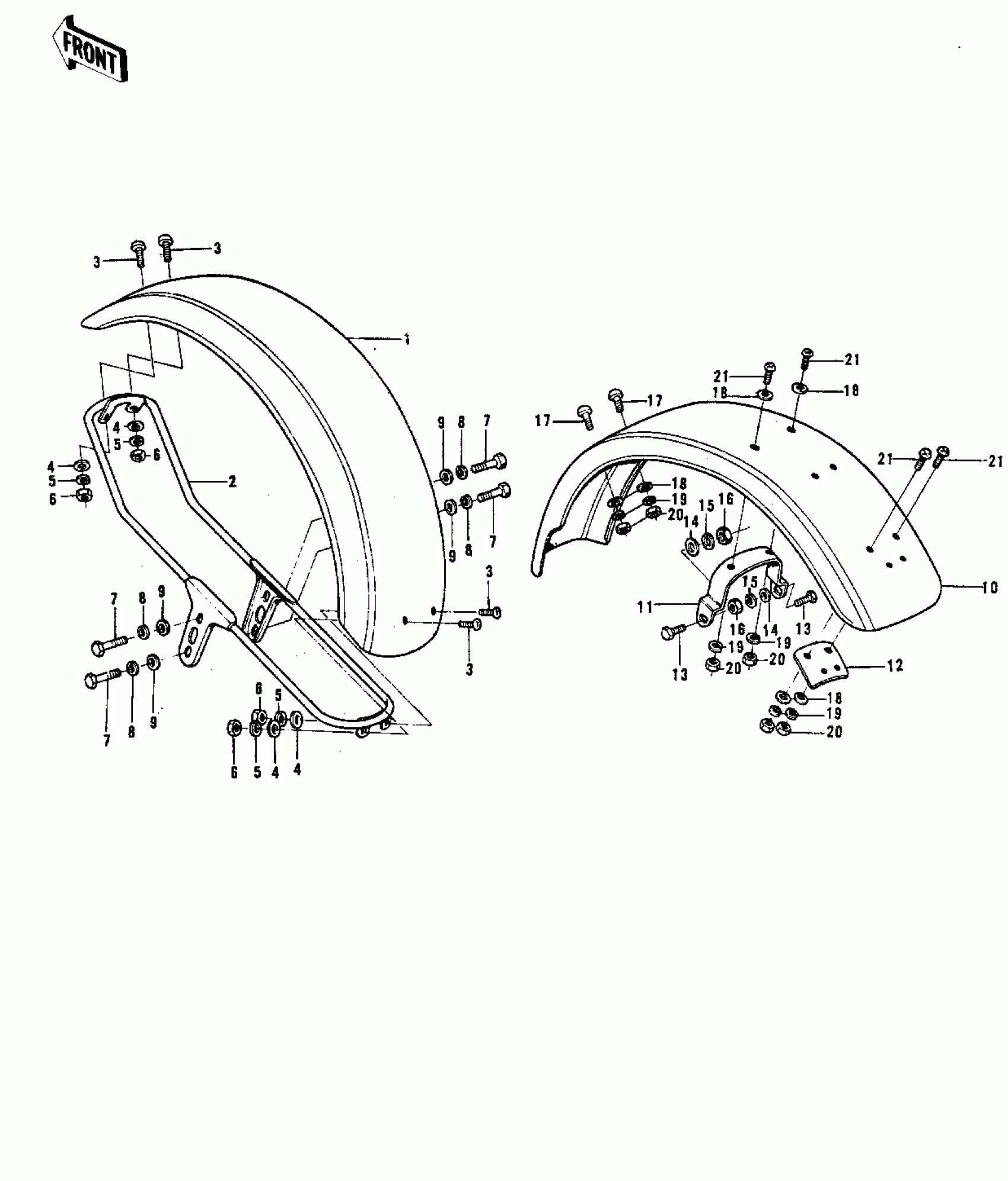

Kawasaki G3SS-D FENDERS ('74-'75) Diagram

FENDER-FR

STAY FRONT FENDER

SCREW PAN HEAD 6X10

WASHER PLAIN 6MM

WASHER SPRING 6MM

NUT 6MM

BOLT SMALL

WASHER SPRING 8MM

WASHER PLAIN 8MM

FENDER-RR

BRACKET REAR FENDER

PLATE,REAR FENDER

BOLT,HEX HEAD,8X42

WASHER PLAIN 8MM

WASHER SPRING 8MM

NUT,8MM

SCREW PAN HEAD 6X12

WASHER PLAIN 6MM

WASHER SPRING 6MM

NUT 6MM

SCREW-PAN-CROS,6X14
