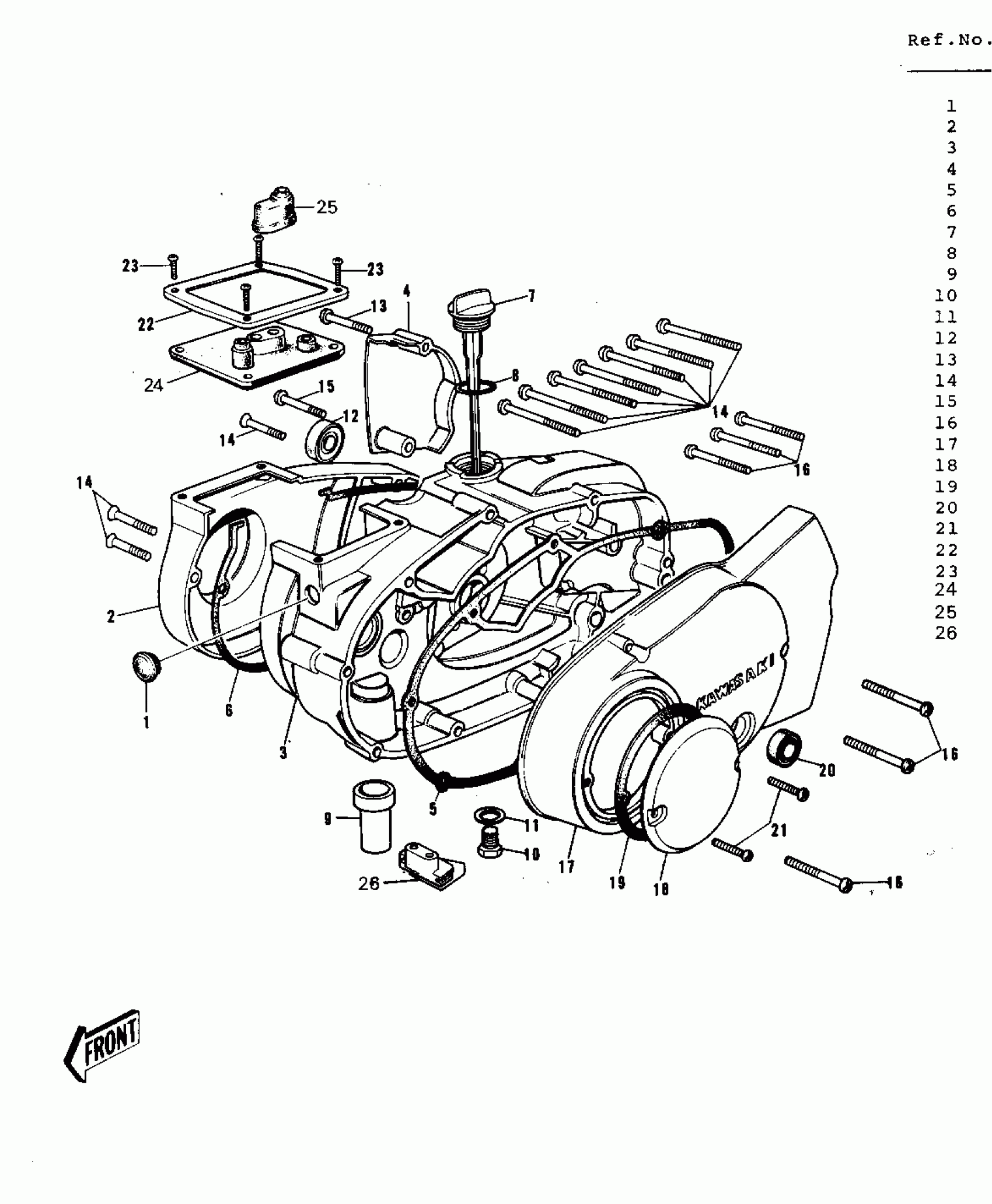

Kawasaki G3SS-D ENGINE COVERS (G3SS-C) ('69-'73) Diagram
#
Description
Price
1
CAP,RUBBER
14039-001
$4.74
2
COVER-CARB,L.SILVER
14030-037-75
Unavailable
3
COVER-R.H ENG,SILVER
14032-072-75
Unavailable
4
COVER-OIL PUMP SILVER
14030-006-75
Unavailable
5
GASKET,CLUTCH COVER
11060-1198
$26.22
6
GASKET CARB COVER
14048-001
Unavailable
7
CAP-OIL FILLER
16115-018
$10.56
8
"0" RING,OIL FIL PLUG
92055-026
$2.35
9
DRAIN FUEL
16116-002
Unavailable
10
PLUG,DRAIN,10X12
92067-001
$4.41
11
GASKET,10.5X16X1
92065-058
$3.96
12
OIL SEAL TB14257
653B142507
$21.16
13
SCREW PAN HEAD 6X25
220B0625
$2.60
14
SCREW PAN HEAD 6X30
220B0630
$3.41
15
SCREW PAN HEAD 6X35
220B0635
$1.63
16
SCREW PAN HEAD 6X45
220B0645
$1.71
17
COVER-L.H ENG,SILVER
14031-040-75
Unavailable
18
COVER-BRK POINT,CR
14027-007-79
Unavailable
19
GASKET BREAKER COVER
14050-002
Unavailable
20
SEAL-OIL
92049-1249
$9.89
21
SCREW PAN HEAD 6X12
220B0612
Unavailable
22
HOLDER-CARBURETOR CAP
14065-004
Unavailable
23
SCREW PAN HEAD 5X10
220B0510
$0.69
24
CAP-CARBURETOR
14038-032
Unavailable
25
GROMMET CARB CAP
14038-006
$9.39
26
GROMMET OVERFLOW PIPE
16136-001
$3.02
