Description

Price

1

PISTON,STD

13001-061

Unavailable

1

PISTON-ENGINE,STD

13001-057

Unavailable

1

PISTON,0.020 O/S

13029-061

Unavailable

1

PISTON.0.020 O.S

13029-059

Unavailable

1

PISTON,0.040 O/S

13027-059

Unavailable

1

PISTON,0.040 O-S

13027-057

Unavailable

2

RING SET,STD

13008-047

Unavailable

2

RING SET,STD

13008-043

Unavailable

2

RING SET,0.020 O/S

13025-051

Unavailable

2

RING NET,0.020 O.S

13025-047

Unavailable

2

RING SET,0.040 O/S

13024-052

Unavailable

2

RING NET,0.040 O.S

13024-050

Unavailable

3

PIN-PISTON

13002-003

$16.11

4

RING-SNAP,PISTON PIN

92036-003

$0.65

5

BEARING-NEEDLE,KTV141817

13033-030

$27.43

6

CRANKSHAFT-COMP

13036-043

$408.49

7

CRANKSHAFT,L.H

13037-053

Unavailable

8

SET-CONNECTING ROD

13044-5015

$172.92

9

SHIM,T=1.0

92025-047

$8.18

10

PIN-CRANK

13035-025

Unavailable

11

BEARING-NEEDLE,KT192814

13034-034

$32.05

12

CRANK SHAFT,R.H

13038-049

Unavailable

13

ROLLER,4X10

610A0410

$4.31

14

KEY,WOODRUFF

92038-003

$5.37

15

COLLAR CRANKSHAFT

92027-022

Unavailable

16

O RING,16MM

670B2016

$1.36

17

VALVE ROTARY DISC

12001-004

Unavailable

18

WASHER,CLAW,12.5X25X0.8

92024-003

$4.78

19

NUT,12MM

92015-006

$5.59

20

KEY-WOODRUFF

510A3200

$2.70

21

WASHER SPRING 10MM

461F1000

$0.67

22

NUT-HEX-FINE,10MM

314B1000

$0.67

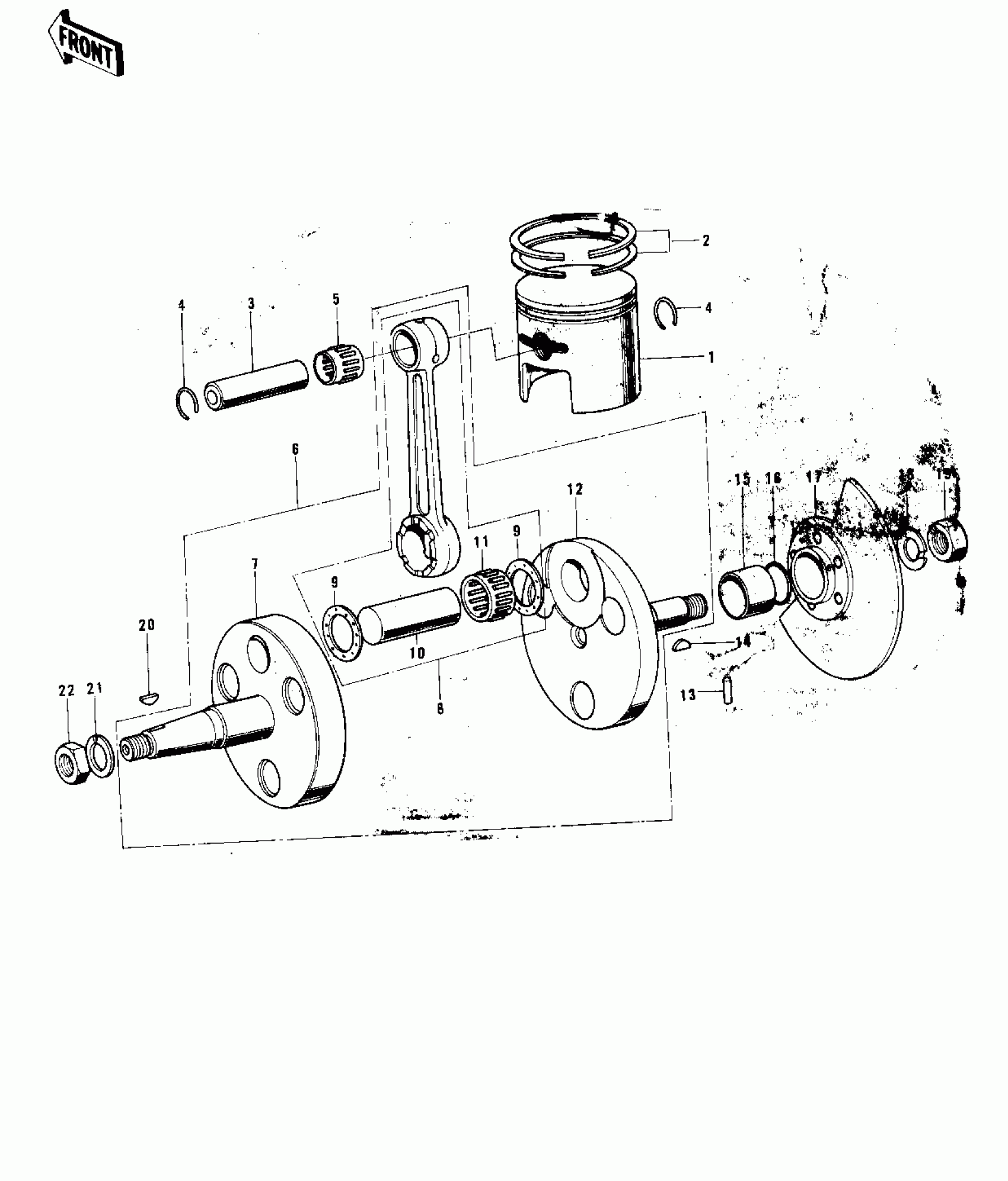

Kawasaki G3SS-D CRANKSHAFT/PISTON/ROTARY VALVE ('74-'75) Diagram

PISTON,STD

PISTON-ENGINE,STD

PISTON,0.020 O/S

PISTON.0.020 O.S

PISTON,0.040 O/S

PISTON,0.040 O-S

RING SET,STD

RING SET,STD

RING SET,0.020 O/S

RING NET,0.020 O.S

RING SET,0.040 O/S

RING NET,0.040 O.S

PIN-PISTON

RING-SNAP,PISTON PIN

BEARING-NEEDLE,KTV141817

CRANKSHAFT-COMP

CRANKSHAFT,L.H

SET-CONNECTING ROD

SHIM,T=1.0

PIN-CRANK

BEARING-NEEDLE,KT192814

CRANK SHAFT,R.H

ROLLER,4X10

KEY,WOODRUFF

COLLAR CRANKSHAFT

O RING,16MM

VALVE ROTARY DISC

WASHER,CLAW,12.5X25X0.8

NUT,12MM

KEY-WOODRUFF

WASHER SPRING 10MM

NUT-HEX-FINE,10MM
