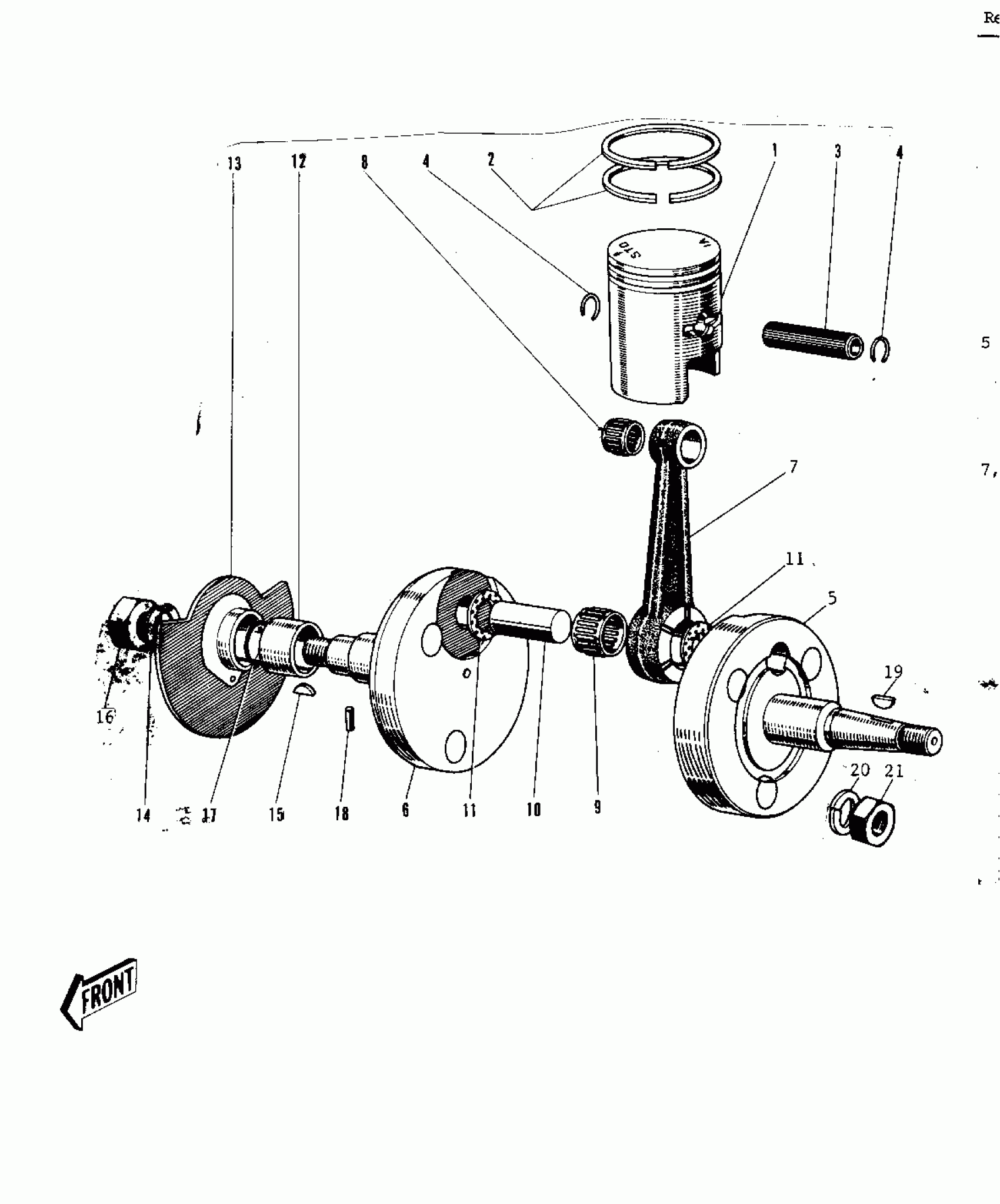

Kawasaki G3SS-D CRANKSHAFT/PISTON /ROTARY VALVE ('69-'73 Diagram
#
Description
Price
1
PISTON STD
13001-015
Unavailable
1
PISTON STD
13001-037
Unavailable
2
RING SET STD
13008-011
Unavailable
2
RING SET STD
13008-023
Unavailable
3
PIN
13002-007
$18.23
4
RING-SNAP,PISTON PIN
92036-007
$3.89
5~11
CRANK&CONROD ASSY
13036-034
Unavailable
5~11
CRANK&CONROD ASSY
13036-034
Unavailable
5
CRANKSHAFT L.H
13037-018
Unavailable
5
CRANKSHAFT,L.H
13037-044
Unavailable
6
CRANKSHAFT R.H
13038-012
Unavailable
6
CRANKSHAFT,R.H
13038-040
Unavailable
7,9~11
CONNECTING ROD SET
13044-008
Unavailable
7,9~11
CONNECTING ROD SET
13044-019
Unavailable
8
BEARING-NEEDLE,72KTV030
13033-028
Unavailable
9
NEEDLE BEARING BG END
13034-018
Unavailable
9
NEEDLE BEARING-BG END
13034-025
Unavailable
10
CRANK PIN
13035-008
Unavailable
10
PIN-CRANK
13035-025
Unavailable
11
SHIM,20X34.5X1.0
92025-005
$8.51
11
SHIM,T=1.0
92025-047
$8.18
12
COLLAR CRANKSHAFT
92027-022
Unavailable
13
VALVE ROTARY DISC
12001-004
Unavailable
14
WASHER,CLAW,12.5X25X0.8
92024-003
$4.78
15
KEY,WOODRUFF
92038-003
$5.37
16
NUT,12MM
92015-006
$5.59
17
O RING,16MM
670B2016
$1.36
18
ROLLER,4X8
610A0408
$4.31
19
KEY-WOODRUFF
510A3200
$2.70
20
WASHER SPRING 10MM
461F1000
$0.67
21
NUT-HEX-FINE,10MM
314B1000
$0.67
