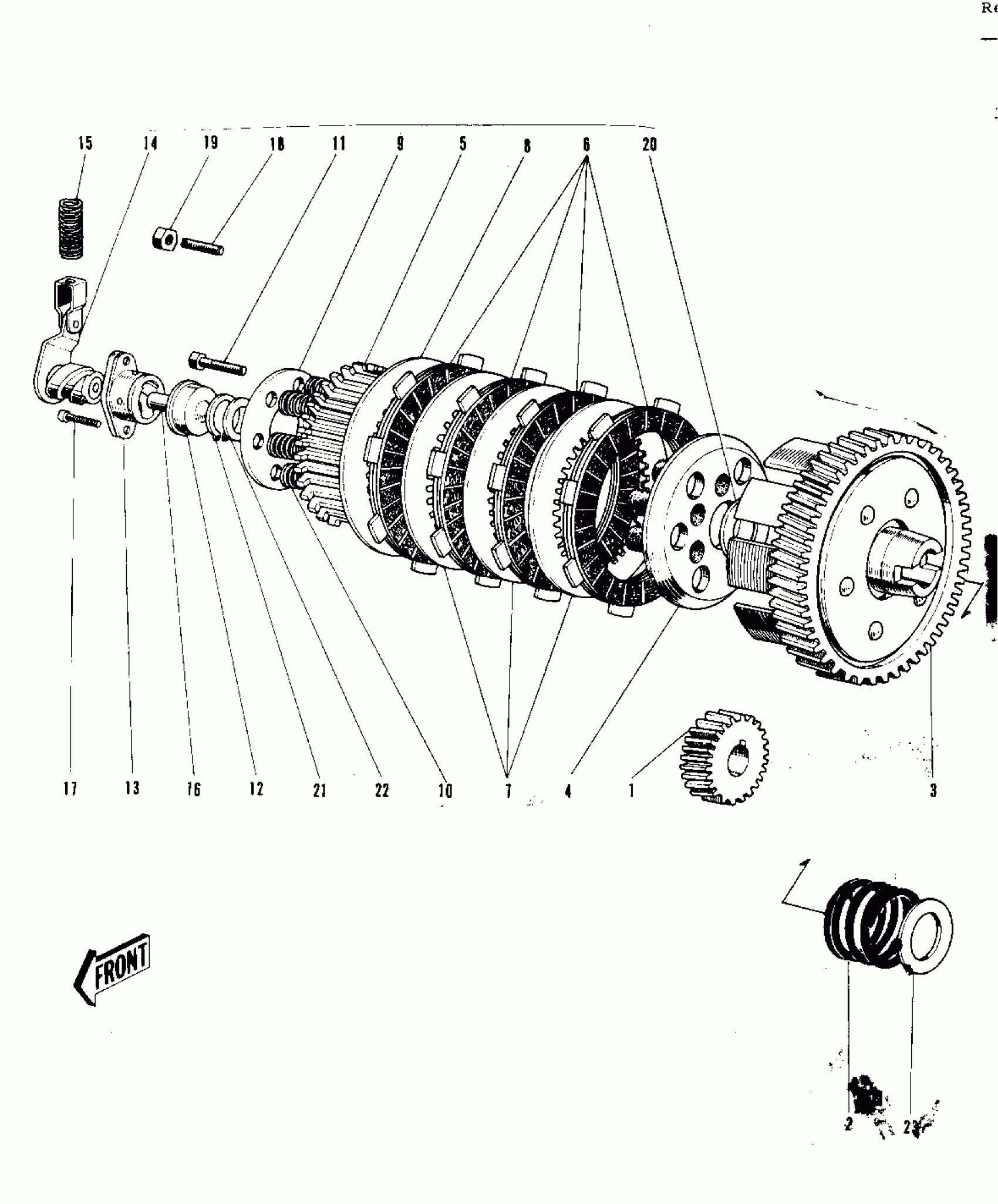

Kawasaki G3SS-D CLUTCH ('69-'73) Diagram

#

Description
Price

1

PINION,PRIMARY

13121-032

$93.41

2

SPRING,CLUTCH DAMPER

92081-015

$6.89

3~11

CLUTCH-ASSY

13081-028

Unavailable

3~11

CLUTCH-ASSY

13081-028

Unavailable

3

HOUSING-COMP-CLUTCH

13095-022

Unavailable

3

HOUSING-COMP-CLUTCH

13095-022

Unavailable

4

WHEEL-CLUTCH

13086-1002

$44.98

5

HUB-CLUTCH

13087-1011

$91.10

6

PLATE-FRICTION

13088-1103

Unavailable

7

PLATE-CLUTCH,STEEL

13089-1009

$14.05

8

PLATE CLUTCH OUTER

13090-004

Unavailable

9

HOLDER,CLUTCH SPRING

13091-1115

$18.40

10

SPRING,CLUTCH

92081-012

$6.87

11

BOLT HEX HEAD 5X12

110B0512

Unavailable

11

BOLT SMALL

114G0812

Unavailable

11

BOLT-UPSET

112G0516

Unavailable

12

PUSHER-COMP-CLUTCH

13113-003

$9.50

13

OUTER CLUTCH RELEASE

13118-001

Unavailable

14

INNER CLUTCH RELEASE

13102-004

Unavailable

15

SPRING,CLUTCH RELEASE

92081-096

$5.54

16

PIN DOWEL 7X10

610A0710

Unavailable

17

SCREW-PAN-CROS,6X16

220B0616

Unavailable

18

SCREW SLOTTED 6X28

291Z0628

Unavailable

19

NUT 6MM

311B0600

Unavailable

20

WASHER,16.5X27X1.4

92022-054

$8.19

21

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

22

WASHER,THRUST,16.5X21X0.8

92022-053

Unavailable

23

WASHER,25.5X36X1

92022-057

$4.38
