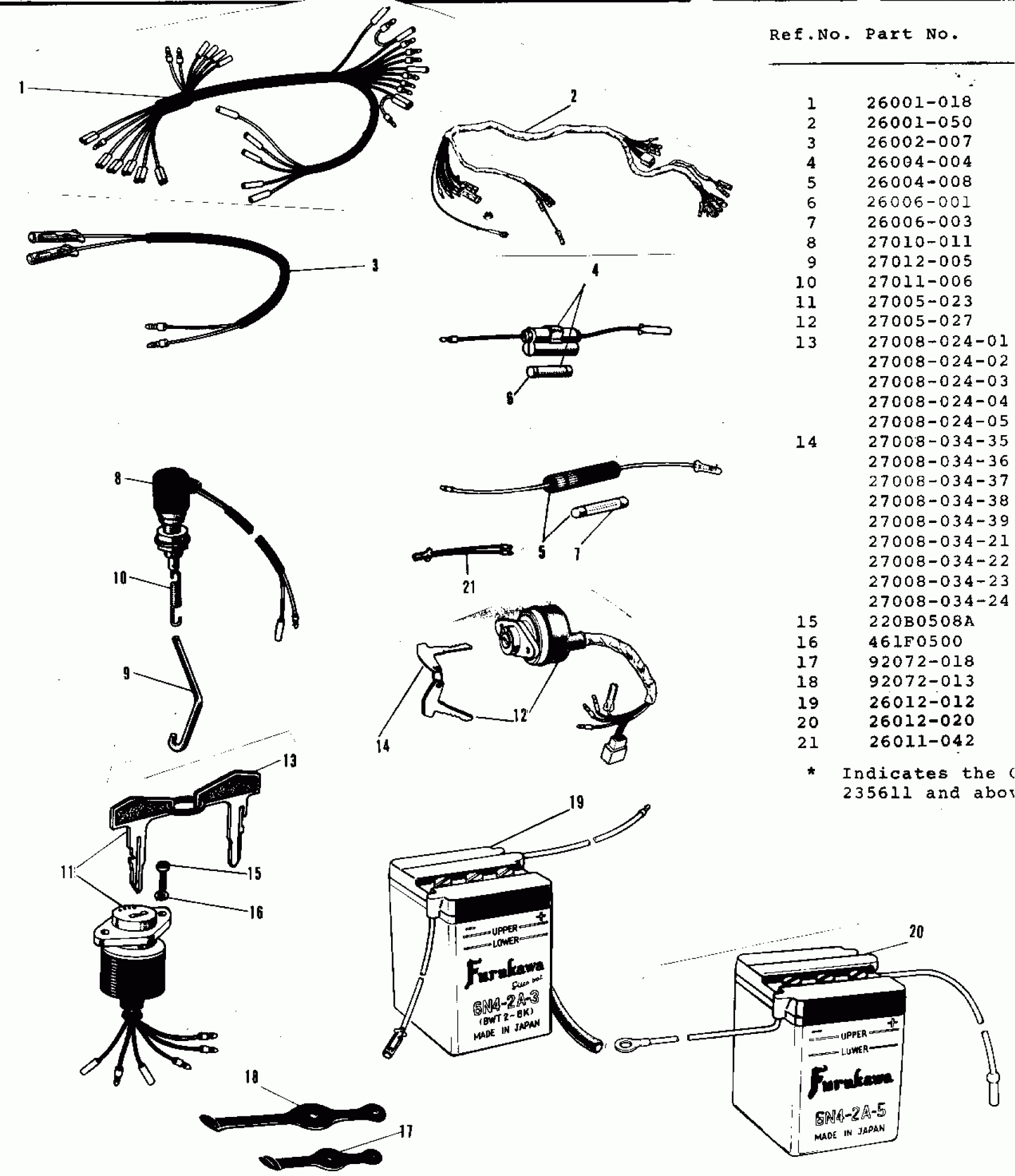

Kawasaki G3SS-D CHASSIS ELECTRICAL EQUIPMENT (EXCEPT G3S Diagram
#
Description
Price
1
WIRING HARNESS MAIN
26001-018
$29.08
2
WIRING HARNESS-MAIN
26001-050
$86.66
3
WIRING HARNESS REAR
26002-007
$6.07
4
FUSE ASSY
26004-026
Unavailable
5
FUES ASSY
26004-008
Unavailable
6
FUSE 10A
26006-001
Unavailable
7
FUSE,10A,L=25
26006-003
$4.72
8
SWITCH-BRAKE LAMP
27010-018
Unavailable
9
SPRING BRAKE LAMP SW
27012-005
$3.83
10
SPRING,BRAKE LAMP SWITCH
27011-006
$5.46
11
SWITCH-ASSY-IGNITION
27005-1059
$59.53
12
SWITCH ASSY,IGNITION
27005-1016
Unavailable
13
KEY SET NO.301
27008-024-01
$6.79
13
KEY SET NO.302
27008-024-02
$6.79
13
KEY SET NO.303
27008-024-03
Unavailable
13
KEY SET NO.304
27008-024-04
$7.03
13
KEY SET NO.305
27008-024-05
$8.13
14
KEY SET NO.235
27008-034-35
Unavailable
14
KEY SET NO.236
27008-034-36
$7.21
14
KEY SET NO.237
27008-034-37
$7.22
14
KEY SET NO.238
27008-034-38
Unavailable
14
KEY SET NO.239
27008-034-39
Unavailable
14
KEY SET NO.321
27008-034-21
Unavailable
14
KEY SET NO.322
27008-034-22
$17.01
14
KEY SET NO.323
27008-034-23
$7.04
14
KEY SET NO.324
27008-034-24
$16.85
15
SCREW PAN HEAD 5X8
220B0508
$0.46
16
WASHER SPRING 5MM
461F0500
$0.69
17
BAND RUBBER
92072-018
Unavailable
18
BAND RUBBER
92072-013
Unavailable
19
YUA BAT 6N4-2A-3
K26012-006
Unavailable
20
YUA BAT 6N4-2A-5
K26012-020
Unavailable
21
LEAD WIRE
26011-042
Unavailable
