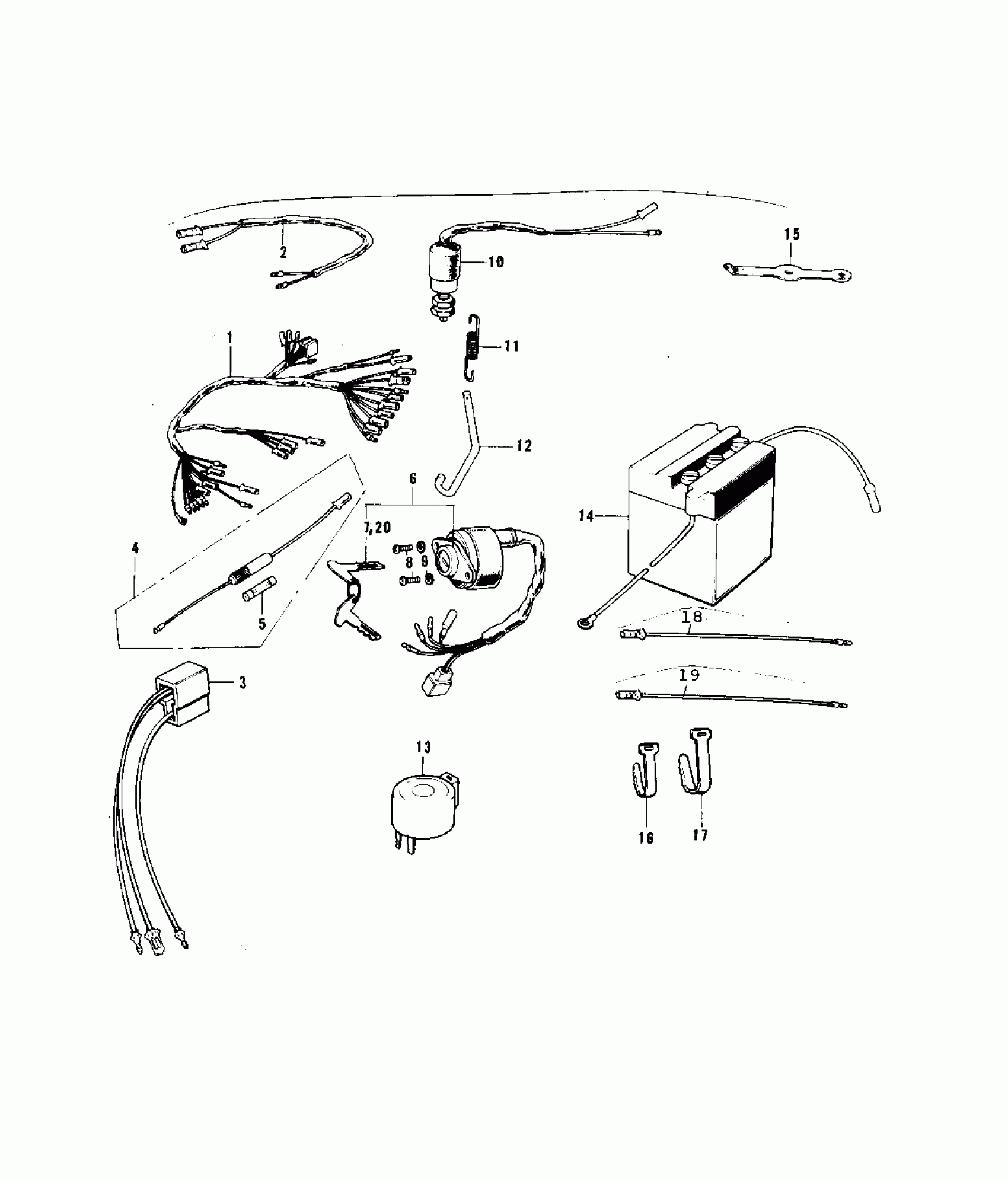

Kawasaki G3SS-D CHASSIS ELECTRICAL EQUIPMENT ('74-'75) Diagram
#
Description
Price
1
WIRING HARNESS,MAIN
26001-114
$77.94
1
WIRING HARNESS,MAIN
26001-126
Unavailable
2
WIRING HARNESS-REAR
26002-030
$17.17
3
WIRE,RECTIFIER LEAD
26011-072
Unavailable
4
FUES ASSY
26004-008
Unavailable
5
FUSE,10A,L=25
26006-003
$4.72
6
SWITCH ASSY,IGNITION
27005-1016
Unavailable
7
KEY SET NO.321
27008-034-21
Unavailable
7
KEY SET NO.322
27008-034-22
$17.01
7
KEY SET NO.323
27008-034-23
$7.04
7
KEY SET NO.324
27008-034-24
$16.85
7
KEY SET NO.235
27008-034-35
Unavailable
7
KEY SET NO.236
27008-034-36
$7.21
7
KEY SET NO.237
27008-034-37
$7.22
7
KEY SET NO.238
27008-034-38
Unavailable
7
KEY SET NO.239
27008-034-39
Unavailable
7
KEY SET NO.140
27008-034-40
Unavailable
7
KEY SET NO.141
27008-034-41
$9.17
7
KEY SET NO.142
27008-034-42
$16.85
7
KEY SET NO.143
27008-034-43
$7.58
8
SCREW-PAN-CROS
220B0512
$0.47
9
WASHER SPRING 5MM
461F0500
$0.69
10
SWITCH-BRAKE LAMP
27010-018
Unavailable
10
SWITCH-BRAKE LAMP
27010-018
Unavailable
11
SPRING,BRAKE LAMP SWITCH
27011-006
$5.46
12
SPRING BRAKE LAMP SW
27012-005
$3.83
13
RELAY-ASSY,TURN SIGNAL
27002-013
Unavailable
14
YUA BAT 6N4-2A-5
K26012-020
Unavailable
15
BAND RUBBER
92072-018
Unavailable
16
BAND,L=149
92072-031
$5.00
17
BAND,L=218
92072-032
$5.00
18
WIRE-LEAD
26011-032
$3.11
19
WIRE-LEAD
26011-032
$3.11
20
KEY,BLANK
27008-1016
$9.98
20
KEY,BLANK
27008-1017
$10.02
20
KEY,BLANK
27008-1018
$15.01
20
KEY,BLANK
27008-1019
$15.01
