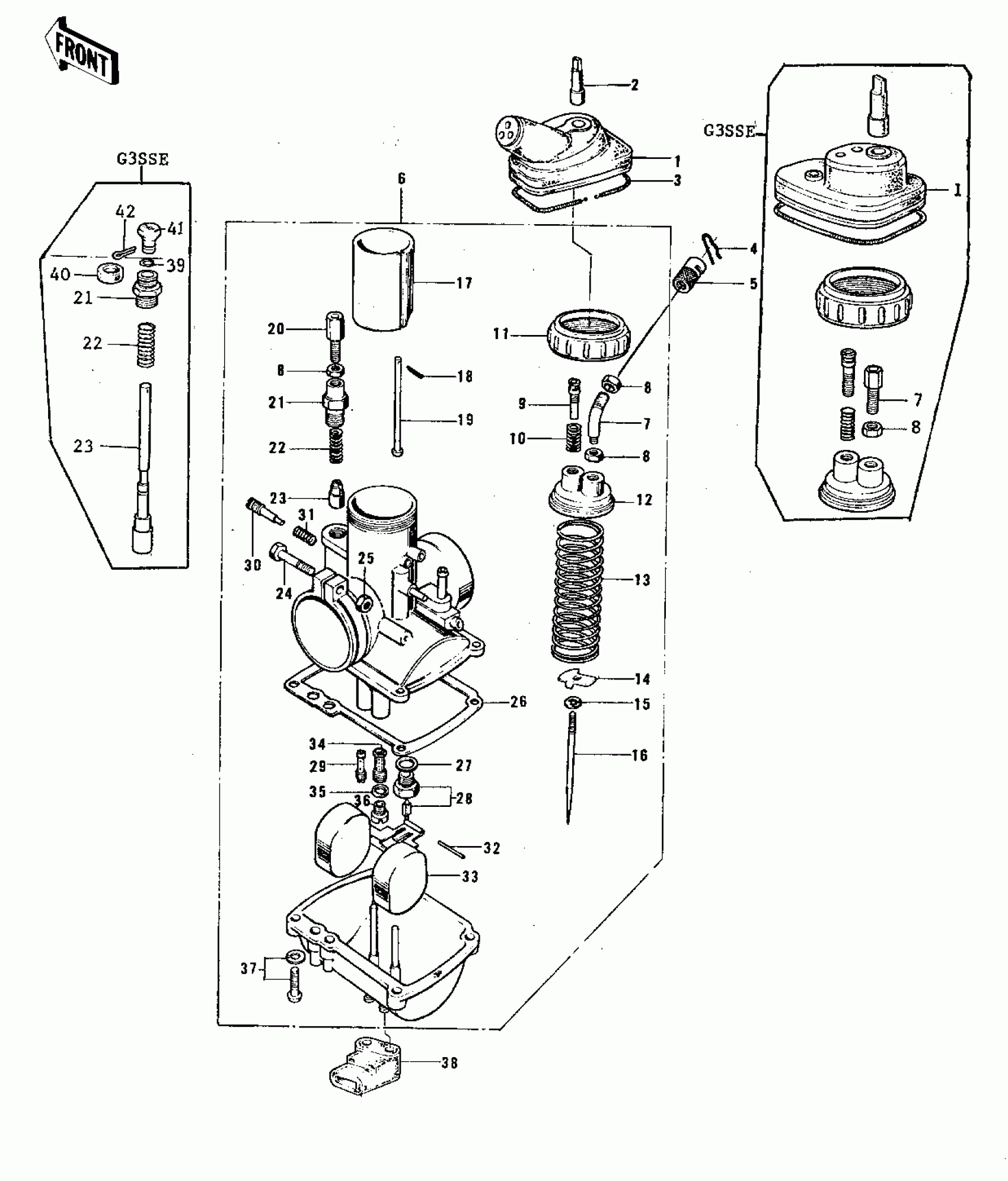

Kawasaki G3SS-D CARBURETOR ('74-'75) Diagram

#

Description
Price

1

CAP,CARBURETOR

14038-033

Unavailable

1

BOOT,CARBURETOR

14038-035

Unavailable

2

PLUG,12X40

16147-001

$5.17

3

SPRING COIL

92081-047

$11.29

4

RING-SNAP

92036-018

$3.89

5

CABLE ADJUSTER

16002-007

$11.09

6

CARBURETOR ASSY

16001-194

Unavailable

6

CARBURETOR ASSY,

16001-230

Unavailable

7

CABLE GUIDE

16077-001

$9.02

7

CABLE ADJUSTER

16002-002

$11.83

8

NUT,CABLE ADJUST LOCK

16003-004

$7.34

8

NUT,CABLE ADJUST LOCK

16003-004

$7.34

9

SCREW THROTTLE STOP

16021-007

$5.66

10

SPRING,THROTTLE STOP SCREW

16022-005

$8.68

11

CAP-CHAMBER,MIXING

16004-010

$20.59

12

TOP-CHAMBER,MIXING

16005-005

$20.79

13

SPRING,THROTTLE VALVE

16006-013

$15.02

14

SEAT-SPRING,THROTTLE VALVE

16007-020

$10.97

15

CLAMP,E-TYPE

16008-010

$9.21

16

NEEDLE-JET,4EJ7

16009-059

$37.51

17

VALVE-THROTTLE,CA2.0

16025-057

Unavailable

18

PIN COTTER 1.2X10

550D1210

$2.65

19

ROD,THROTTLE VLV STP

16024-012

Unavailable

20

CABLE ADJUSTER

16002-002

$11.83

21

CAP STARTER PLUNGER

16012-004

$11.80

21

CAP-STARTER PLUNGER

16012-021

$15.94

22

SPRING-PLUNGER

16013-003

$6.16

22

SPRING,STARTER PLUNGER

16013-010

Unavailable

23

PLUNGER,STARTER

16016-002

$31.85

23

PLUNGER,STARTER

16016-012

$40.35

24

SCREW,CLAMP

16010-004

$5.57

25

NUT 6MM

311B0600

$0.93

26

GASKET,FLOAT CHAMBER

16019-021

$20.79

27

GASKET,FLOAT VALVE SEAT

16029-002

$4.46

28

VALVE-FLOAT,#2.0

16030-001

$56.16

29

JET-PILOT,#17.5

92064-020

Unavailable

30

SCREW-PILOT AIR

16014-002

$18.22

31

SPRING,PILOT AIR SCREW

16022-007

$8.13

32

PIN,FLOAT

16032-003

$6.57

33

FLOAT

16031-015

$56.16

34

NEEDLE JET O-Z

16017-068

$55.22

35

WASHER,MAIN JET

16034-001

$4.31

36

JET-MAIN,#A77.5R

92063-1032

Unavailable

38

GROMMET,OVERFLOW PIPE

16136-007

Unavailable

39

CLAMP

92037-1077

Unavailable

40

BOOT,STARTER PLUNGER

16036-012

$11.46

41

KNOB,CARBURETOR

92077-022

$10.64

42

PIN-COTTER,1.6X15

550D1615

$2.51
