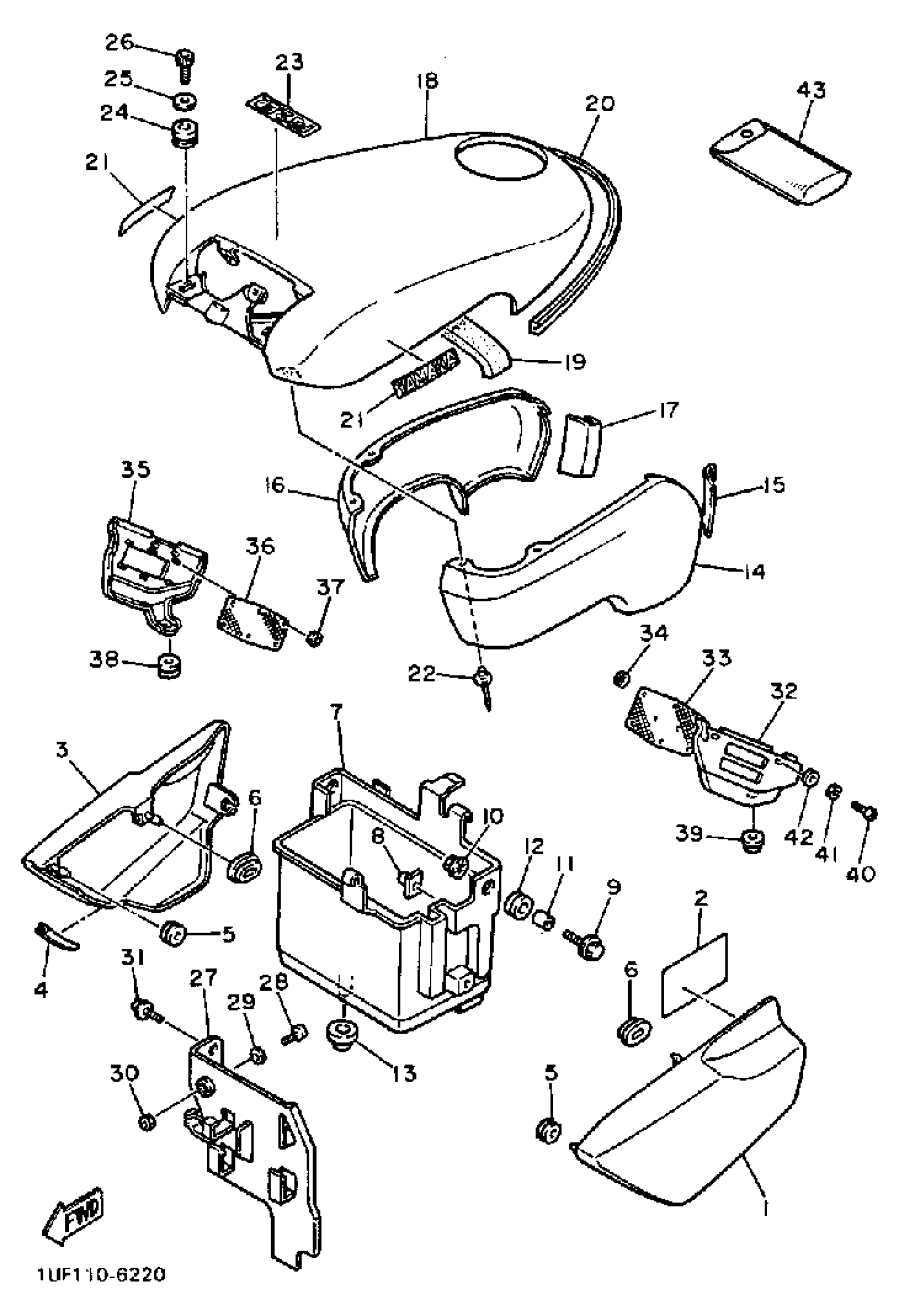

Yamaha FZX700SC (FAZER CA) 1986 SIDE COVER CALIFORNIA MODEL ONLY Diagram

#

Description
Price

1

COVER, SIDE 1

1UF-21711-00-LG

Unavailable

1

COVER, SIDE 1

1UF-21711-00-TF

Unavailable

2

COVER, SIDE 2

1UF-21721-00-LG

Unavailable

2

COVER, SIDE 2

1UF-21721-00-TF

Unavailable

2

PLATE, SPEC

(1UH-21687-60-00)

Unavailable

2

PLATE, SPEC

(1UH-21687-70-00)

Unavailable

4

MOLD, SIDE COVER 1

1UF-2171L-01-00

Unavailable

5

GROMMET (431)

90480-14052-00

$5.60

6

GROMMET(41Y)

90480-01401-00

$8.49

7

BOX

36Y-21245-00-00

Unavailable

8

PLATE

31A-14477-10-00

Unavailable

9

BOLT, WITH WASHER(2WG)

90119-06172-00

$10.49

10

NUT, FLANGE(7NB)

95780-06500-00

$2.60

11

COLLAR

90387-06113-00

$11.49

12

GROMMET (2N3)

90480-16233-00

$8.49

13

GROMMET

90480-23192-00

Unavailable

14

COVER, SIDE 3

1UF-21731-00-00

Unavailable

14

COVER, SIDE 3

1UF-21731-10-00

Unavailable

15

MOLD, SIDE COVER 1

1UF-2171L-00-00

Unavailable

16

COVER, SIDE 4

1UF-21741-00-00

Unavailable

16

COVER, SIDE 4

1UF-21741-10-00

Unavailable

17

MOLD, SIDE COVER 2

1UF-2171M-00-00

Unavailable

18

COVER, TOP (FUEL TANK)

1UF-Y217F-30-33

Unavailable

19

DAMPER, LOCATING 1

1UF-21778-00-00

Unavailable

20

MOLD, SIDE COVER 3

1UF-2171N-00-00

Unavailable

21

. EMBLEM

1UF-28338-10-00

Unavailable

21

EMBLEM, YAMAHA

99246-00080-00

Unavailable

22

RIVET, BLIND

90267-32091-00

Unavailable

23

. EMBLEM 1

1UF-21781-00-00

Unavailable

24

GROMMET(1UF)

90480-14450-00

Unavailable

25

NUT, SPEC''L SHAPE

(90179-06529-00)

Unavailable

26

BOLT,SOCKET

91317-06016-00

Unavailable

27

PLATE, BRIDGE

(1UF-21243-00-00)

Unavailable

28

SCREW, PAN

98507-06014-00

Unavailable

29

WASHER, PLAIN (646)

92990-06600-00

Unavailable

30

NUT(650)

95380-06700-00

Unavailable

31

SCREW, WITH WASHER(35R)

90159-06093-00

Unavailable

32

PANEL 1

1UF-2172A-00-00

Unavailable

33

PANEL 2

1UF-2172G-00-00

Unavailable

34

WASHER(1FK)

90209-03274-00

Unavailable

35

PANEL 2

1UF-2172F-00-00

Unavailable

36

PANEL 1

(1UF-2172H-00-00)

Unavailable

37

WASHER(1FK)

90209-03274-00

Unavailable

38

GROMMET(3AK)

90480-18495-00

Unavailable

39

GROMMET (2H7)

90480-11224-00

Unavailable

40

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

41

WASHER, SPRING

92907-06100-00

Unavailable

42

WASHER(6TA)

92907-06600-00

Unavailable

43

TOOL KIT

1UF-28100-00-00

Unavailable
