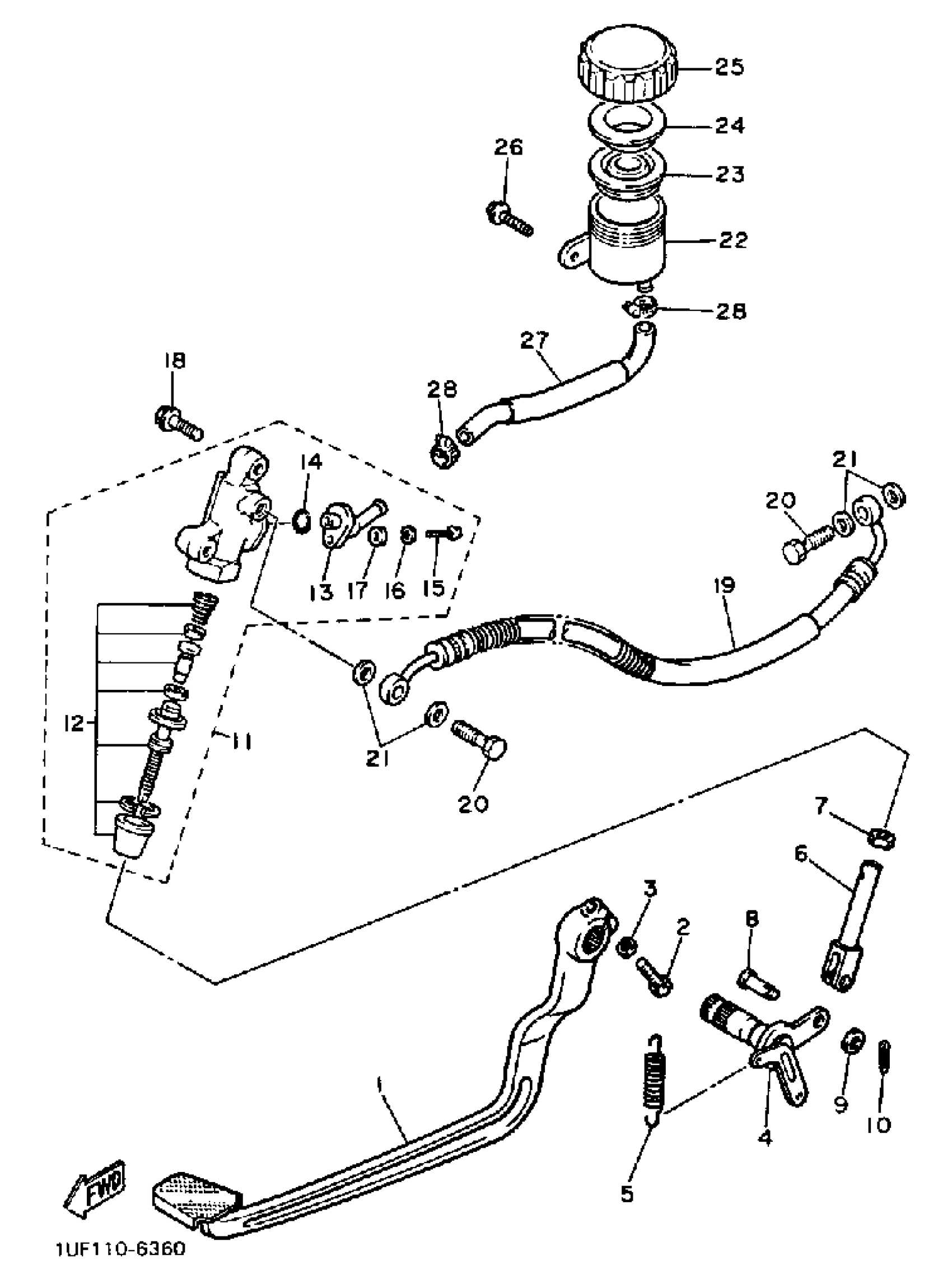

Yamaha FZX700SC (FAZER CA) 1986 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

1UF-27211-00-00

Unavailable

2

BOLT (1J7)

90109-06468-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SHAFT, BRAKE PEDAL

1UF-27212-00-00

Unavailable

5

SPRING, TENSION (2X3)

90506-20193-00

$14.99

6

JOINT

(1UF-27222-00-00)

Unavailable

7

. NUT

95380-08700-00

Unavailable

8

PIN W/HOLE 307181180000

90240-08013-00

$8.49

9

WASHER, PLATE 1562722600

90201-08083-00

$9.49

10

PIN, COTTER

91490-20025-00

$1.99

11

MSTR CYLINDER ASSEMBLY

1UF-25850-50-00

Unavailable

12

CYLINDER KIT, MASTER

2YK-W0042-50-00

$99.99

13

CONNECTOR

(47X-2582A-50-00)

Unavailable

14

O-RING (22U)

93210-15566-00

$7.49

15

SCREW, PAN HEAD

98511-04012-00

Unavailable

16

WASHER(6TA)

92907-04100-00

Unavailable

17

WASHER, PLAIN (646)

92990-04600-00

Unavailable

18

BOLT, SMALL FLANGE

95027-08020-00

Unavailable

19

HOSE,BRAKE 1

99999-02408-00

Unavailable

20

BOLT, UNION(3GM)

90401-10159-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

TANK, RESERVOIR

31A-25894-01-00

Unavailable

23

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

24

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

25

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

26

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

27

HOSE, RESERVOIR

(1UF-25895-00-00)

Unavailable

28

CLIP (5K4)

90467-14057-00

Unavailable
