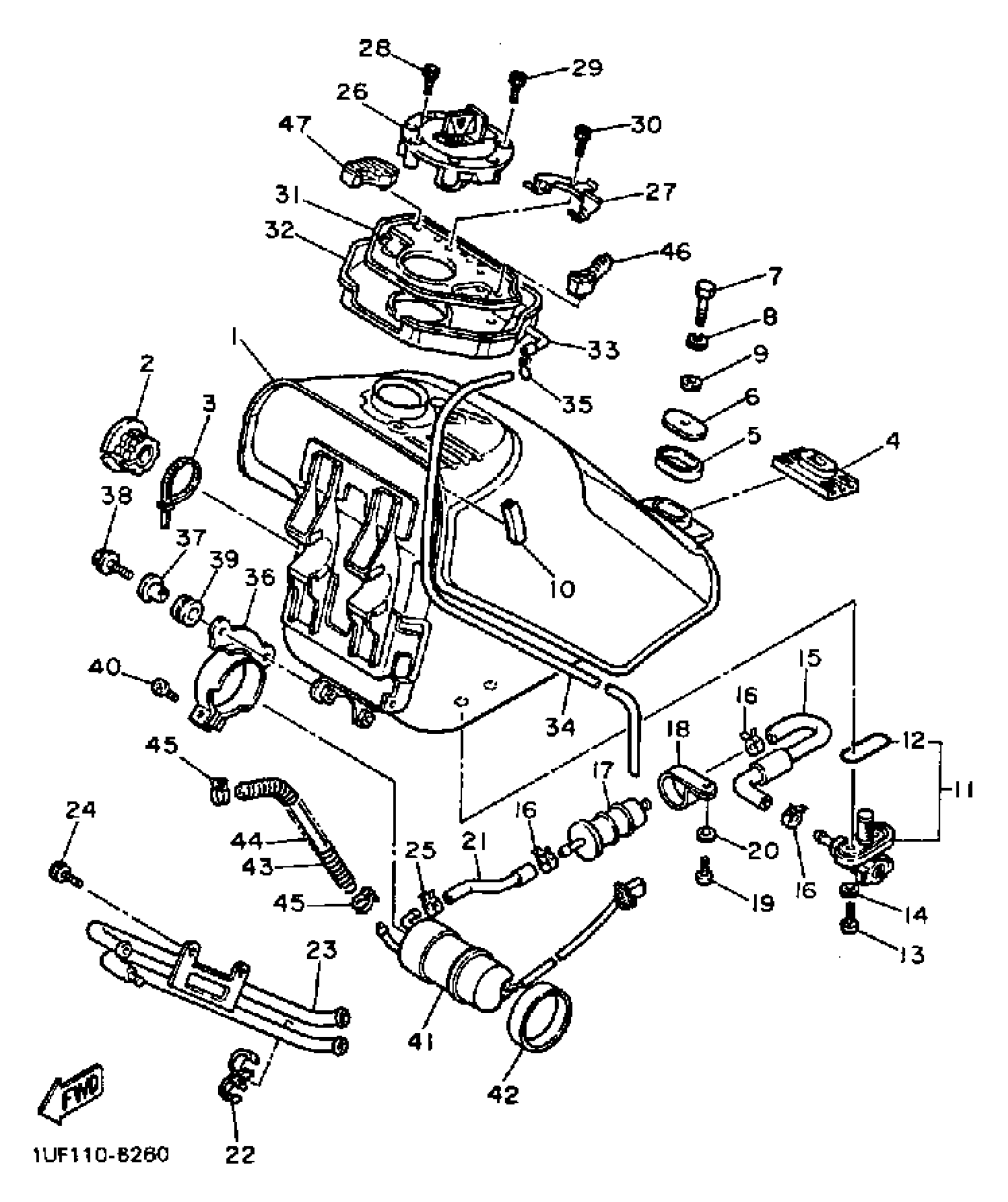

Yamaha FZX700SC (FAZER CA) 1986 FUEL TANK NON CALIFORNIA MODEL Diagram

#

Description
Price

1

FUEL TANK

3XF-YK241-00-LG

Unavailable

1

FUEL TANK

(1UF-24110-00-TF)

Unavailable

2

DAMPER, LOCATING 1

(1UF-24181-00-00)

Unavailable

3

CLAMP

5Y9-12491-00-00

$6.99

4

DAMPER, LOCATING 3

1AE-24183-00-00

Unavailable

5

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

6

WASHER, SPECIAL

36Y-24186-00-00

Unavailable

7

BOLT(3RV)

97014-06035-00

$2.75

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

SEAL

1JK-21268-00-00

$6.99

11

FUEL COCK ASSY 1

26H-24500-00-00

Unavailable

12

GASKET, BODY

214-24512-00-00

$30.99

13

SCREW 256241430000

90149-06011-00

$5.60

14

WASHER, PLATE(3MB)

90202-05187-00

$1.38

15

PIPE, FUEL 1

(1UF-24311-00-00)

Unavailable

16

CLIP (7K7)

90467-11044-00

Unavailable

17

FILTER ASSY

1FK-24560-10-00

Unavailable

18

CLAMP, FUEL PIPE 1

4BR-24366-00-00

Unavailable

19

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

$2.80

21

PIPE 5

(1UF-24315-00-00)

Unavailable

22

CLAMP(6R3)

90464-13M34-00

Unavailable

23

PIPE 11

1UF-24322-00-00

Unavailable

24

BOLT,SOCKET

91317-06016-00

Unavailable

25

CLIP(42X)

90467-10091-00

Unavailable

26

CAP ASSEMBLY

2JE-24602-02-00

Unavailable

27

STOPPER, PLATE

1UF-24639-00-00

Unavailable

28

BOLT, HEX SKT HEAD

90110-05119-00

Unavailable

29

BOLT, HEX SKT HEAD

90110-05120-00

Unavailable

30

BOLT, SOCKET

91317-05020-00

Unavailable

31

FILLER, BOX

1UF-2413H-00-00

Unavailable

32

COVER, FILLER

1UF-2414A-00-00

Unavailable

33

PIPE, JOINT 1

1FK-24376-00-00

Unavailable

34

HOSE (L1500)

90445-090F6-00

Unavailable

35

CLIP (16G)

90467-08021-00

Unavailable

36

BRACKET, fuel pump

1HX-24491-00-00

Unavailable

37

COLLAR(1HX)

90387-061N0-00

Unavailable

38

BOLT, FLANGE

95817-06016-00

Unavailable

39

GROMMET (1E5)

90480-13163-00

Unavailable

40

SCREW, PAN HEAD

90157-05M19-00

Unavailable

41

FUEL PUMP COMP.

1UF-13907-00-00

Unavailable

42

BAND, COIL FITTING

(4W8-82311-00-00)

Unavailable

43

SPRING, COMPRESSION

(90501-081E6-00)

Unavailable

44

HOSE

(90445-125E4-00)

Unavailable

45

HOSE CLAMP ASSY

90450-12002-00

Unavailable

46

DAMPER

1UF-21746-00-00

Unavailable

47

DAMPER

1UF-21747-00-00

Unavailable
