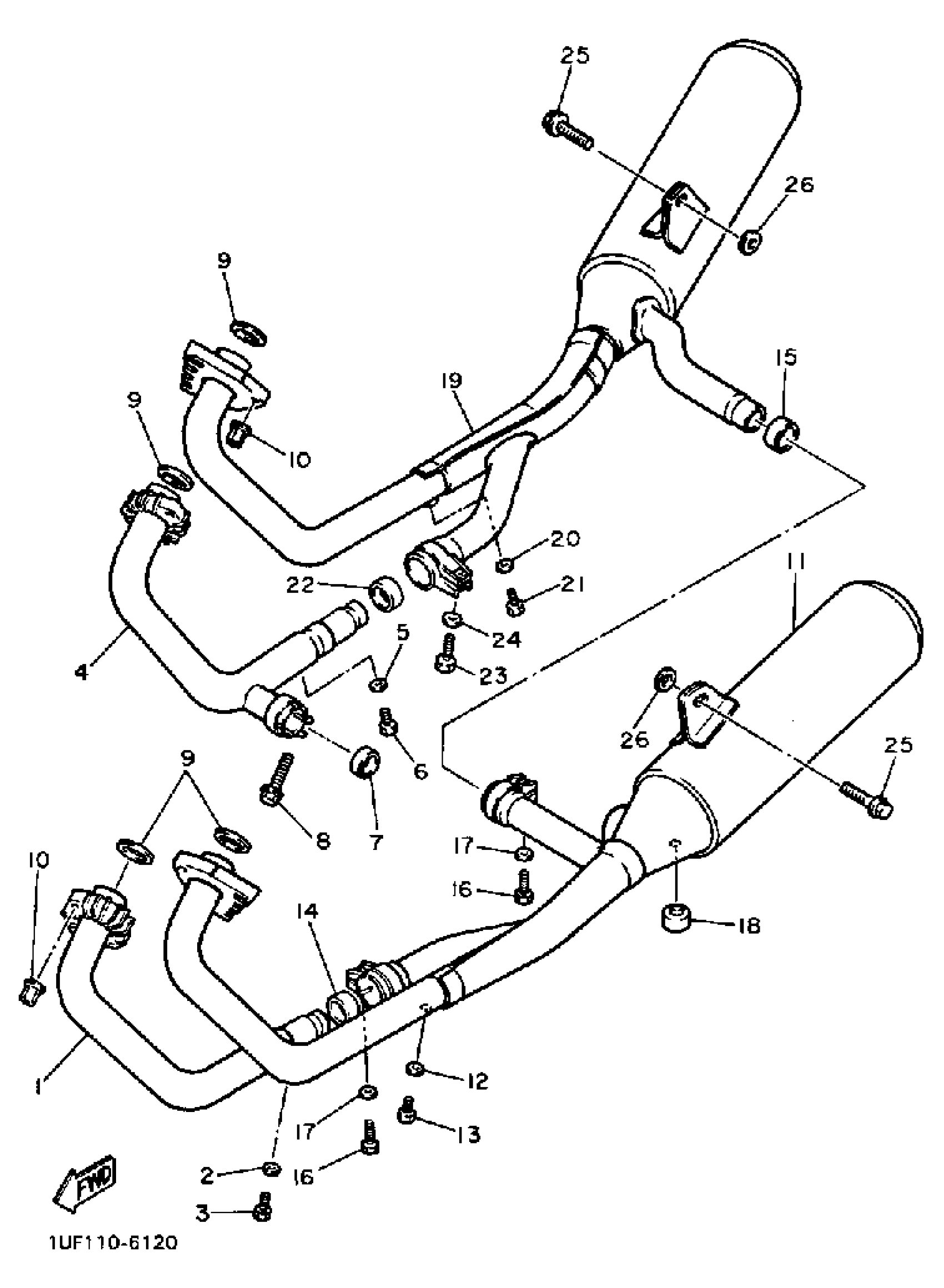

Yamaha FZX700SC (FAZER CA) 1986 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST R

1UF-14621-00-00

Unavailable

2

WASHER, PLAIN (646)

92990-06600-00

$1.03

3

BOLT (11T)

90101-06576-00

$6.03

4

PIPE, EXHAUST 3

1UF-14631-00-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$1.03

6

BOLT (11T)

90101-06576-00

$6.03

7

GASKET, MUFFLER

4FU-14714-10-00

$17.55

8

BOLT, FLANGE

95817-08035-00

$6.22

9

GASKET, EXHAUST PIPE

4BR-14613-00-00

$5.23

10

NUT (1AE)

90179-06500-00

$4.15

11

MUFFLER 1

1UF-14703-00-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$1.03

13

BOLT (11T)

90101-06576-00

$6.03

14

GASKET, MUFFLER

3YF-14714-00-00

$27.78

15

GASKET, SILENCER

3XW-14755-00-00

Unavailable

16

BOLT (682)

97013-08025-00

Unavailable

17

.. WASHER, PLATE

92990-08600-00

$2.17

18

STOPPER MAIN STAND

278-27114-00-00

Unavailable

19

MUFFLER COMP 2

1UF-14704-00-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

$1.03

21

BOLT (11T)

90101-06576-00

$6.03

22

GASKET, MUFFLER

3YF-14714-00-00

$27.78

23

BOLT (682)

97013-08025-00

Unavailable

24

.. WASHER, PLATE

92990-08600-00

$2.17

25

BOLT, FLANGE(4FM)

95814-08035-00

Unavailable

26

WASHER (29L)

90209-08249-00

Unavailable
