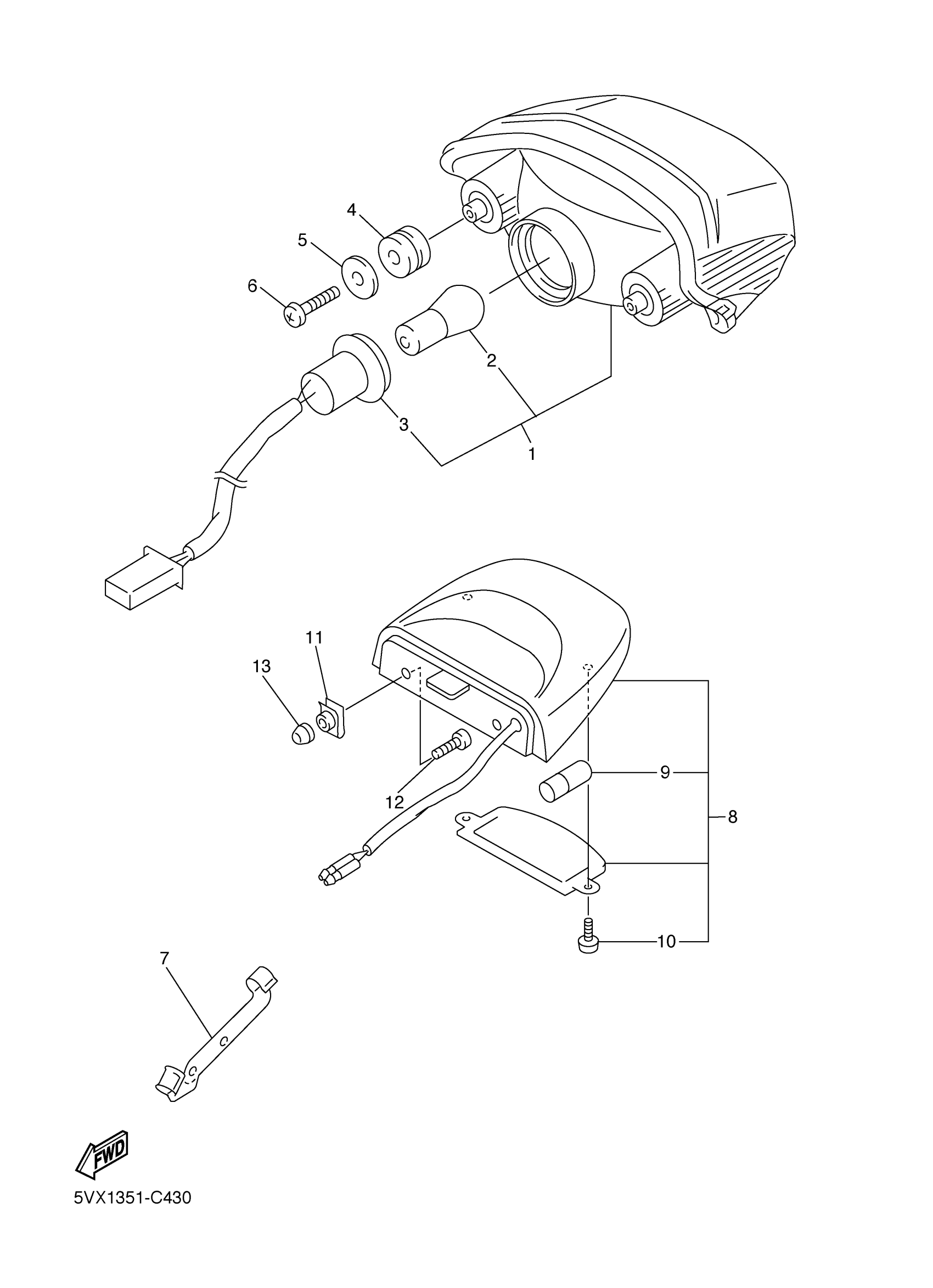

Yamaha FZS6YL (FZ6) 4S8D0 2009 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

5VX-84710-10-00

Unavailable

2

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

3

CORD ASSY

5VX-84735-00-00

Unavailable

4

GROMMET (4L0)

90480-18276-00

$8.49

5

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

6

SCREW, TRUSS TAP.

97707-60016-00

$1.70

7

CLAMP, WIRE

5VX-21637-00-00

Unavailable

8

LICENCE LIGHT UNIT ASSY

5VX-84745-01-00

$98.99

9

BULB

4SV-84347-00-00

$8.99

10

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

11

NUT, SPRING(3GM)

90183-05061-00

$5.60

12

SCREW, BINDING

98907-05014-00

$8.49

13

PLUG, BLIND

5VX-13569-01-00

$6.99
