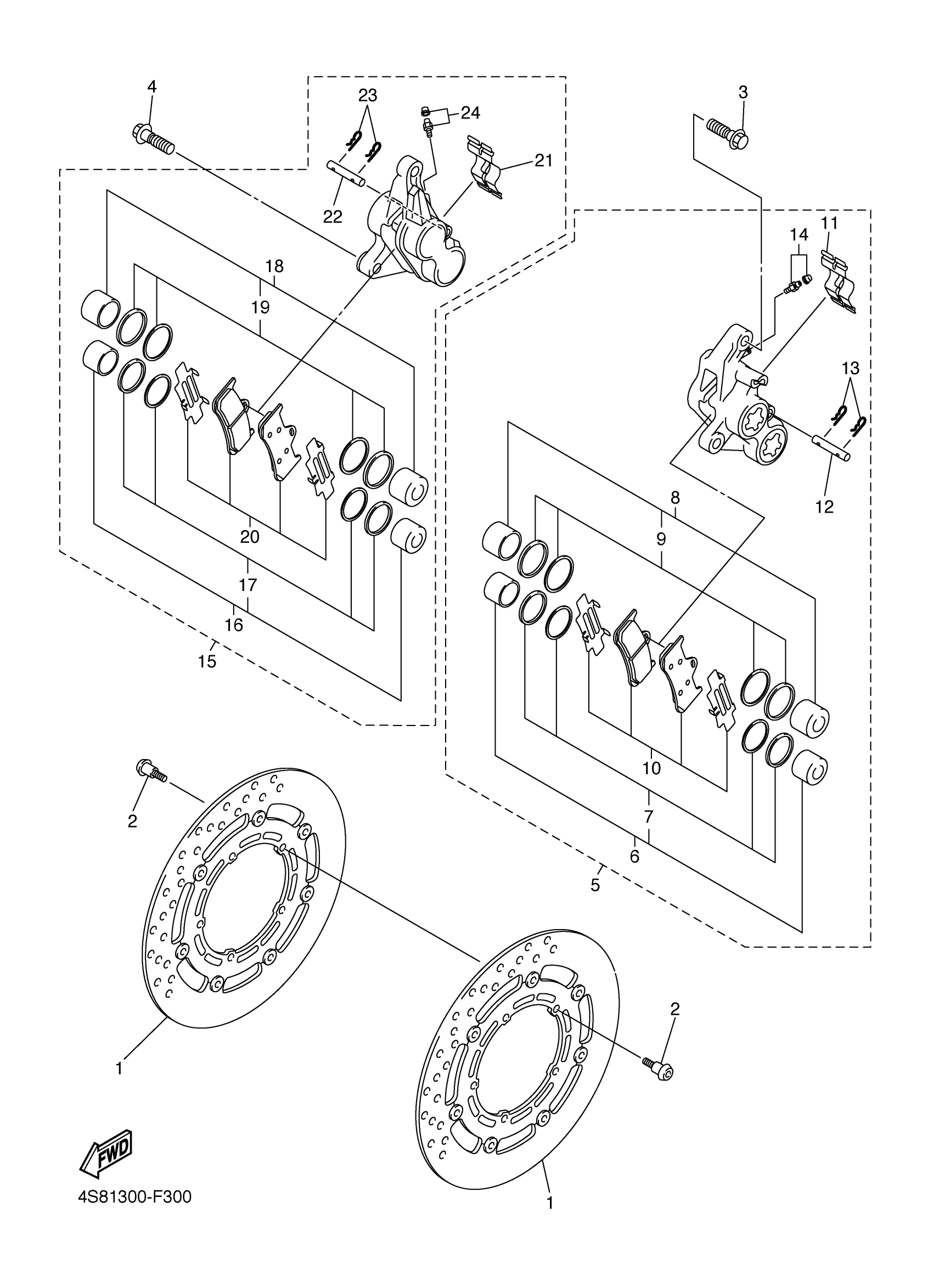

Yamaha FZS6YL (FZ6) 4S8D0 2009 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

5VX-2581T-01-00

$424.99

2

BOLT

90109-06254-00

$8.49

3

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

4

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

5

CALIPER ASSY (LEFT)

4S8-2580T-00-00

Unavailable

5

CALIPER ASSY (LEFT)

4S8-2580T-10-00

Unavailable

6

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

7

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

8

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

9

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

10

BRAKE PAD KIT

5VN-25805-00-00

$64.99

11

SUPPORT, PAD

4SV-25919-00-00

$35.99

12

PIN, PAD

4SV-25924-00-00

$42.99

13

CLIP, PAD PIN

3GM-25925-00-00

$11.99

14

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

15

CALIPER ASSY (RIGHT)

4S8-2580U-00-00

Unavailable

15

CALIPER ASSY (RIGHT)

4S8-2580U-10-00

Unavailable

16

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

17

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

18

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

19

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

20

BRAKE PAD KIT

5VN-25805-00-00

$64.99

21

SUPPORT, PAD

4SV-25919-00-00

$35.99

22

PIN, PAD

4SV-25924-00-00

$42.99

23

CLIP, PAD PIN

3GM-25925-00-00

$11.99

24

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable
