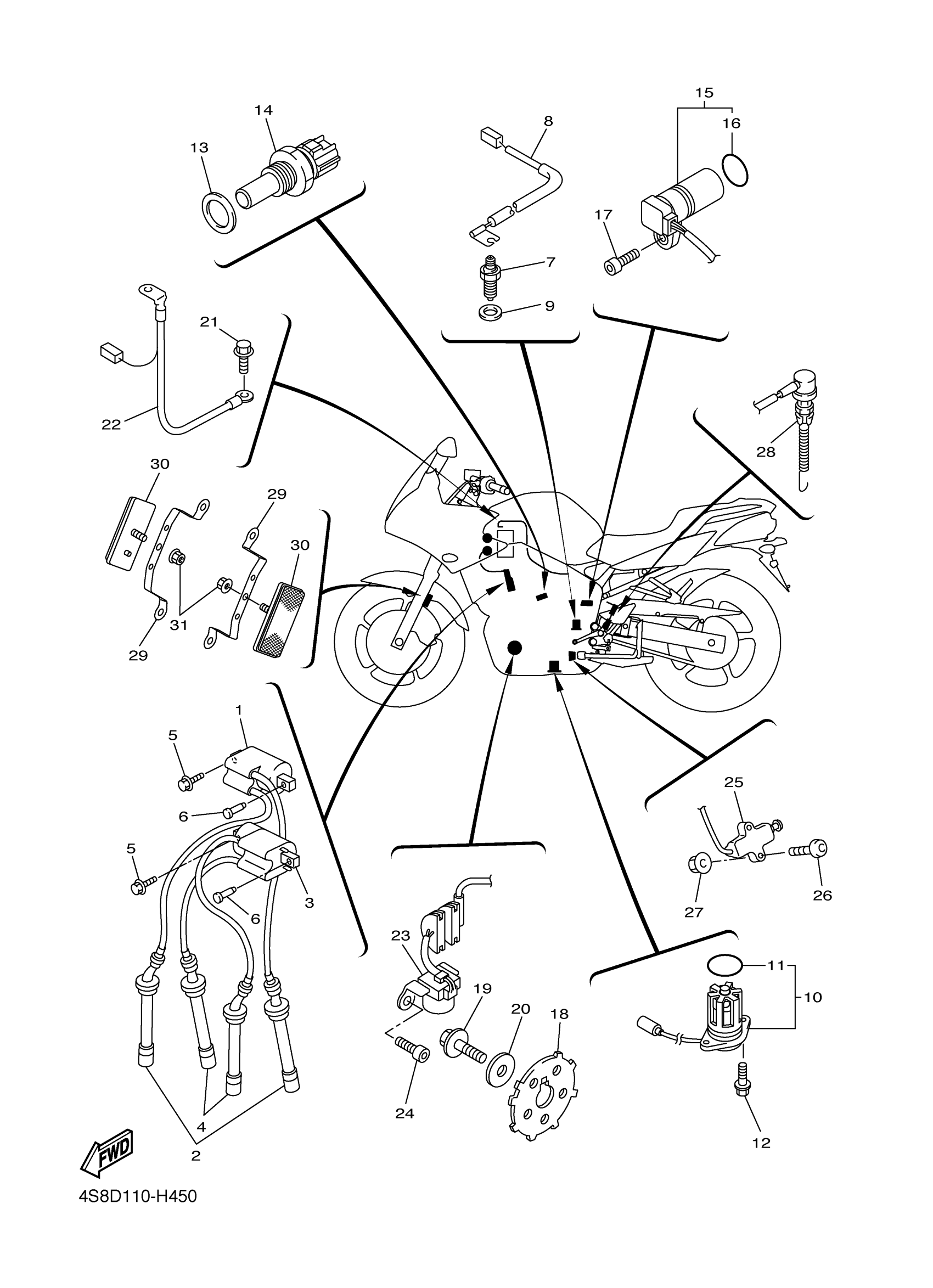

Yamaha FZS6YL (FZ6) 4S8D0 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

5VX-82310-00-00

$196.99

2

PLUG CAP ASSY

5VX-82370-00-00

Unavailable

3

IGNITION COIL ASSY

5VX-82320-00-00

$173.99

4

PLUG CAP ASSY

5VX-82370-00-00

Unavailable

5

BOLT, FLANGE

95817-06020-00

$3.81

6

RIVET

90269-06010-00

$7.49

7

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

8

WIRE, LEAD

5VX-82541-00-00

Unavailable

9

GASKET (1KH,1.0T)

90430-10148-00

$5.60

10

OIL LEVEL GAUGE ASSY

5VX-85720-01-00

$216.99

11

O-RING

5VY-8A8E0-00-00

$14.49

12

BOLT, FLANGE

95022-06016-00

$3.62

13

WASHER, PLATE

90201-12790-00

$9.49

14

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

15

SENSOR, SPEED

5EB-83755-02-00

Unavailable

16

O-RING

4D9-81168-00-00

Unavailable

17

BOLT(3MA)

91312-06016-00

Unavailable

18

ROTOR

5VX-81673-00-00

Unavailable

19

BOLT, WASHER BASED

90105-08113-00

Unavailable

20

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

21

BOLT

91380-06012-00

Unavailable

22

WIRE, MINUS LEAD

5VX-82116-00-00

Unavailable

23

PICK-UP ASSY

5VX-81670-03-00

Unavailable

24

BOLT,SOCKET

91317-06016-00

Unavailable

25

SWITCH, SIDE STAND

5VS-82566-62-00

Unavailable

26

BOLT, BUTTON HEAD

92017-05025-00

Unavailable

27

NUT, S/L FLANGE

95607-05200-00

Unavailable

28

STOP SWITCH ASSY

5VX-82530-00-00

Unavailable

29

BRACKET, REFLECTOR 1

4S8-85112-00-00

Unavailable

30

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

31

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
