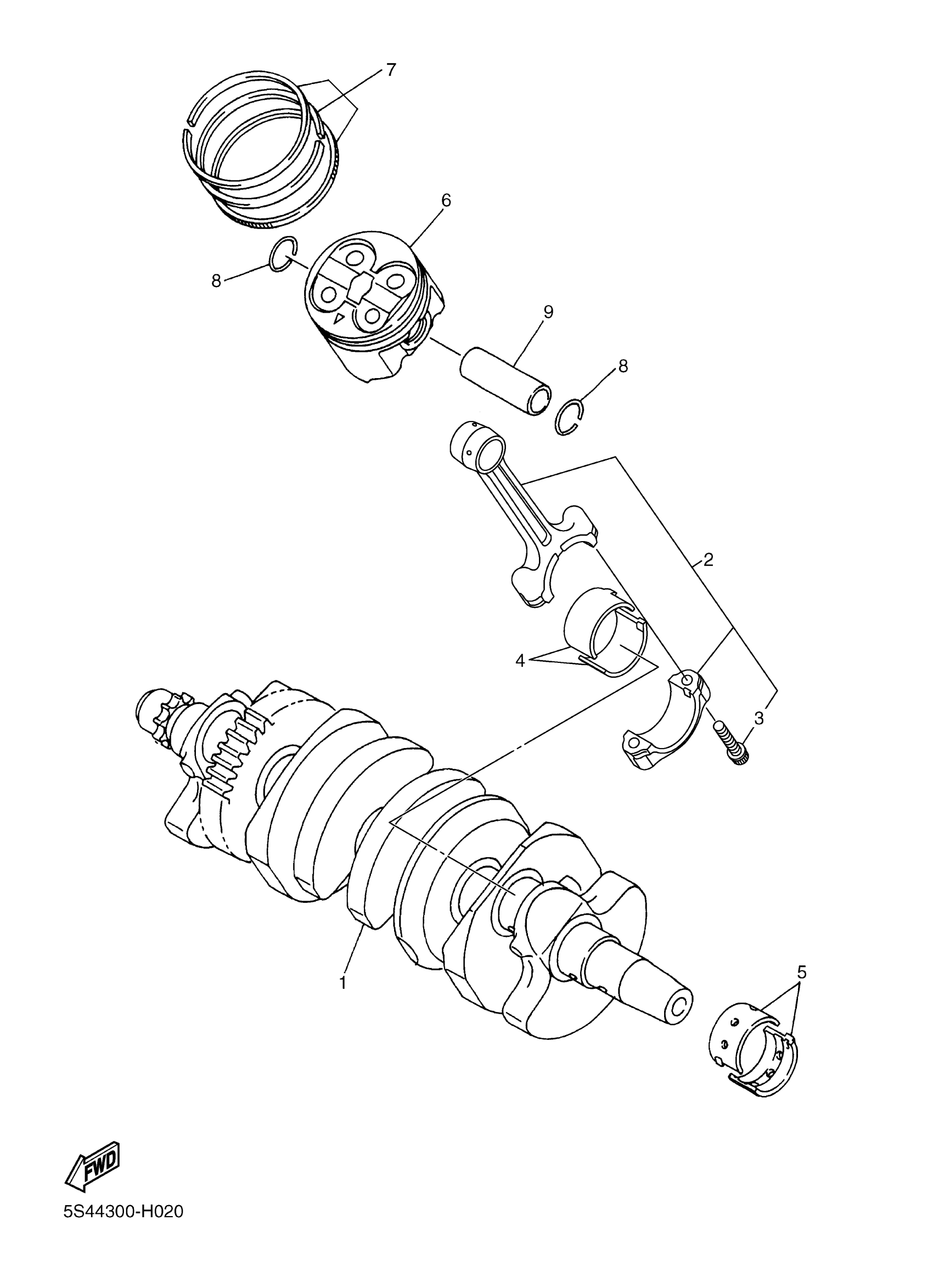

Yamaha FZS6YL (FZ6) 4S8D0 2009 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

5SL-11411-00-00

Unavailable

2

CONNECTING ROD ASSY

5VX-11650-00-00

$127.99

3

BOLT, CONNECTING ROD

5VX-11654-00-00

Unavailable

4

PLANE BEARING, CONNECTING ROD

5VX-11656-00-00

$27.99

4

PLANE BEARING, CONNECTING ROD

5VX-11656-10-00

$20.99

4

PLANE BEARING, CONNECTING ROD

5VX-11656-20-00

$20.99

4

PLANE BEARING, CONNECTING ROD

5VX-11656-30-00

$20.99

5

PLANE BEARING, CRANKSHAFT 1

5EB-11416-00-00

$28.99

5

PLANE BEARING, CRANKSHAFT 1

5EB-11416-10-00

$28.99

5

PLANE BEARING, CRANKSHAFT 1

5EB-11416-20-00

$28.99

5

PLANE BEARING, CRANKSHAFT 1

5EB-11416-30-00

$28.99

5

PLANE BEARING, CRANKSHAFT 1

5EB-11416-A0-00

Unavailable

6

PISTON (STD)

5SL-11631-00-00

$129.99

7

PISTON RING SET (STD)

5SL-11603-00-00

$71.99

8

CIRCLIP(1AR)

93450-17129-00

$4.14

9

PIN, PISTON

5EB-11633-00-00

Unavailable
