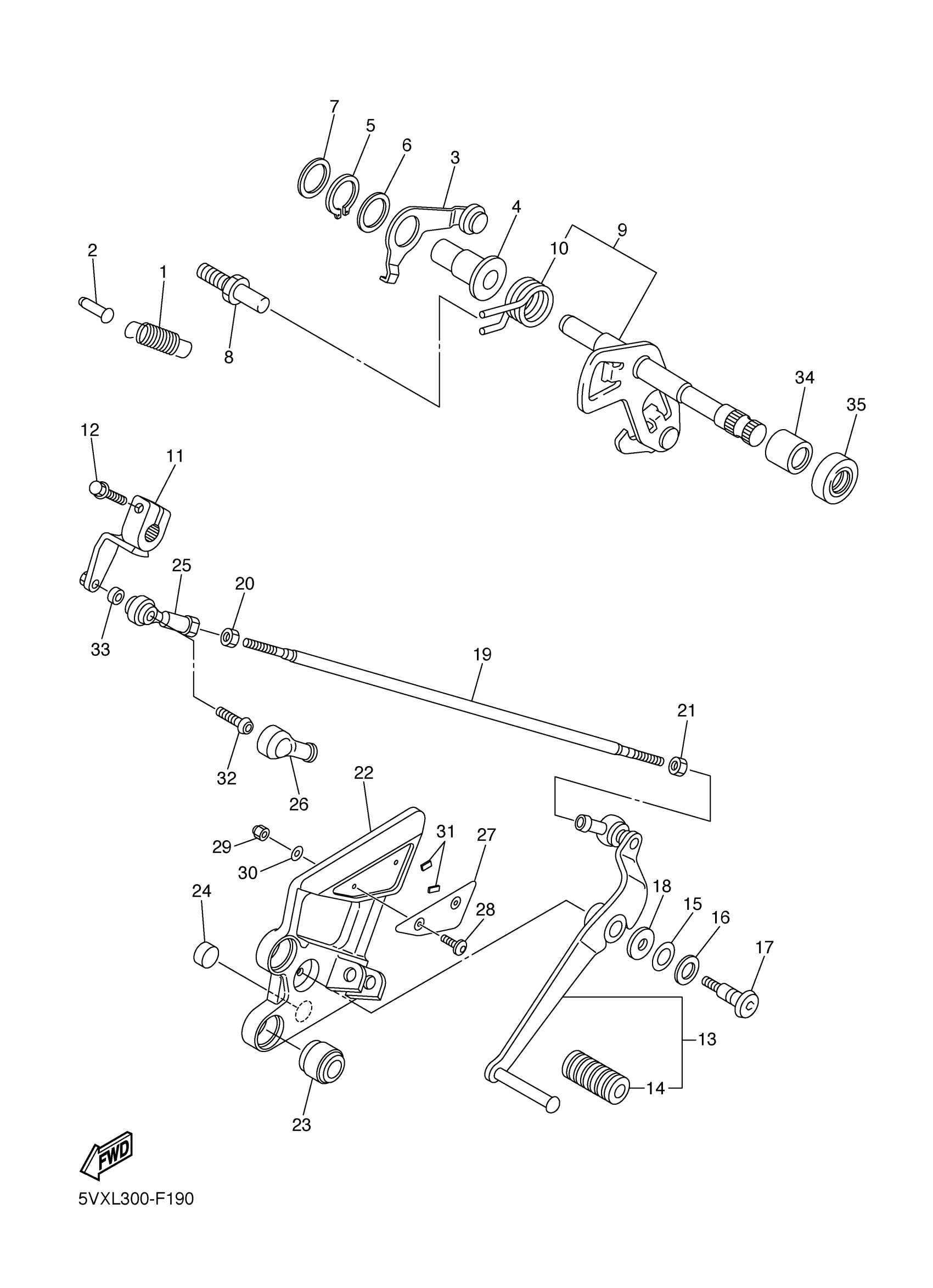

Yamaha FZS6XL (FZ6) 4S880 2008 SHIFT SHAFT Diagram

#

Description
Price

1

SPRING, TENSION

90506-14003-00

$8.49

2

HOOK, SPRING

132-16346-00-00

$9.99

3

STOPPER LEVER ASSY

5VX-18140-00-00

Unavailable

4

COLLAR(3MA)

90387-127V3-00

Unavailable

5

CIRCLIP(1EY)

99009-17400-00

$4.73

6

WASHER, PLATE (30X)

90201-177G4-00

$9.49

7

WASHER, PLATE (4L0)

90201-154E8-00

$8.49

8

STOPPER, SCREW

5VK-18127-00-00

Unavailable

9

SHIFT SHAFT ASSY

5VX-18101-12-00

$58.99

10

SPRING, TORSION

90508-295B2-00

$9.49

11

ARM, SHIFT

5VX-18112-01-00

Unavailable

12

BOLT, FLANGE

95814-06020-00

$8.49

13

SHIFT PEDAL ASSY

5VX-18110-00-00

$111.99

14

COVER, SHIFT PEDAL

5EB-18113-00-00

$7.99

15

WASHER, PLATE

90201-12013-00

$9.49

16

WASHER, WAVE (17W)

90206-12074-00

Unavailable

17

BOLT

4BP-27434-11-00

Unavailable

18

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

19

ROD, SHIFT

5VX-18115-02-00

Unavailable

20

NUT (2H9)

90170-06228-00

Unavailable

21

NUT(650)

95380-06700-00

Unavailable

22

BRACKET 2

5VX-27442-10-00

Unavailable

23

DAMPER, FOOTREST 2

5VX-27424-00-00

Unavailable

24

STOPPER, MAIN STAND

5VX-27114-00-00

Unavailable

25

JOINT, ROD 1

5VX-18116-00-00

Unavailable

26

COVER, DUST

5VX-18154-00-00

Unavailable

27

PLATE 1

4S8-27445-00-00

Unavailable

28

BOLT, BUTTON HEAD

92014-05012-00

Unavailable

29

NUT, U

95617-05100-00

Unavailable

30

. WASHER, PLAIN

92990-05200-00

Unavailable

31

PLATE, FOOTREST

4S8-27415-00-00

Unavailable

32

BOLT, BUTTON

92017-06020-00

Unavailable

33

COLLAR

90387-06106-00

Unavailable

34

BEARING

93317-11295-00

Unavailable

35

OIL SEAL (12X22X5-371)

93102-12106-00

Unavailable
