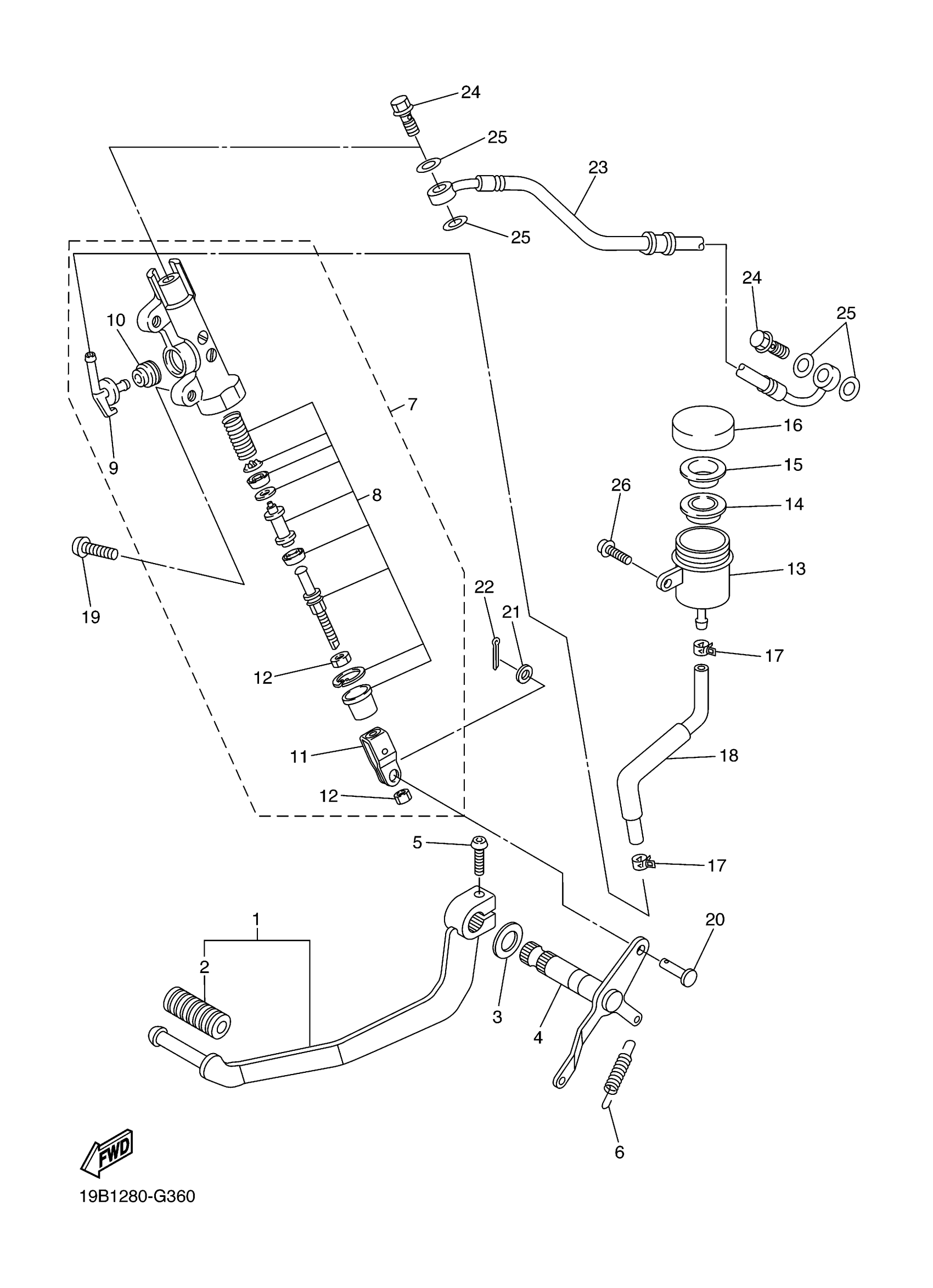

Yamaha FZS6XL (FZ6) 4S880 2008 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

5VX-27200-00-00

$101.99

2

COVER, SHIFT PEDAL

5EB-18113-00-00

$7.99

3

WASHER PLATE 148272190000

90201-14215-00

$10.49

4

SHAFT, BRAKE PEDAL

5VX-27212-00-00

Unavailable

5

BOLT, BUTTON HEAD

92014-06020-00

$9.49

6

SPRING (3R5)

90506-20223-00

$12.49

7

RR. MASTER CYLINDER ASSY.

2D1-2583V-00-00

Unavailable

8

CYLINDER KIT, MASTER

5VX-W0042-51-00

$85.99

9

JOINT

2D1-2582A-01-00

$5.49

10

O-RING

4BP-2585F-01-00

Unavailable

11

JOINT

4BP-27222-02-00

$29.99

12

NUT

90170-08010-00

$8.49

13

TANK, RESERVOIR

4P5-25894-00-00

Unavailable

14

DIAPHRAGM, RESERVOIR

5SL-25854-00-00

$20.99

15

BUSH,DIAPHRAGM

5SL-25855-00-00

$7.99

16

CAP, RESERVOIR

5SL-25852-00-00

Unavailable

17

CLIP

90467-120A3-00

Unavailable

18

HOSE, RESERVOIR

4S8-25895-00-00

Unavailable

19

BOLT, BUTTON

92014-08020-00

Unavailable

20

PIN, CLEVIS(2YK)

90240-08124-00

Unavailable

21

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

22

PIN, COTTER (648)

91490-20015-00

Unavailable

23

HOSE, BRAKE 5

5VX-2581K-01-00

Unavailable

24

BOLT, UNION

90401-10020-00

Unavailable

25

GASKET

90430-10005-00

Unavailable

26

BOLT, WITH WASHER

90119-06242-00

Unavailable
