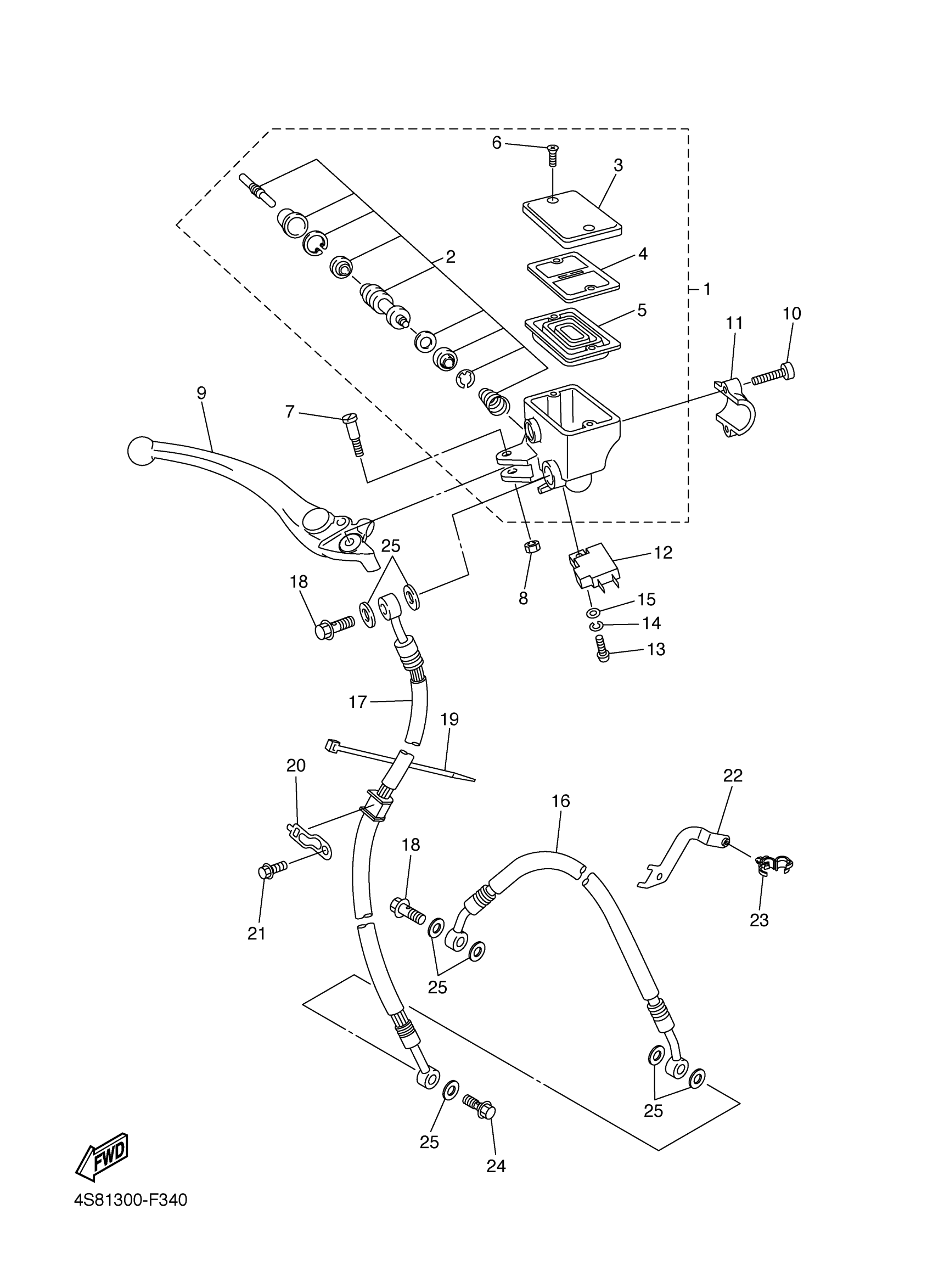

Yamaha FZS6XL (FZ6) 4S880 2008 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5VS-W2587-00-00

Unavailable

2

CYLINDER KIT, MASTER

2D1-25807-00-00

$69.99

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$16.49

5

GASKET, DIAPHRAGM

20S-25854-00-00

$28.99

6

SCREW

5VS-2589H-00-00

$4.11

7

BOLT, LEVER

5VS-2589F-00-00

$14.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

LEVER 2

5VS-83922-00-00

$85.99

10

BOLT

5VS-26332-00-00

$4.42

11

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$36.99

12

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

WASHER, PLAIN (646)

92990-04600-00

$5.99

16

HOSE, BRAKE 1

4S8-25872-00-00

Unavailable

17

HOSE, BRAKE 2

4S8-25873-00-00

Unavailable

18

BOLT, UNION

90401-10020-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

HOLDER, BRAKE HOSE 2

5SL-25876-00-00

Unavailable

21

BOLT, FLANGE

95817-06010-00

Unavailable

22

HOLDER, BRAKE HOSE 1

4S8-25875-00-00

Unavailable

23

CLAMP

90464-18002-00

Unavailable

24

BOLT, UNION

90401-10038-00

Unavailable

25

GASKET

90430-10005-00

Unavailable
