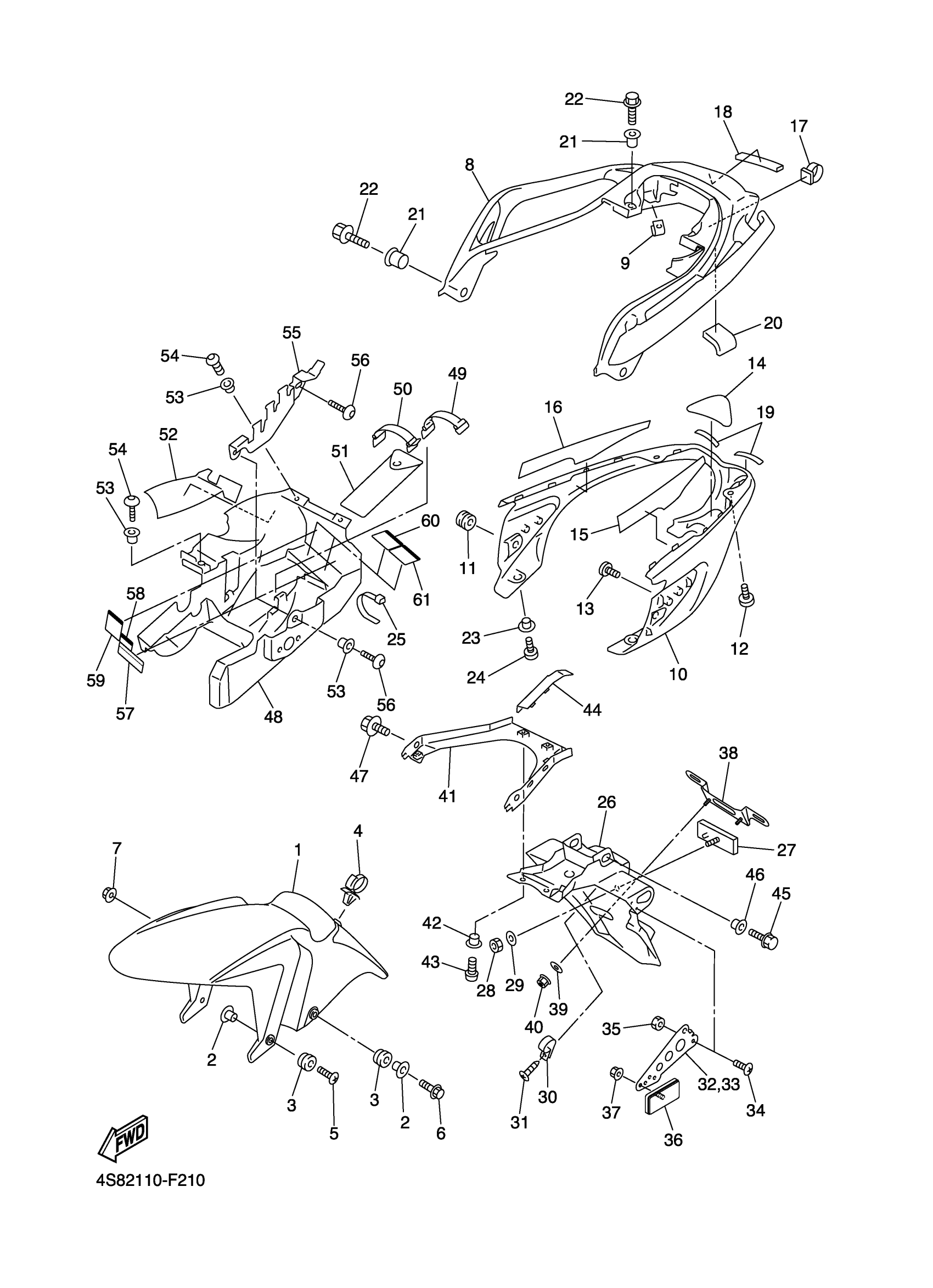

Yamaha FZS6XL (FZ6) 4S880 2008 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4S8-21511-00-P0

Unavailable

1

FENDER, FRONT (DARK PURPLISH BLUE METALLIC U)

4S8-21511-00-P7

Unavailable

2

COLLAR

90387-06159-00

$8.49

3

GROMMET(53Y)

90480-12072-00

$8.49

4

CLAMP

90464-18002-00

$8.49

5

SCREW, BINDING(3XV)

90154-06061-00

$8.49

6

BOLT

90109-06031-00

Unavailable

7

NUT (21W)

90179-06403-00

Unavailable

8

HANDLE, SEAT

5VX-24773-00-P6

Unavailable

8

HANDLE, SEAT

5VX-24773-00-PA

Unavailable

9

NUT, SPRING(3GM)

90183-05061-00

$5.60

10

COVER, REAR FENDER

5VX-21651-00-00

Unavailable

11

GROMMET

90480-13014-00

$8.49

12

SCREW, BINDING

98907-05012-00

$8.49

13

SCREW, TRUSS TAP.

97707-50012-00

$4.63

14

SEAL

5VX-21669-00-00

Unavailable

15

SEAL 1

5VX-21732-00-00

Unavailable

16

SEAL 2

5VX-21735-01-00

Unavailable

17

CLAMP

90464-14002-00

Unavailable

18

DAMPER

5VX-88158-00-00

Unavailable

19

DAMPER 2

5VX-21639-00-00

Unavailable

20

DAMPER 1

31A-28217-00-00

Unavailable

21

COLLAR

90387-09012-00

Unavailable

22

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

23

COLLAR

90387-06107-00

Unavailable

24

SCREW, BINDING

98907-06012-00

Unavailable

25

BAND

1UA-82591-00-00

Unavailable

26

FLAP

5VX-21621-10-00

Unavailable

27

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

28

NUT, U

95617-05100-00

Unavailable

29

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

30

CLAMP (712)

90464-18029-00

Unavailable

31

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

32

STAY 3

5VX-2164H-00-00

Unavailable

33

STAY 4

5VX-2164J-00-00

Unavailable

34

SCREW, ROUND HEAD(4KM)

90150-04041-00

Unavailable

35

NUT, U (7LY)

95617-04100-00

Unavailable

36

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

37

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

38

BRACKET, LICENSE

5MT-84751-00-00

Unavailable

39

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

40

NUT, SELF-LOCKING

95617-06100-00

Unavailable

41

BRACKET 6

5VX-2161G-00-00

Unavailable

42

COLLAR

90387-06107-00

Unavailable

43

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

44

GUIDE, MUD GUARD

5VX-21665-00-00

Unavailable

45

BOLT, FLANGE

95817-06016-00

Unavailable

46

COLLAR

90387-06075-00

Unavailable

47

BOLT, FLANGE

95817-08012-00

Unavailable

48

GUARD, MUD

5VX-21629-00-00

Unavailable

49

BAND, BATTERY

3TJ-82131-00-00

Unavailable

50

BAND, BATTERY

26L-82131-00-00

Unavailable

51

TOOL KIT

5VX-28100-00-00

Unavailable

52

SEAL 4

5VX-2173N-01-00

Unavailable

53

COLLAR

90387-06107-00

Unavailable

54

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

55

STAY 1

5VX-2164F-00-00

Unavailable

56

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

57

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

58

LABEL, CAUTION

3TB-24877-A1-00

Unavailable

59

PLATE, ROUTING 2

5SL-21686-00-00

Unavailable

60

PLATE, ROUTING

5VX-21684-00-00

Unavailable

61

LABEL

5VX-2178A-00-00

Unavailable
