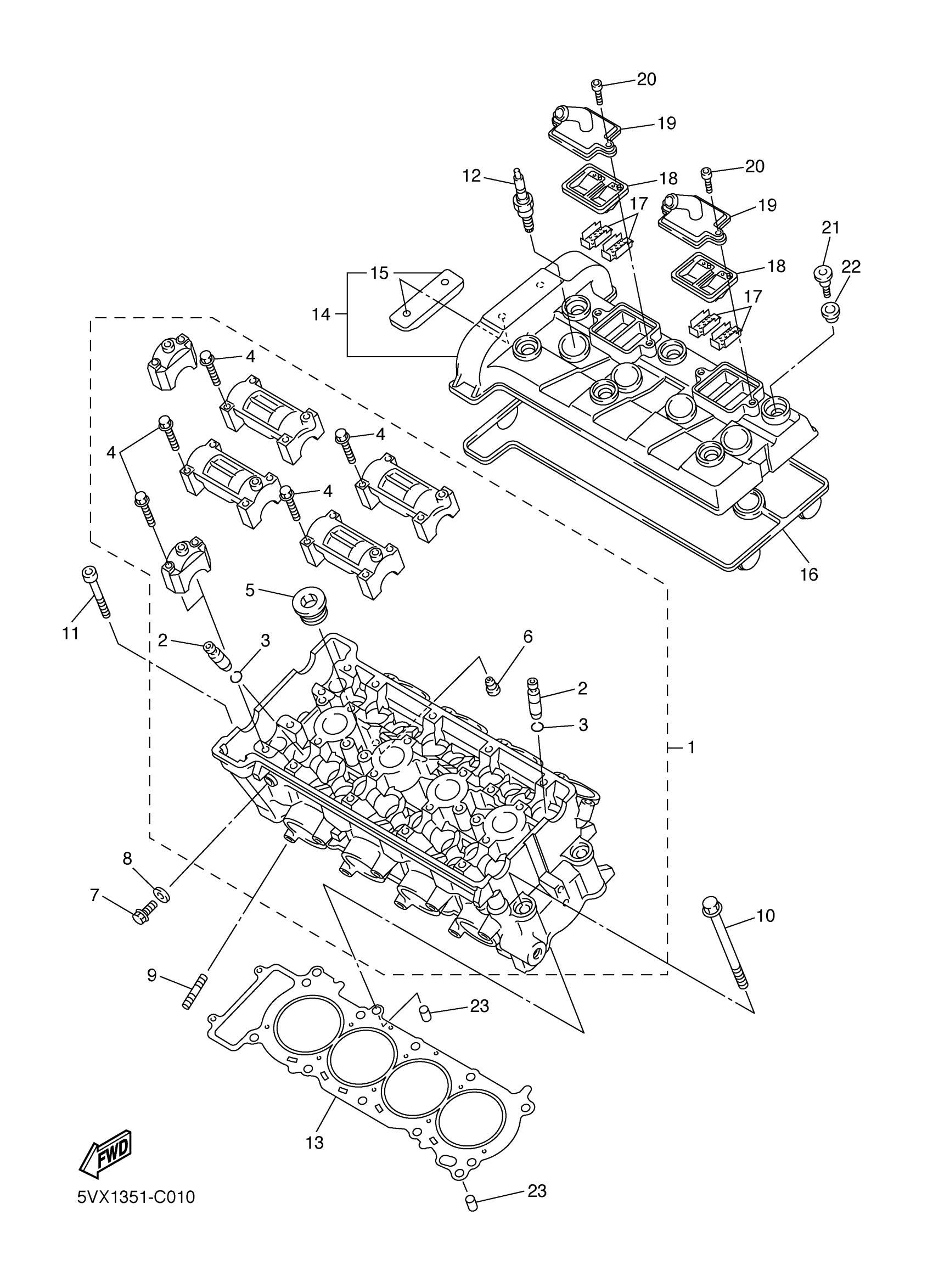

Yamaha FZS6XL (FZ6) 4S880 2008 CYLINDER Diagram

CYLINDER HEAD ASSY

1B3-11101-01-00

Unavailable

GUIDE, INTAKE VALVE

5EB-11133-10-00

$45.99

CIRCLIP(1WG)

93440-10153-00

$2.39

BOLT, WASHER BASED

90105-06027-00

$7.49

PLUG, STRAIGHT SCREW (26H)

90340-20090-00

Unavailable

NOZZLE 1

11H-15138-00-00

Unavailable

BOLT, SMALL FLANGE

95027-08012-00

$9.49

GASKET

90430-08119-00

$6.62

BOLT, STUD 3

95617-08625-00

$8.49

BOLT, WITH WASHER

90119-10003-00

$13.49

BOLT, SOCKET

91314-06060-00

$8.49

CR9EK NGK SPLUG 10PK

CR9-EK000-00-00

Unavailable

GASKET, CYLINDER HEAD 1

5VX-11181-00-00

$98.99

COVER, CYLINDER HEAD 1

1B3-11191-00-00

Unavailable

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

GASKET, HEAD COVER 1

5SL-11193-00-00

Unavailable

PLATE

5SL-1482K-00-00

Unavailable

REED VALVE ASSY

5SL-14890-00-00

Unavailable

CAP, CASE

5SL-14899-00-00

Unavailable

BOLT,SOCKET

91317-06020-00

Unavailable

BOLT(4BP)

90109-066F0-00

Unavailable

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

Unavailable
