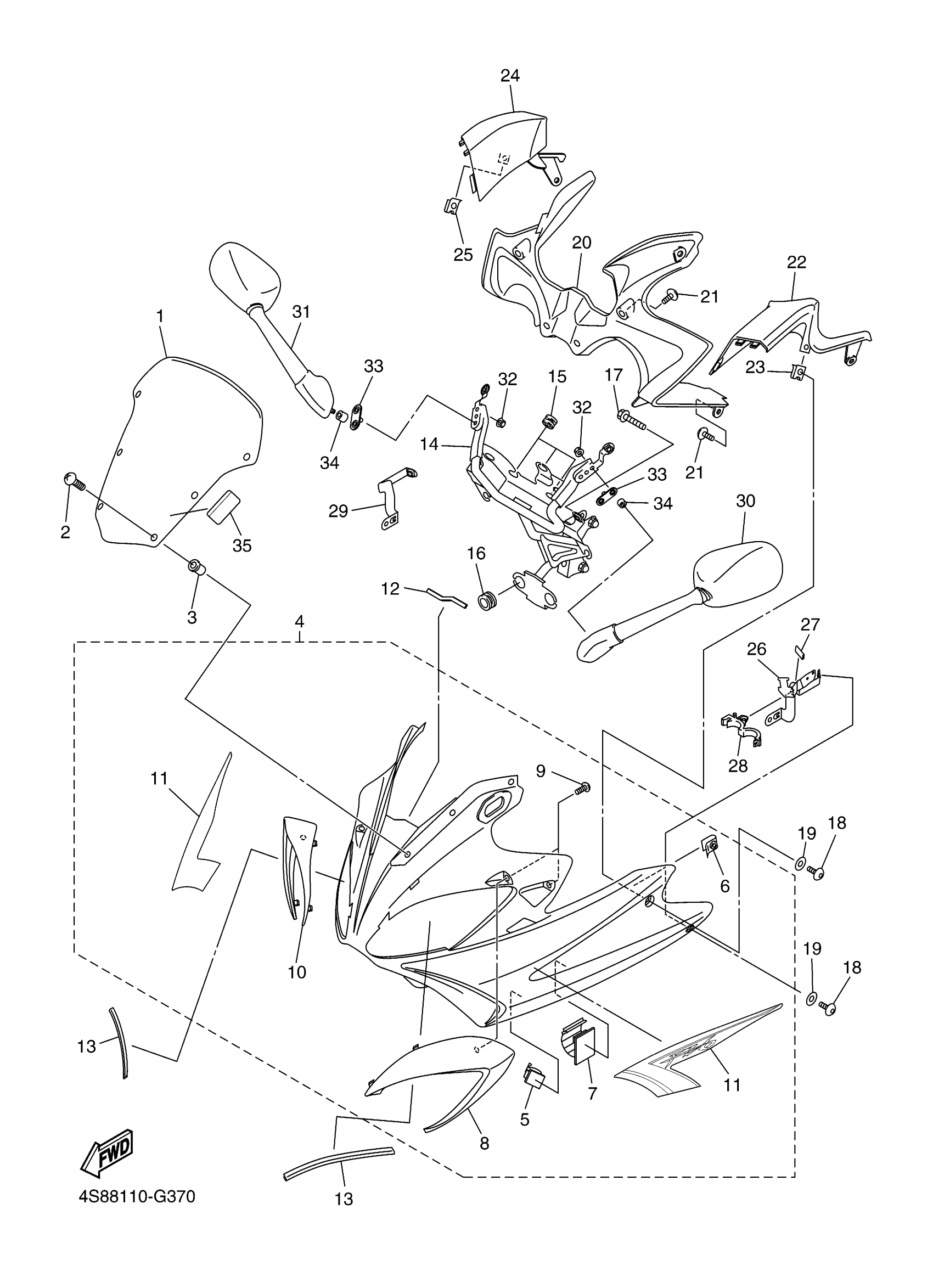

Yamaha FZS6XL (FZ6) 4S880 2008 COWLING 1 Diagram

#

Description
Price

1

WINDSHIELD

4S8-28381-10-00

Unavailable

2

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

3

NUT(1KT)

90179-05523-00

$8.49

4

BODY, FRONT UPPER 1

4S8-Y283G-J0-P0

Unavailable

4

BODY, FRONT UPPER 1 (DARK PURPLISH BLUE METALLIC U)

4S8-Y283G-K0-P4

Unavailable

5

CLAMP

90464-09009-00

$7.49

6

NUT, SPRING

90183-050A6-00

$8.49

7

CLAMP

90464-20021-00

$4.41

8

MOLE 1

4S8-28345-00-P3

Unavailable

9

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

10

MOLE 2

4S8-28346-00-P3

Unavailable

11

GRAPHIC SET

4S8-283B1-C0-00

Unavailable

11

. GRAPHIC SET (DARK PURPLISH BLUE METALLIC U)

4S8-283B1-D0-00

Unavailable

12

MOLE 3

4S8-28347-00-00

$7.99

13

TRIM

4S8-28376-00-00

$7.99

14

STAY 1

4S8-28356-00-00

Unavailable

15

DAMPER

3C3-83513-00-00

Unavailable

16

GROMET (3X3)

90480-14229-00

Unavailable

17

BOLT, WITH WASHER

90119-08081-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

19

WASHER, PLATE

90202-06170-00

Unavailable

20

PANEL, INNER 1

4S8-2836K-00-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

22

PANEL, INNER 2

4S8-2836L-00-00

Unavailable

23

NUT, SPRING(4ES)

90183-06069-00

Unavailable

24

PANEL, INNER 3

4S8-2836M-00-00

Unavailable

25

NUT, SPRING(4ES)

90183-06069-00

Unavailable

26

BRACKET 3

4S8-2836F-00-00

Unavailable

27

MOLE, SIDE COVER 1

1FK-2171L-00-00

Unavailable

28

CLAMP

90464-16006-00

Unavailable

29

BRACKET 2

4S8-2836E-00-00

Unavailable

30

REAR VIEW MIRROR ASSY (LEFT)

4S8-26280-00-00

Unavailable

31

REAR VIEW MIRROR ASSY (RIGHT)

4S8-26290-00-00

Unavailable

32

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

33

PLATE, MIRROR FITTING 1

5VY-26298-00-00

Unavailable

34

COLLAR

90387-06106-00

Unavailable

35

LABEL, CAUTION

5JW-2835Y-00-00

Unavailable
