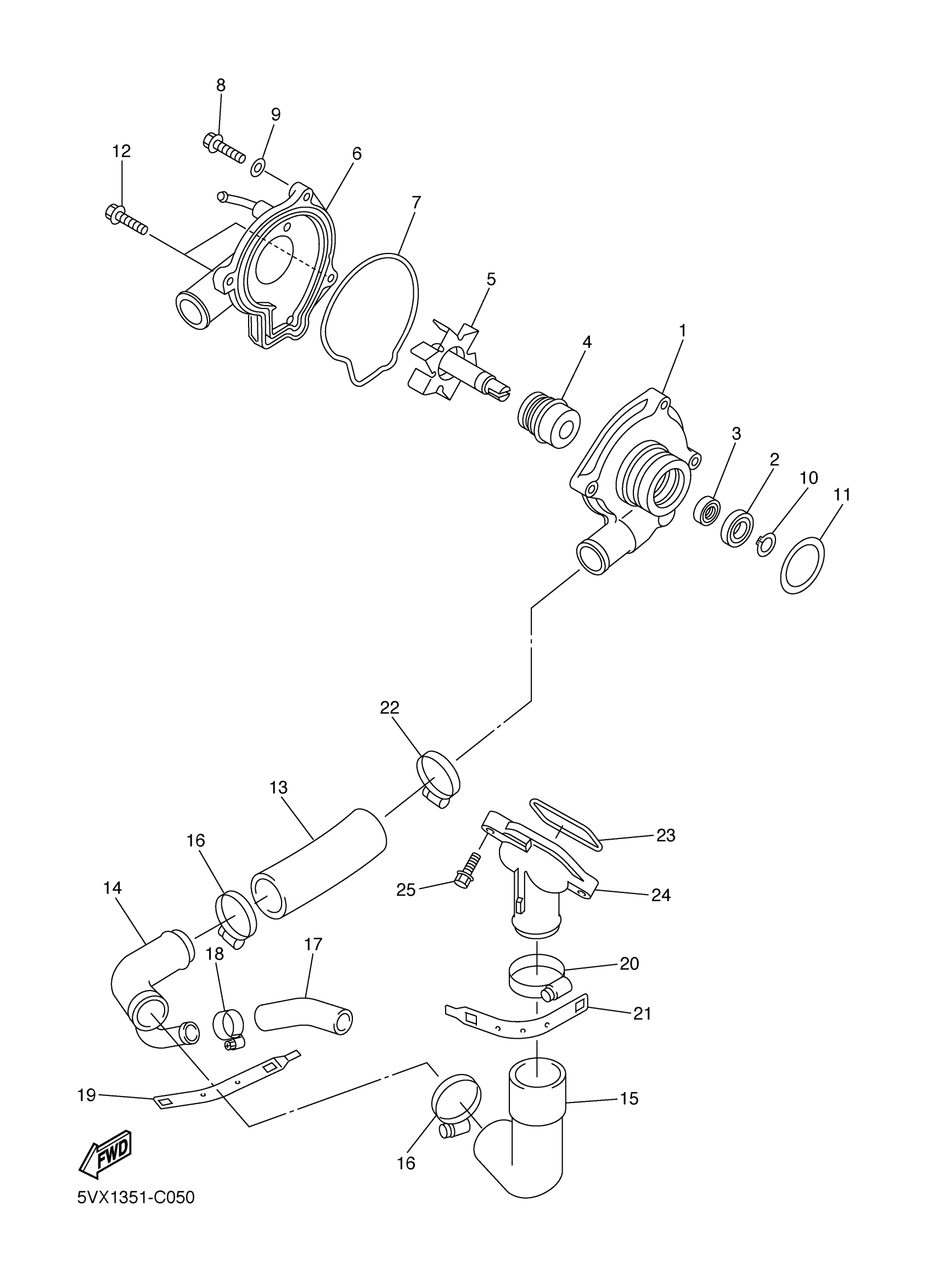

Yamaha FZS6WC (FZ6 CA) 4S83 2007 WATER PUMP Diagram

#

Description
Price

1

HOUSING, WATER PUMP

5VX-12421-00-00

Unavailable

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

3

OIL SEAL

93101-12173-00

$13.49

4

SEAL, MECHANICAL

11H-12438-10-00

$62.99

5

IMPELLER SHAFT ASSY

5EB-12450-00-00

$67.99

6

COVER, HOUSING

5SL-12422-00-00

$101.99

7

O-RING

5EB-12439-00-00

$17.49

8

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

9

GASKET 256113960000

90430-06014-00

Unavailable

10

CIRCLIP(10Y)

99009-12400-00

$3.59

11

O-RING (626)

93210-33133-00

$2.92

12

BOLT, SOCKET

91314-06040-00

$8.49

13

HOSE 4 (L105.6)

4NK-12579-00-00

Unavailable

14

JOINT, HOSE 1

20S-12581-01-00

$63.99

15

HOSE 2

5EB-12577-01-00

Unavailable

16

HOSE CLAMP ASSY

90450-35001-00

Unavailable

17

HOSE 5

5SL-12588-01-00

Unavailable

18

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

19

COVER 2

5GV-1246E-00-00

Unavailable

20

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

21

COVER 1

5GV-1246A-00-00

Unavailable

22

HOSE CLAMP ASSY

90450-32003-00

Unavailable

23

O-RING

93210-46001-00

Unavailable

24

JOINT 1

5EB-12469-00-00

Unavailable

25

BOLT, FLANGE(3DM)

95024-06020-00

$5.60
