Description

Price

1

DOUBLE SEAT ASSY

4S8-24730-00-00

Unavailable

2

SEAT COVER COMP.

4S8-2470F-00-00

Unavailable

3

NUT, U FLANGE

95604-06200-00

$8.49

4

STOPPER, MAIN STAND

371-27114-00-00

$7.99

5

BRACKET, SEAT

4NK-24728-00-00

$11.99

6

PLUG(1NL)

90338-07180-00

$7.49

7

. DAMPER, SEAT

5VX-24724-00-00

Unavailable

8

SEAT LOCK ASSY

4BP-24780-00-00

$97.99

9

PLATE

4BP-24792-00-00

Unavailable

10

NUT, FLANGE(4MV)

95707-06500-00

$1.23

11

CABLE, SEAT LOCK

5VX-2478E-00-00

$29.99

12

SEAT LOCK ASSY

3CK-W2470-00-00

$84.99

13

SCREW(4HM)

90149-06308-00

$8.49

14

STAY, LOCK

5PW-2117K-00-00

Unavailable

15

CLAMP

90464-16061-00

$8.49

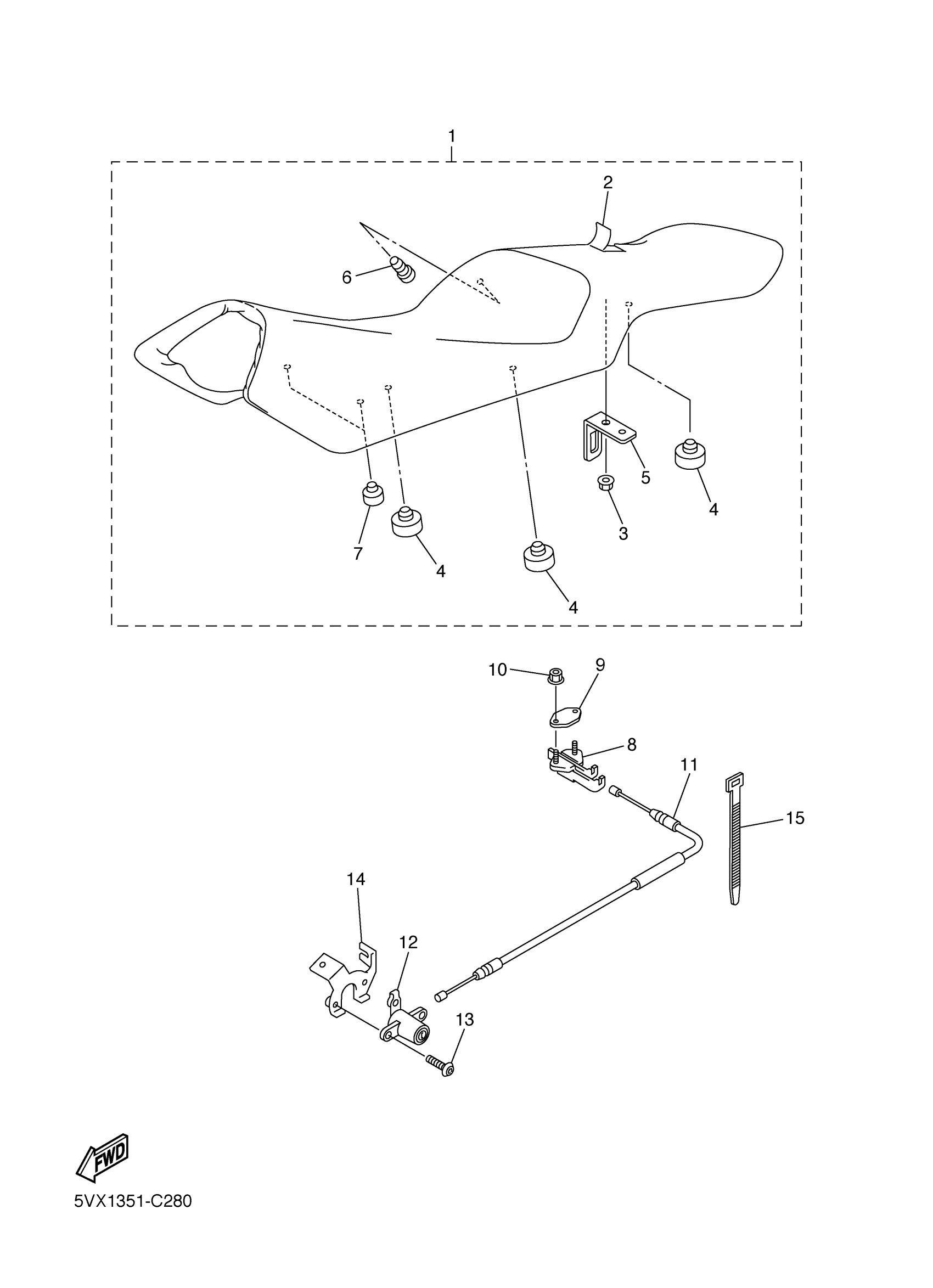

Yamaha FZS6WC (FZ6 CA) 4S83 2007 SEAT Diagram

DOUBLE SEAT ASSY

SEAT COVER COMP.

NUT, U FLANGE

STOPPER, MAIN STAND

BRACKET, SEAT

PLUG(1NL)

. DAMPER, SEAT

SEAT LOCK ASSY

PLATE

NUT, FLANGE(4MV)

CABLE, SEAT LOCK

SEAT LOCK ASSY

SCREW(4HM)

STAY, LOCK

CLAMP
