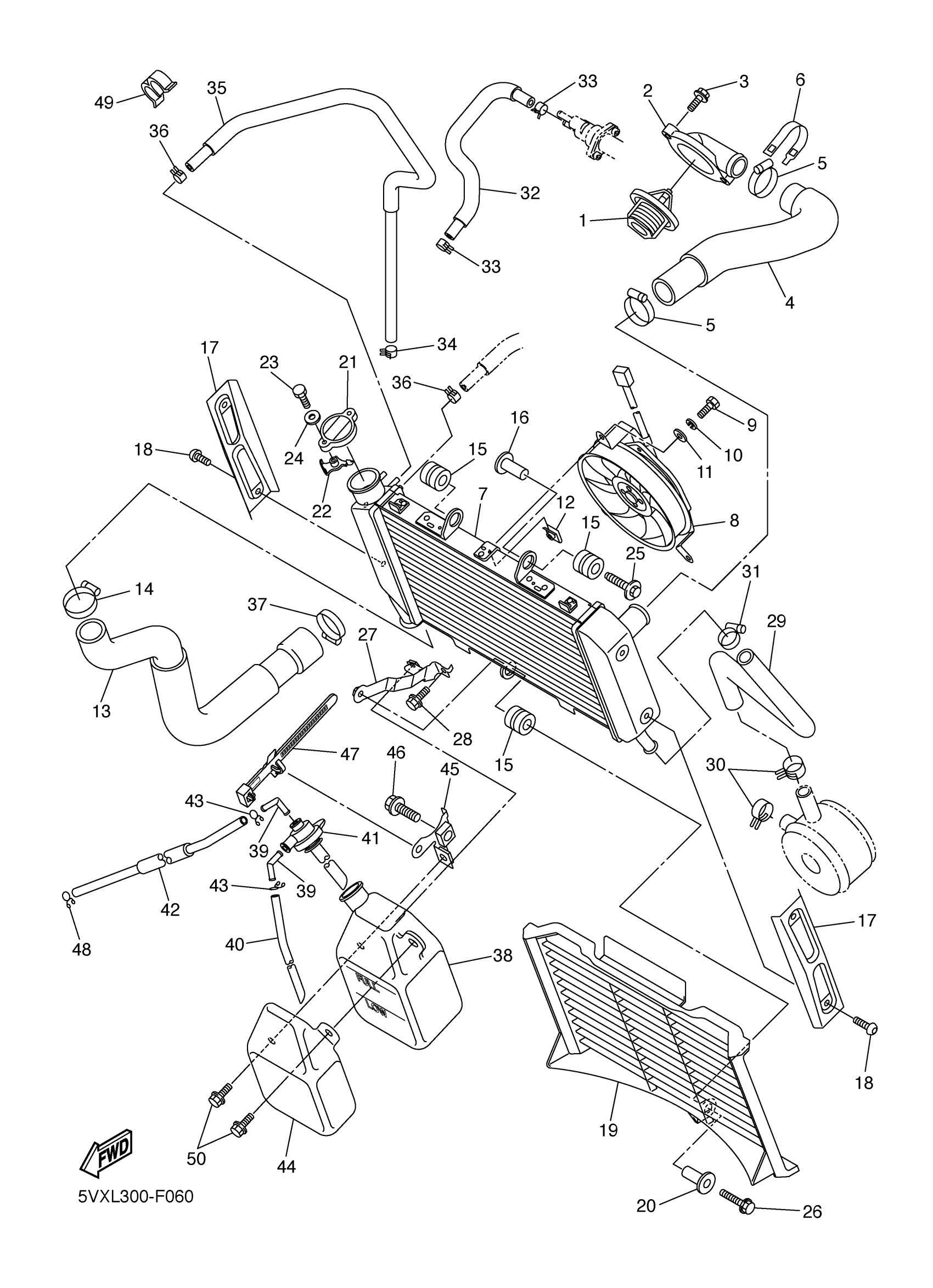

Yamaha FZS6WC (FZ6 CA) 4S83 2007 RADIATOR HOSE Diagram

#

Description
Price

1

THERMOSTAT ASSY

5SL-12410-01-00

$55.99

2

COVER, THERMOSTAT

5VX-12413-00-00

Unavailable

3

BOLT, FLANGE

95817-06020-00

$3.81

4

HOSE 3

4S8-12578-00-00

Unavailable

5

HOSE CLAMP ASSY

90450-35001-00

$5.60

6

COVER 2

5GV-1246E-00-00

$4.68

7

RADIATOR ASSY

4S8-12461-00-00

Unavailable

8

BLOWER ASSY

4S8-12405-00-00

Unavailable

9

BOLT, HEXAGON

97017-06012-00

$3.76

10

WASHER, SPRING

92907-06100-00

$4.25

11

WASHER(6TA)

92907-06600-00

$2.72

12

PLATE

1AA-12535-00-00

$14.49

13

HOSE 4

4S8-12579-00-00

Unavailable

14

HOSE CLAMP ASSY

90450-32003-00

$16.99

15

GROMMET (29L)

90480-15363-00

$8.49

16

COLLAR

90387-0614M-00

Unavailable

17

RADIATOR COVER ASSY1

5VX-1240J-00-00

Unavailable

18

BOLT

90111-06031-00

Unavailable

19

COVER, RADIATOR

4S8-12467-00-00

Unavailable

20

COLLAR (29U)

90387-066H4-00

Unavailable

21

CAP, RADIATOR

1B3-12462-00-00

Unavailable

22

STOPPER

5FC-12437-00-00

Unavailable

23

BOLT(4GV)

97017-05012-00

Unavailable

24

WASHER, PLAIN (646)

92990-05600-00

Unavailable

25

BOLT, WITH WASHER

90119-06038-00

Unavailable

26

BOLT, FLANGE

95814-06030-00

Unavailable

27

BRACKET 1

4S8-1244E-00-00

Unavailable

28

BOLT, FLANGE

95814-06012-00

Unavailable

29

HOSE 6

4S8-12589-00-00

Unavailable

30

CLIP

90467-200A0-00

Unavailable

31

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

32

HOSE 1

5VX-1243A-00-00

Unavailable

33

CLIP(3BM)

90467-10135-00

Unavailable

34

CLIP(3BM)

90467-10135-00

Unavailable

35

HOSE, 4

5VX-1244G-00-00

Unavailable

36

CLIP(3BM)

90467-10135-00

Unavailable

37

HOSE CLAMP ASSY

90450-32003-00

$16.99

38

TANK, RECOVERY

4P5-21871-00-00

Unavailable

39

ELBOW

26H-21828-00-00

Unavailable

40

HOSE (L340)

90445-08684-00

Unavailable

41

CAP

3P6-21875-00-00

Unavailable

42

HOSE (L880)

90445-08025-00

Unavailable

43

CLIP (16G)

90467-08021-00

Unavailable

44

COVER

4P5-2172W-00-00

Unavailable

45

BRACKET, RECOVERY TANK

4P5-21873-00-00

Unavailable

46

BOLT, FLANGE

95024-10020-00

Unavailable

47

CLAMP

90464-07012-00

Unavailable

48

CLIP (16G)

90467-08021-00

Unavailable

49

CLAMP(4TX)

90464-12238-00

Unavailable

50

BOLT, FLANGE

95817-06016-00

Unavailable
